Product Sub Family

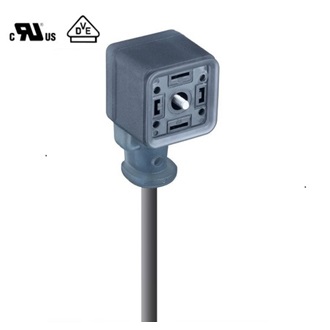

Cordset, single ended
Type of Contact / Gender
Number of Pins
Rated Impulse Voltage
4.0 kV (PCBA 2.0 kV)
110 V AC/DC
≤ 10 mOhm
˃ 10^9 Ohm
Ambient Temperature (Operation)*
-25 °C - +85 °C (With additional 934-887-001 gasket : -40 °C - +105 °C)
Protection Degree / IP Rating**
IP65, IP67 (IP69K: without additional gasket; max. +80 °C)
DIN EN 175301-803-A, ISO 4400
3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance
DIN EN 60664-1 (2008/01); VDE 0110-1
III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material
Contact Bearer Material
Contact Bearer Color
Flammability Class (Contact Bearer)
UL 94 V-0
Molded Body Material
Molded Body Color
Flammability Class (Molded Body)
UL 94 HB
Steel, Philips combi slot
Molded Integrated Gasket
Varistor with yellow LED
Fastening Torque (Attachment)
Number of Wires
Minimal Bending Radius (Fixed Inst)
˃ 5 x D
Minimal Bending Radius (Flexible Inst)
˃ 10 x D
Cable Jacket Material
Cable Jacket Color
Cable Diameter D
ø 5.5 ± 0.2 mm
Wire Insulation Material
Insulated Wire Diameter
ø 1.70 mm
Ambient Temperature (Fixed Installation)
- 40 °C - + 105 °C
Ambient Temperature (Flex Installation)
+5 °C - + 105 °C
Flammability Class (Cable Jacket)
DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2
free off lacquer wetting disturbing substances, good chemical and oil resistance, Exclusion of Silicone
Protection Degree / IP Rating Note
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Do not connect or disconnect under load.
