Product Number: GAN31LU-P1J-611

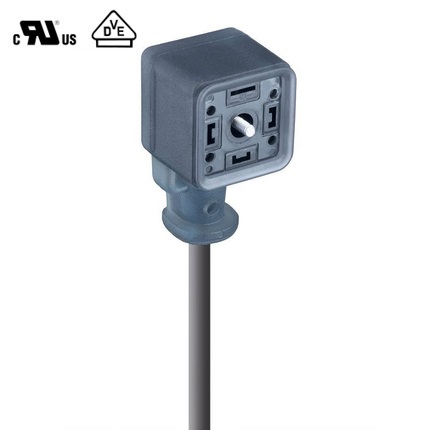

GAN - Molded Female Cordset, Form A, Contacts: 3+PE (PE at 12 o'clock), with RD-GN LEDs for pressure switch, 250 V | 10 A, IP67; PVC Grey, 5x0.75mm² (18AWG); cURus 2238

175301-803-A (DIN 436250-A): Single-Ended Female Cordset, Contacts: 3+PE (PE across cable outlet), with Red-Green LEDs for pressure switch, 250 V | 10 A, IP67; Cable: PVC Grey, IEC, 5x0.75mm² (18AWG); cURus 2238

  • Availability:
    Global
  • Global inventory:
    Available
GAN31LU-P1J-611
  • GAN31LU-P1J-611
1 of 1

Specifications

Report An Error

Availability

Active

Face View

Pin 1 Pin 2 Pin 3 Pin 4 PE
brown blue black grey green-yellow

Product Family

Valve Connectors

Product Sub Family

GAN - cURus 2238

Connector Type

Cordset, single ended

Type of Contact / Gender

Female

Connector Design

Angled

Number of Pins

3+PE (PE across cable outlet)

Coding

A

Shielding

Unshielded

Attachment Type

Central Screw

Rated Voltage

24 V

Rated Impulse Voltage

4.0 kV (PCBA 2.0 kV)

Operating Voltage

24 V AC/DC

Rated Current*

10 A

Contact Resistance

≤ 10 mOhm

Insulation Resistance

˃ 10^9 Ohm

Mating Cycles

≤ 50

Ambient Temperature (Operation)*

-25 °C - +85 °C [Extended Temperature -40 °C - +105 °C with additional gasket accessory, 934887001]

Protection Degree / IP Rating**

IP65, IP67*

Design Standard

DIN EN 175301-803-A, ISO 4400

Pollution Degree

3 acc. to DIN EN 60664-1 (VDE 0110-1)

Clearance / Creepage Distance

DIN EN 60664-1 (2008/01); VDE 0110-1

Overvoltage Category

III acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material

CuZn

Contact Plating

Cu/Sn

Contact Bearer Material

PA GF

Contact Bearer Color

black

Flammability Class (Contact Bearer)

UL 94 V-0

Molded Body Material

TPE

Molded Body Color

Grey translucent

Flammability Class (Molded Body)

UL 94 HB

Attachment Material

Steel, Philips combi slot

Gasket Material

Molded Integrated Gasket

Protection Circuitry

Dual red-green LEDs (pressure switch)

Function Indicator

Dual red-green LEDs (pressure switch)

Fastening Torque (Attachment)

(50-60) Ncm

Accessories to Order Separately

934887001 - GAN EPDM gasket and holding clip

Cable Number

611

Conductor Size

0.75 mm²

Number of Wires

5

Minimal Bending Radius (Fixed Inst)

˃ 4 x D

Minimal Bending Radius (Flexible Inst)

˃ 10 x D

Conductor material

Cu

Cable Jacket Material

PVC

Cable Jacket Color

grey RAL 7001

Cable Diameter D

ø 6.80 ± 0.20 mm

Wire Insulation Material

PVC

Ambient Temperature (Fixed Installation)

- 40 °C - + 90 °C

Ambient Temperature (Flex Installation)

- 5 °C - + 90 °C

Flammability Class (Cable Jacket)

IEC 60332-1, DIN VDE 0472 part 904 test method B

Cable Characteristics

2000/53/EG, 2011/65/EU, 2003/11/EG, 1907/2006/EG

UL-File

E315587

UL

UL 2238; cURus

VDE

yes

RoHS Compliant

yes

Halogenfree

no

Oil Resistance

extensively oil and petrol resistant according to VDE 0250 und 0472

Note Derating

Notice derating

Protection Degree / IP Rating Note

*IP Rating test performed by Belden with Belden Connectors only

Note

1. Do not connect or disconnect under load. 2. Extended temperature range of -40°C performed by Belden in mated condition using EPDM gasket accessory.

Note Derating

Notice derating

Protection Degree / IP Rating Note

*IP Rating test performed by Belden with Belden Connectors only

Note

1. Do not connect or disconnect under load. 2. Extended temperature range of -40°C performed by Belden in mated condition using EPDM gasket accessory.

Part Numbers

Item # Item Description Cable Length Replacement For
934889107 GAN31LU-P1J-6110200-1UC 2 m ID: 934562031 Name: GAN-DHEE7X-AK0200C1-XC607-AD
934889108 GAN31LU-P1J-6110500-1UC 5 m ID: 934562032 Name: GAN-DHEE7X-AK0500C1-XC607-AC
934889170 GAN31LU-P1J-6111000 10 m
