Product Sub Family
Type of Contact / Gender
Number of Pins
2+PE (PE across cable outlet)

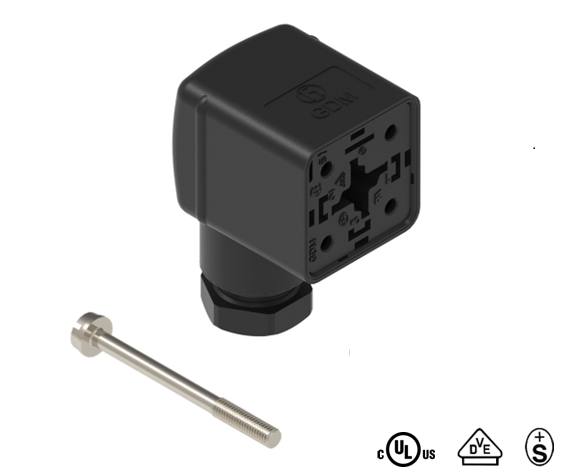

ID: 932107100 Name: GDM 2014 J
Rated Voltage (UL)
Rated Voltage (CSA)
Rated Impulse Voltage
230 V AC/DC
Rated Current (UL)*
Rated Current (CSA)*
≤ 10 mOhm
˃ 10^9 Ohm
Type of Connection
G1/2" (ISO 228) with strain relief
Conductor Cross Section
0.25 - 1.5 mm²
Ø 8 - 10 mm
Ambient Temperature (Operation)*
-40 °C - +125 °C
Operating Temperature (UL)
max. + 75 °C
Operating Temperature (CSA)
Protection Degree / IP Rating**
DIN EN 175301-803-A, ISO 4400
3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance
DIN EN 60664-1 (2008/01); VDE 0110-1
III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material
Contact Bearer Material
Contact Bearer Color
Flammability Class (Contact Bearer)
UL 94 HB
Flammability Class (Housing)
UL 94 5VA
Cable Gland Material
Cable Gland Gasket
Cable Gland Color
Steel, Philips combi slot
Fastening Torque (Contact Screw)
M3: (25-30) Ncm
Fastening Torque (Cable Gland)
Fastening Torque (Attachment)
UL 2238; cURus
Protection Degree / IP Rating Note
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Do not connect or disconnect under load.
