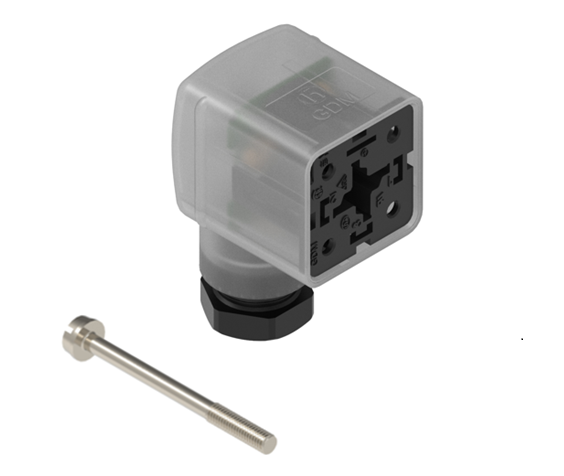

GDM Standard DIN Standard Field Attachable Connector: Form A, 3-pin (2+1PE; PE across cable outlet), transparent housing, screw type, M16; with yellow LED, 24 V AC/DC, 10 A
Regions Available: Global
|
Availability |
Active |
|---|---|
|
Product Family |
Valve Connectors |
|
Product Sub Family |
GDM Standard |
|
Connector Type |
Field attachable |
|
Type of Contact / Gender |
Female |
|
Connector Design |
Angled |
|
Number of Pins |
2+PE (PE across cable outlet) |
|
Coding |
A |
|
Shielding |
Unshielded |
|
Attachment Type |
Central Screw |
|
Replacement for |
ID: 934412003 Name: GDML 2016 LED 24 grau ( Yellow LED instead of Red LED) |
|
Rated Voltage |
24 V |
|
Rated Impulse Voltage |
4.0 kV (PCBA 2.0 kV) |
|
Operating Voltage |
24 V AC/DC |
|
Rated Current* |
10 A |
|
Contact Resistance |
≤ 10 mOhm |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Mating Cycles |
≤ 50 |
|
Type of Connection |
Screw |
|
Cable Gland |
M16 |
|
Conductor Cross Section |
0.25 - 1.5 mm² |
|
Suitable Cables |
Ø 4.5 - 9 mm |
|
Ambient Temperature (Operation)* |
-25°C to +80°C |
|
Protection Degree / IP Rating** |
IP65 |
|
Design Standard |
DIN EN 175301-803-A, ISO 4400 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Clearance / Creepage Distance |
DIN EN 60664-1 (2008/01); VDE 0110-1 |
|
Overvoltage Category |
III acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material |
CuZn |
|---|---|
|
Contact Plating |
Cu/Sn |
|
Contact Bearer Material |
PA GF |
|
Contact Bearer Color |
Black |
|
Flammability Class (Contact Bearer) |
UL 94 HB |
|
Housing Material |
PA GF |
|
Housing Color |
Translucent |
|
Flammability Class (Housing) |
UL 94 HB |
|
Cable Gland Material |
PA GF |
|
Cable Gland Gasket |
NBR |
|
Cable Gland Color |
Black |
|
Attachment Material |
Steel, Philips combi slot |
|
Gasket Material |
Sold separately |
|
Protection Circuitry |
Yellow LED |
|---|---|
|
Function Indicator |
Yellow LED |
|
Fastening Torque (Contact Screw) |
(40-50) Ncm for conductor size 0.5 - 1.5 mm²; (30-40) Ncm for conductor size 0.34 mm²; (25-30) Ncm for conductor size 0.25 mm² |
|
Fastening Torque (Cable Gland) |
(250-375) Ncm |
|
Fastening Torque (Attachment) |
(50-60) Ncm |
|
VDE |
Yes |
|---|---|
|
SEV |
Yes |
|
RoHS Compliant |
Yes |
|---|
|
Note Derating |
Notice derating |
|---|---|
|
Protection Degree / IP Rating Note |
Protection Degree and IP Rating per test standard IEC 60529 using a Hirschmann / Lumberg Automation mating product |
|
Note |
Do not connect or disconnect under load. |
| Item # | Item Description | Central Screw | Gasket | Packaging | Replacement For |
|---|---|---|---|---|---|
| 934888017 | GDM21F6-L14-10D | 1- Steel Screw, Combi Head | 0 - Sold Separately | D - Collect packaging 50 pieces, assembled | ID: 934413002 Name: GDML 2016 LED 24 YE bk |
