Product Sub Family
Type of Contact / Gender
Number of Pins
2+PE (PE across cable outlet)

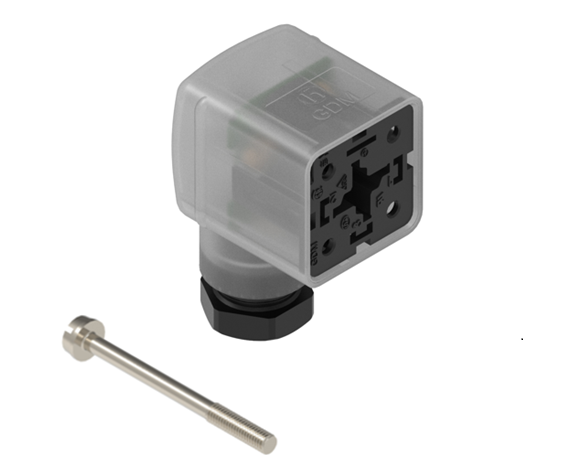

ID: 934420002 Name: GDML 2016 LED 48 VR schwarz ( Yellow LED instead of Red LED)
Rated Impulse Voltage
4.0 kV (PCBA 2.0 kV)
48 V AC/DC
≤ 10 mOhm
˃ 10^9 Ohm
Type of Connection
Conductor Cross Section
0.25 - 1.5 mm²
Ø 4.5 - 10 mm
Ambient Temperature (Operation)*
-25°C to +80°C
Protection Degree / IP Rating**
DIN EN 175301-803-A, ISO 4400
3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance
DIN EN 60664-1 (2008/01); VDE 0110-1
III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material
Contact Bearer Material
Contact Bearer Color
Flammability Class (Contact Bearer)
UL 94 HB
Flammability Class (Housing)
Cable Gland Material
Cable Gland Gasket
Cable Gland Color
Steel, Philips combi slot
Varistor with yellow LED
100 V ± 10%
Fastening Torque (Contact Screw)
M3: (25-30) Ncm
Fastening Torque (Cable Gland)
Fastening Torque (Attachment)
Protection Degree / IP Rating Note
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Do not connect or disconnect under load.
