Product Sub Family
Type of Contact / Gender
Number of Pins
3+PE (PE across cable outlet)

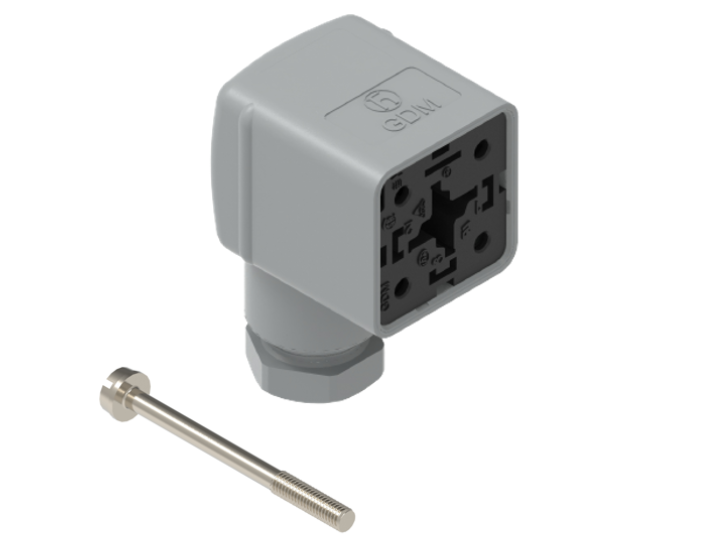

ID: 934395106 Name: GDM 3016 grau
Rated Impulse Voltage
230 V AC/DC
≤ 10 mOhm
˃ 10^9 Ohm
Type of Connection
Conductor Cross Section
0.25 - 1.5 mm²
Ø 4.5 - 10 mm
Ambient Temperature (Operation)*
-40 °C - +125 °C
Protection Degree / IP Rating**
DIN EN 175301-803-A, ISO 4400
3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance
DIN EN 60664-1 (2008/01); VDE 0110-1
III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material
Contact Bearer Material
Contact Bearer Color
Flammability Class (Contact Bearer)
UL 94 HB
Flammability Class (Housing)
Cable Gland Material
Cable Gland Gasket
Cable Gland Color
Steel, Philips combi slot
Fastening Torque (Contact Screw)
M3: (25-30) Ncm
Fastening Torque (Cable Gland)
Fastening Torque (Attachment)
Protection Degree / IP Rating Note
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Do not connect or disconnect under load.
