Product Sub Family

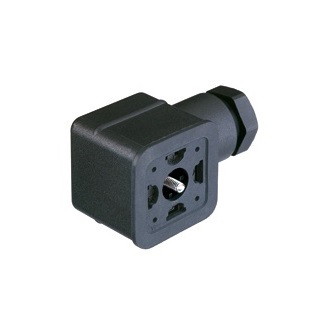

GDMF Flat Line
Type of Contact / Gender
Number of Pins
3+PE (PE across cable outlet)
Rated Impulse Voltage
230 V AC/DC
≤ 10 mOhm
˃ 10^9 Ohm
Type of Connection
Conductor Cross Section
0.25 - 1.5 mm²
Ø 4 - 8 mm
Ambient Temperature (Operation)*
-40 °C - +125 °C
Protection Degree / IP Rating**
DIN EN 175301-803-A, ISO 4400
3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance
DIN EN 60664-1 (2008/01); VDE 0110-1
III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material
Contact Bearer Material
Contact Bearer Color
Flammability Class (Contact Bearer)
UL 94 V-0
Flammability Class (Housing)
UL 94 HB
Cable Gland Material
Cable Gland Gasket
Cable Gland Color
Steel, Philips combi slot
Fastening Torque (Contact Screw)
M3: (25-30) Ncm
Fastening Torque (Cable Gland)
Fastening Torque (Attachment)
Protection Degree / IP Rating Note
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Do not connect or disconnect under load.
