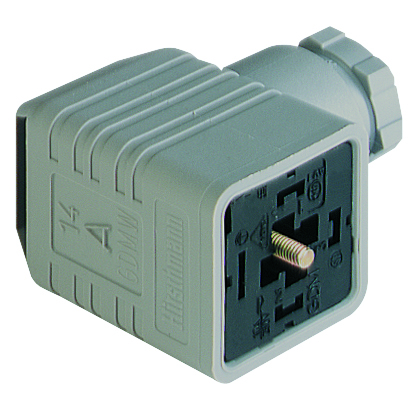

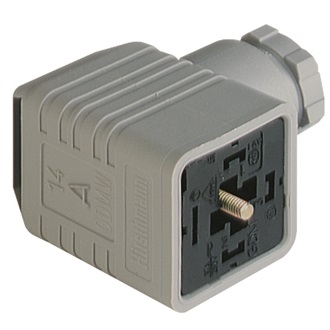

Valve Connectors - GDMW 3011 CF grey

GDMW High-Voltage Line DIN Standard Field Attachable Connector: Form A, 4-pin (3+1PE; PE across cable outlet), grey housing, screw type, PG11; without circuitry, 400 V AC/DC, 16 A

Availability:

Global
Status:

Active

Quote

Specifications
Part Numbers
Resources

Specifications

Expand All

Face View

Product Life Cycle

Product Family	Valve Connectors
Side 1 Product Sub Family	GDMW High-Voltage Line
Connector Type	Field attachable
Side 1 Type of Contact/Gender	Female
Connector Design	Angled
Number of Pins	3+PE (PE across cable outlet)
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	Central Screw
Rated Impulse Voltage	4.0 kV
Operating Voltage	400 V AC/DC
Current Rating	16 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 50
Type of Connection	Screw
Cable Gland	PG11
Cross Section	0.25 - 1.5 mm²
Suitable Cables	Ø 4.5 - 11 mm
Ambient Temperature (Operation)*	-40 °C - +125 °C
Protection Degree / IP Rating**	IP65
Design Standard	DIN EN 175301-803-A, ISO 4400
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material	CuZn
Side 1 Contact Plating	Cu/Sn
Contact Bearer Material	PA GF
Contact Bearer Color	black
Flammability Class (Contact Bearer)	UL 94 HB
Housing Material	PA GF
Housing Color	Grey
Flammability Class (Housing)	UL 94 HB
Cable Gland Material	PA GF
Cable Gland Gasket	NBR
Cable Gland Color	Grey
Attachment Material	Steel, Philips combi slot
Gasket Material	Sold separately

Circuitry

Protection Circuitry	No Circuitry
Fastening Torque (Contact Screw)	(50-60) Ncm
Fastening Torque (Cable Gland)	(150-200) Ncm
Fastening Torque (Attachment)	(50-60) Ncm

Approvals

VDE	yes
SEV	yes

Safety & Environmental Compliance

RoHS Compliant	yes

Notes

Note Derating	Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note	Do not connect or disconnect under load.

Information

Note Derating	Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note	Do not connect or disconnect under load.
