Product Sub Family

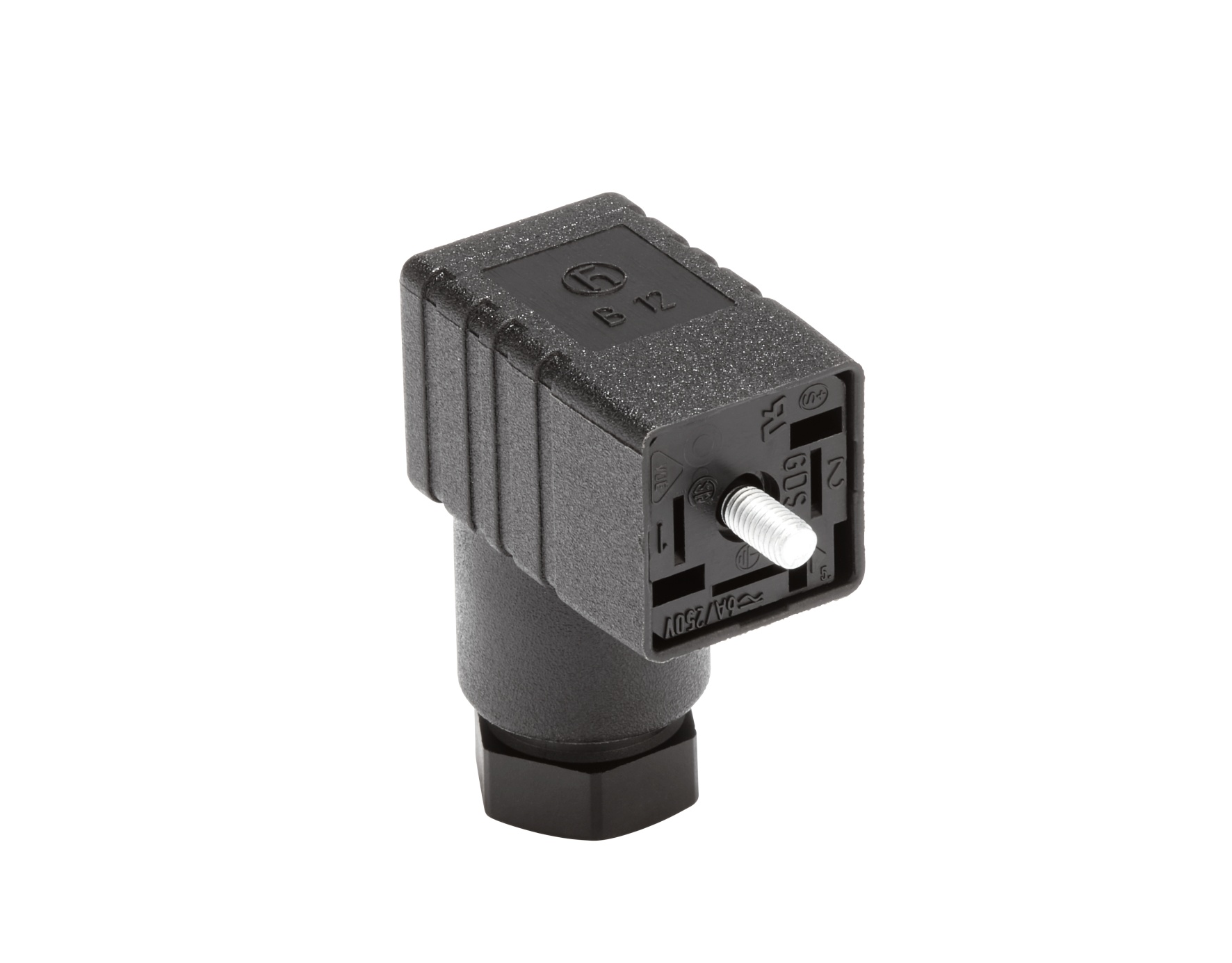

GDS Industrial Standard
Type of Contact / Gender
Number of Pins
3+PE (PE across cable outlet)
250 V AC/DC
Rated Voltage (UL)
Rated Voltage (CSA)
Rated Impulse Voltage
230 V AC/DC
Rated Current (UL)*
Rated Current (CSA)*
≤ 10 mOhm
˃ 10^9 Ohm
Type of Connection
Conductor Cross Section
0.25 - 0.75 mm²
Ø 4.5 - 6 mm
Ambient Temperature (Operation)*
-40 °C - +125 °C
Operating Temperature (UL)
max. + 65 °C
Operating Temperature (CSA)
Protection Degree / IP Rating**
3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance
DIN EN 60664-1 (2008/01); VDE 0110-1
III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material
Contact Bearer Material
Contact Bearer Color
Flammability Class (Contact Bearer)
UL 94 V-2
Flammability Class (Housing)
UL 94 HB
Cable Gland Material
Cable Gland Gasket
Cable Gland Color
Flammability Class (Cable Gland)
Steel, Philips combi slot
Fastening Torque (Contact Screw)
M3: (25-30) Ncm
Fastening Torque (Cable Gland)
Fastening Torque (Attachment)
UL 1977; UR
Protection Degree / IP Rating Note
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Do not connect or disconnect under load.
