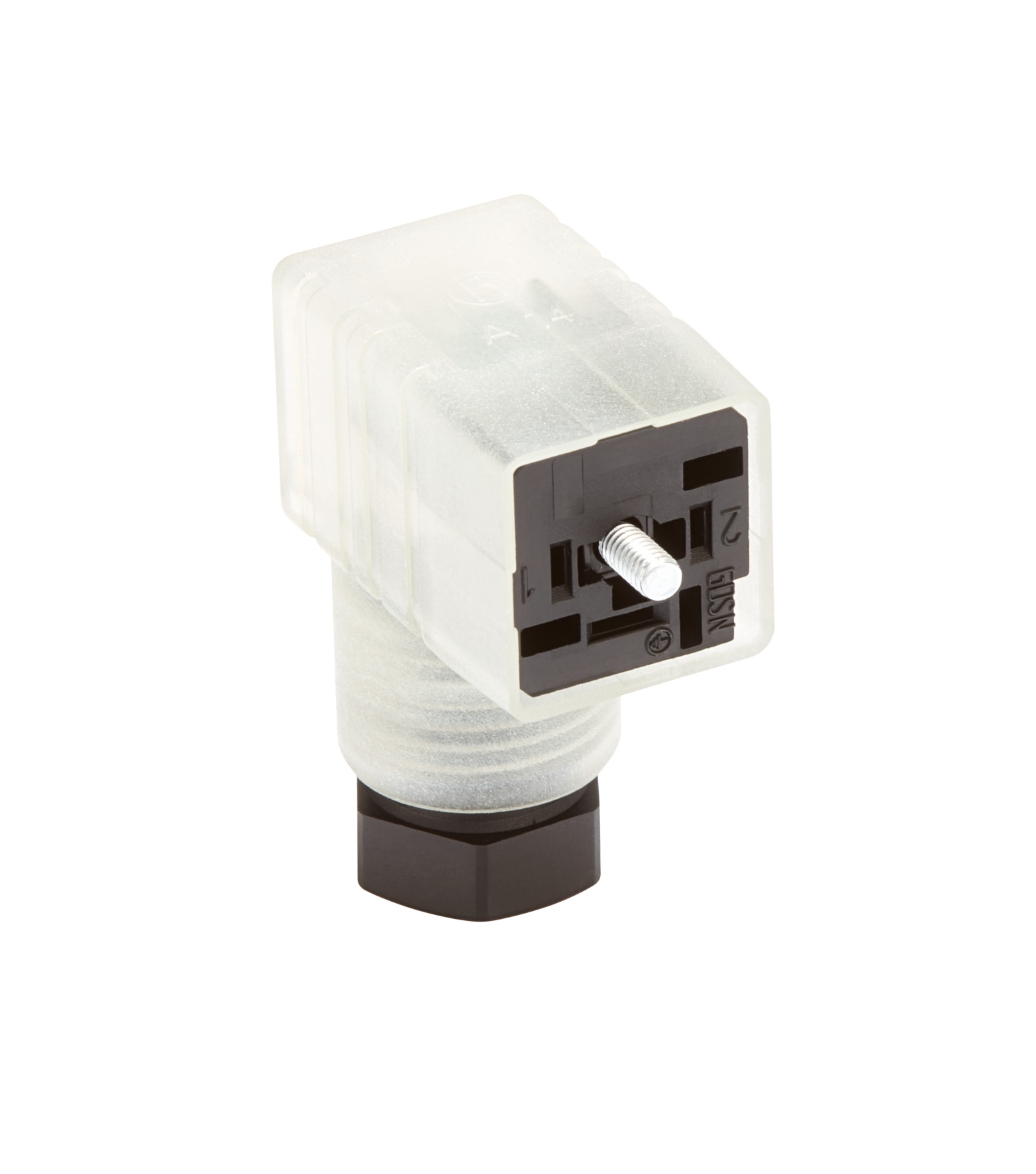

GM Industrial Standard Field Attachable Connector: Form C, 3-pin (2+1PE; PE across cable outlet), translucent housing, screw type, PG7; with varistor and yellow LED, 24 V AC/DC, 6 A
|
Product Family |
Valve Connectors |
|---|---|
|
Product Sub Family |
GDSNL DIN Standard |
|
Connector Type |
Field attachable |
|
Type of Contact / Gender |
Female |
|
Connector Design |
Angled |
|
Number of Pins |
2+PE (PE across cable outlet) |
|
Coding |
C |
|
Shielding |
Unshielded |
|
Attachment Type |
Central Screw |
|
Rated Voltage |
30 V AC/DC |
|
Rated Impulse Voltage |
4.0 kV |
|
Operating Voltage |
24 V AC/DC |
|
Rated Current* |
6 A |
|
Contact Resistance |
≤ 10 mOhm |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Mating Cycles |
≤ 50 |
|
Type of Connection |
Screw |
|
Cable Gland |
PG7 |
|
Conductor Cross Section |
0.25 - 0.75 mm² |
|
Suitable Cables |
Ø 4.5 - 6 mm |
|
Ambient Temperature (Operation)* |
-25°C to +80°C |
|
Protection Degree / IP Rating** |
IP65 |
|
Design Standard |
DIN EN 175301-803-C, ISO 4400 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Clearance / Creepage Distance |
DIN EN 60664-1 (2008/01); VDE 0110-1 |
|
Overvoltage Category |
III acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material |
CuZn |
|---|---|
|
Contact Plating |
Cu/Sn |
|
Contact Bearer Material |
PA GF |
|
Contact Bearer Color |
black |
|
Flammability Class (Contact Bearer) |
UL 94 V-2 |
|
Housing Material |
PA GF |
|
Housing Color |
Translucent |
|
Flammability Class (Housing) |
UL 94 HB |
|
Cable Gland Material |
PA GF |
|
Cable Gland Gasket |
NBR |
|
Cable Gland Color |
back |
|
Flammability Class (Cable Gland) |
UL 94 HB |
|
Attachment Material |
Steel, Philips combi slot |
|
Protection Circuitry |
Varistor with yellow LED |
|---|---|
|
Function Indicator |
Yellow LED |
|
Protective Circuit |
Varistor |
|
Fastening Torque (Contact Screw) |
(25-30) Ncm |
|
Fastening Torque (Cable Gland) |
(150-200) Ncm |
|
Fastening Torque (Attachment) |
(40-50) Ncm |
|
VDE |
yes |
|---|---|
|
SEV |
yes |
|
RoHS Compliant |
yes |
|---|
|
Note Derating |
Notice derating |
|---|---|
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|
Note |
Do not connect or disconnect under load. |
| Item # | Item Description |
|---|---|
| 935012412 | GDSNL 207 LED 24 VR YE black |
