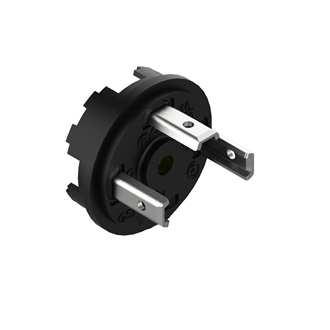

Product Number: GSP-U 3000 0PE

GSP-U - Male Receptacle, Form A, Contacts: 3 (no PE), solder type, 50 V | 16 A

175301-803-A (DIN 43650-A): Male Receptacle, Form A, Contacts: 3 (no PE), solder type, 50 V | 16 A

  • Availability:
    Global
  • Status:
    Active

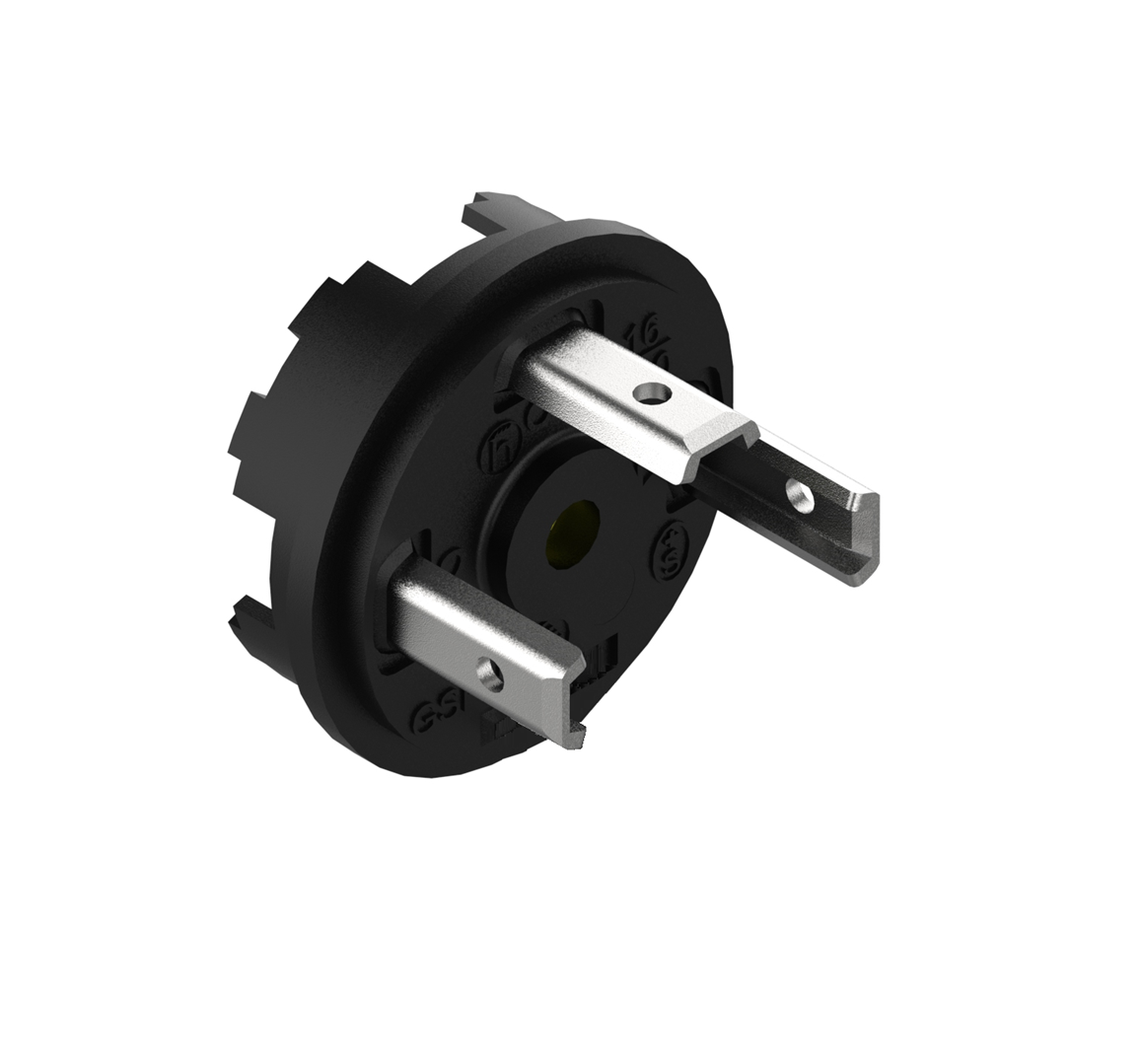

GSP-U 3000 0PE
  • GSP-U 3000 0PE
1 of 1

Specifications

Expand All

Product Family

Valve Connectors

Product Sub Family

GSP-U

Connector Type

Receptacle

Connector Sub Type

Circular receptacle with connection thread, solder contacts and no PE

Type of Contact / Gender

Male

Connector Design

Straight

Number of Pins

3

Coding

A

Shielding

Unshielded

Attachment Type

Central Screw

Rated Voltage

60 V

Rated Impulse Voltage

4.0 kV

Operating Voltage

50 V AC/DC

Rated Current*

16 A

Contact Resistance

≤ 10 mOhm

Insulation Resistance

˃ 10^9 Ohm

Mating Cycles

≤ 50

Type of Connection

Solder

Conductor Cross Section

0.08 - 1.5 mm²

Ambient Temperature (Operation)*

-40 °C - +125 °C

Protection Degree / IP Rating**

IP65

Design Standard

DIN EN 175301-803-A, ISO 4400

Pollution Degree

3 acc. to DIN EN 60664-1 (VDE 0110-1)

Clearance / Creepage Distance

DIN EN 60664-1 (2008/01); VDE 0110-1

Overvoltage Category

III acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material

CuZn

Contact Plating

Cu/Au

Contact Bearer Material

PA GF

Contact Bearer Color

black

Flammability Class (Contact Bearer)

UL 94 V-0

Housing Color

black

VDE

yes

SEV

yes

RoHS Compliant

yes

Note Derating

Notice derating

Protection Degree / IP Rating Note

*IP Rating test performed by Belden with Belden Connectors only

Note

Do not connect or disconnect under load.

Note Derating

Notice derating

Protection Degree / IP Rating Note

*IP Rating test performed by Belden with Belden Connectors only

Note

Do not connect or disconnect under load.


Report An Error

Part Numbers

Item # Item Description
832954500 GSP-U 3000 0PE LO AU
