Product Sub Family
Connector Sub Type

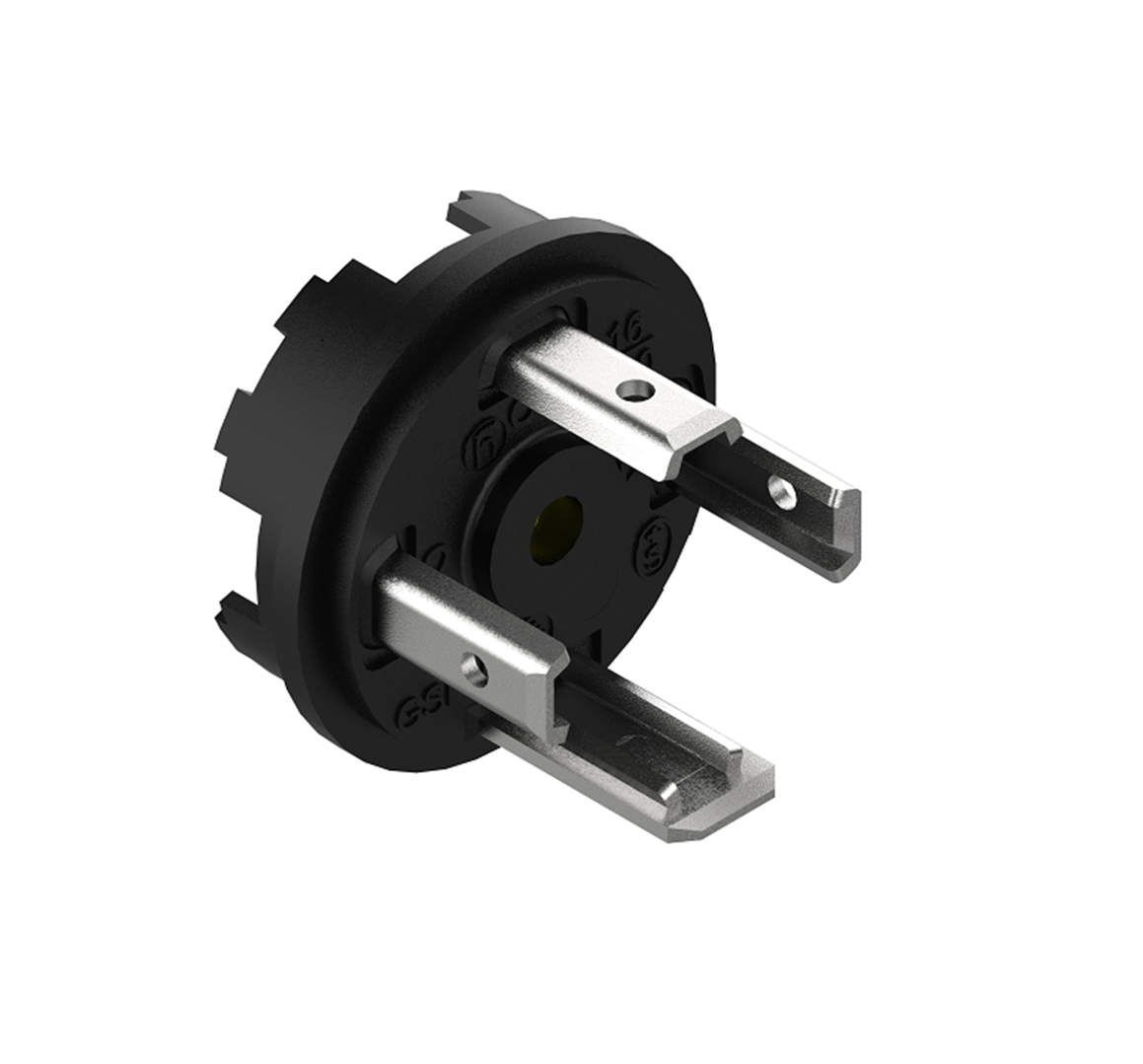

Circular receptacle with connection thread and solder contacts
Type of Contact / Gender
Number of Pins
Rated Impulse Voltage
400 V AC/DC
≤ 10 mOhm
˃ 10^9 Ohm
Type of Connection
Conductor Cross Section
0.08 - 1.5 mm²
Ambient Temperature (Operation)*
-40 °C - +125 °C
Protection Degree / IP Rating**
DIN EN 175301-803-A, ISO 4400
3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance
DIN EN 60664-1 (2008/01); VDE 0110-1
III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material
Contact Bearer Material
Contact Bearer Color
Flammability Class (Contact Bearer)
UL 94 V-0
Protection Degree / IP Rating Note
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Do not connect or disconnect under load.
