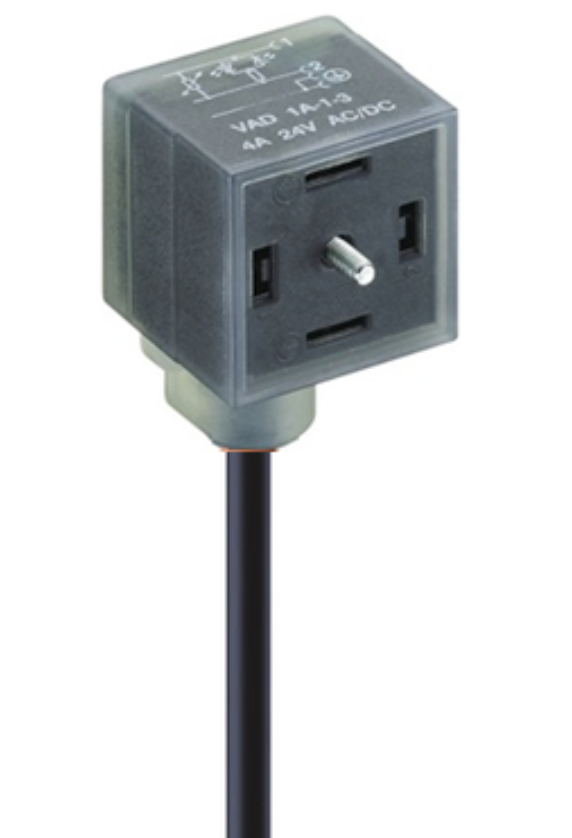

Valve Connectors - VAD 1D-3-3-205

Form A - Singled-Ended Female Angled Cordset | #Contacts: 2+2 PE | No Protective Circuit | 250 V / 4 A | Cable: Black PVC Jacket; 3x0.75 mm² (20 AWG); IEC

Availability:

Global
Status:

Active

Quote

Specifications
Part Numbers
Resources
Where to buy

Specifications

Expand All

Product Life Cycle

Life Cycle	Active - Product is available
Availability	Active

Product Family	Valve Connectors
Side 1 Product Sub Family	VAD
Connector Type	Cordset, single ended
Side 1 Type of Contact/Gender	Socket Contact / Female
Connector Design	Angled (90°) Body
Number of Pins	2+2 PE
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	Central Screw
Voltage Rating	250 V
Rated Impulse Voltage	4.0 kV
Operating Voltage	230 V AC/DC
Current Rating	4 A
Side 1 Contact Resistance	≤ 5 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 50
Cross Section	0.75 mm²
Ambient Temperature (Operation)*	- 25 °C - + 80 °C
Protection Degree / IP Rating**	IP65, IP67
Side 1 Design Standard	DIN EN 175301-803-A, ISO 4400
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material	Brass (CuZn)
Side 1 Contact Plating	Copper Nickel Alloy (Cu/Ni,Sn)
Contact Bearer Material	Polybutylene terephthalate (PBT
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 V-0
Molded Body Material	Thermoplastic Polyurethane (TPU)
Molded Body Color	Transluscent
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	Steel, Philips combi slot
Gasket Material	Molded Integrated Gasket

Circuitry

Protection Circuitry	No Protective Circuit
Protective Circuit	No Protective Circuit
Fastening Torque (Attachment)	(50-60) Ncm
Accessories to Order Separately	934887001 - GAN EPDM gasket and holding clip

Cable Data

Cable Number	205
Conductor Size	0.75 mm²
Number of Wires	3
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 5 M
Conductor Material	Cu
Cable Jacket Material	Polyvinyl Chloride (PVC)
Cable Jacket Color	Black
Cable Diameter D	Ø 5.5 mm [ 0.217 " ]
Wire Insulation Material	Polyvinyl Chloride (PVC)
Insulated Wire Diameter	Ø 1.80 mm [ 0.07 " ]
Ambient Temperature (Fixed Installation)	- 40 °C to + 70 °C
Ambient Temperature (Flex Installation)	+ 5 °C to + 70 °C
Flammability Class (Cable Jacket)	DIN VDE 0472-804 Test Type B
Cable Characteristics	free of polybrominated diphenyl ether, not halogen-free

Safety & Environmental Compliance

RoHS Compliant	Yes

Resistances

Halogenfree	No

Notes

Note Derating	Notice derating
Protection Degree / IP Rating Note	*IP Rating test performed by Belden with Belden Connectors only

Information

Note Derating	Notice derating
Protection Degree / IP Rating Note	*IP Rating test performed by Belden with Belden Connectors only

Report An Error

Part Numbers

Item #	Item Description	Cable Length	Replaced By
12164	VAD 1D-3-3-205/2 M	2 m	ID: 934889001 Name: GAN22LU-A0U-2050200-1UC
12165	VAD 1D-3-3-205/5 M	5 m	ID: 934889002 Name: GAN22LU-A0U-2050500-1UC
46925	VAD 1D-3-3-205/10 M	10 m	ID: 934889003 Name: GAN22LU-A0U-2051000-1UB
66896	VAD 1D-3-3-205/6 M	6 m	Name: GAN22LU-A0U-2050600
