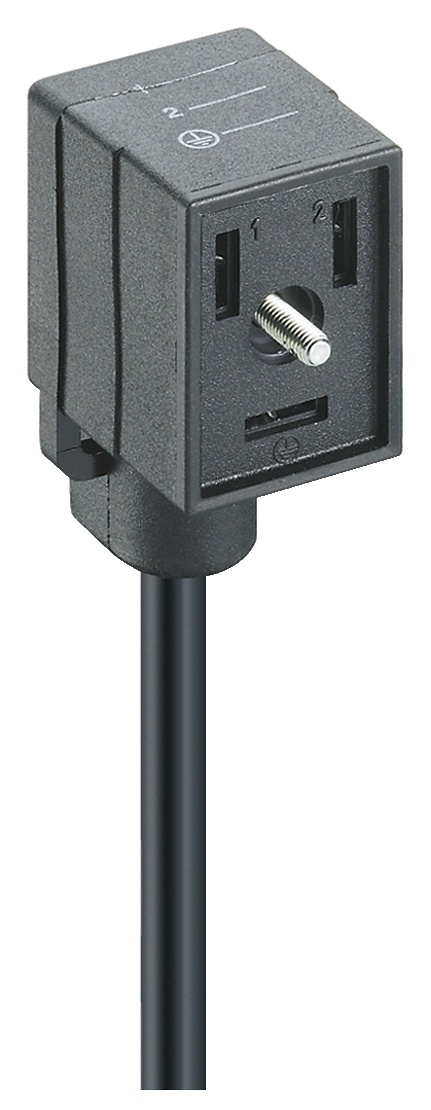

VB Industrial Standard Single-Ended Cordset: Form B, 3-pin (2+1PE; PE at cable outlet), black body, without circuitry, 230 V AC/DC, 4 A; PVC black cable, 0.75 mm²
| Pin 1 | Pin 2 | PE |
|---|---|---|
| brown | blue | green-yellow |
|
Product Family |
Valve Connectors |
|---|---|
|
Product Sub Family |
VB Industrial Standard |
|
Connector Type |
Cordset, single ended |
|
Type of Contact / Gender |
Female |
|
Connector Design |
Angled |
|
Number of Pins |
2+PE (PE at cable outlet) |
|
Coding |
B |
|
Shielding |
Unshielded |
|
Attachment Type |
Central Screw |
|
Rated Voltage |
250 V AC/DC |
|
Rated Impulse Voltage |
4.0 kV |
|
Operating Voltage |
230 V AC/DC |
|
Rated Current* |
4 A |
|
Contact Resistance |
≤ 10 mOhm |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Mating Cycles |
≤ 50 |
|
Ambient Temperature (Operation)* |
-25 °C - +80 °C |
|
Protection Degree / IP Rating** |
IP65 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Clearance / Creepage Distance |
DIN EN 60664-1 (2008/01); VDE 0110-1 |
|
Overvoltage Category |
III acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material |
CuZn |
|---|---|
|
Contact Plating |
Cu/Sn |
|
Contact Bearer Material |
PA GF |
|
Contact Bearer Color |
black |
|
Flammability Class (Contact Bearer) |
UL 94 V-0 |
|
Molded Body Material |
TPE |
|
Molded Body Color |
Black |
|
Flammability Class (Molded Body) |
UL 94 HB |
|
Attachment Material |
Steel, Philips combi slot |
|
Protection Circuitry |
No Circuitry |
|---|---|
|
Fastening Torque (Attachment) |
(50-60) Ncm |
|
Cable Number |
205 |
|---|---|
|
Conductor Size |
0.75 mm² |
|
Number of Wires |
3 |
|
Minimal Bending Radius (Fixed Inst) |
˃ 5 x D |
|
Minimal Bending Radius (Flexible Inst) |
˃ 10 x D |
|
Conductor material |
Cu |
|
Cable Jacket Material |
PVC |
|
Cable Jacket Color |
black |
|
Cable Diameter D |
ø 5.5 ± 0.2 mm |
|
Wire Insulation Material |
PVC |
|
Insulated Wire Diameter |
ø 1.80 ± 0.10 mm |
|
Ambient Temperature (Fixed Installation) |
- 40 °C - + 70 °C |
|
Ambient Temperature (Flex Installation) |
+ 5 °C - + 70 °C |
|
Flammability Class (Cable Jacket) |
DIN VDE 0472-804 Prüfart B |
|
Cable Characteristics |
frei von polybromierten Diphenylether, nicht halogenfrei |
|
RoHS Compliant |
yes |
|---|
|
Halogenfree |
no |
|---|
|
Note Derating |
Notice derating |
|---|---|
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|
Note |
Do not connect or disconnect under load. |
| Item # | Item Description | Cable Length |
|---|---|---|
| 12213 | VB 1D-3-1-205/2 M | 2 m |
| 46935 | VB 1D-3-1-205/10 M | 10 m |
| 12214 | VB 1D-3-1-205/5 M | 5 m |
