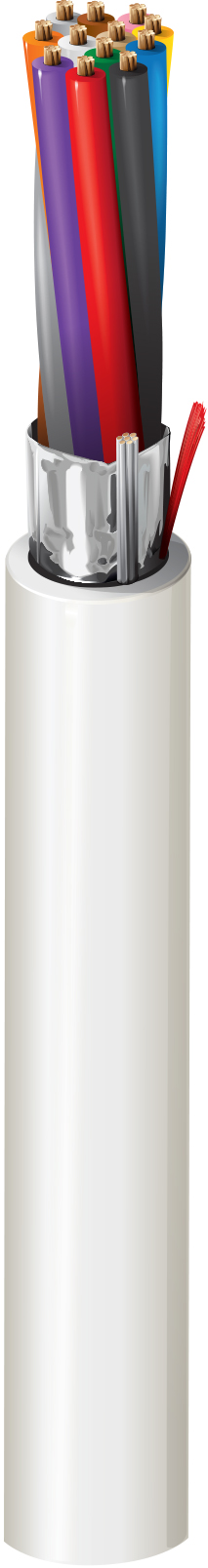

Speaker Cable - 4209FE

Security & Commercial Audio Cable, 12-16 AWG stranded bare copper conductors with PP insulation, Beldfoil® shielded, LSZH jacket with ripcord.

Availability:

Global
Status:

Capability

Quote

Specifications
Resources

Specifications

Expand All

Product Overview

Suitable Applications	Intercom/PA Systems, Sound/Audio Systems, Control Systems

Physical Characteristics (Overall)

Conductor

AWG	Stranding	Material	Nominal Diameter	No. of Conductors
16	19x29	BC - Bare Copper	1.5 mm	12

Conductor Count	12

Insulation

Type	Material	Nominal Diameter	Diameter +/- Tolerance	Nominal Wall Thickness
Insulation	PP - Polypropylene	1.85 mm	0.05 mm	0.2 mm

Color Chart

Color
Black
Red
White
Green
Brown
Blue
Orange
Yellow
Purple
Gray
Pink
Turqouise

Outer Shield

Type	Material	Material Trade Name	Coverage [%]	Drainwire Material	Drainwire AWG
Tape	Bi-Laminate (Alum+Poly)	Beldfoil®	100%	TC - Tinned Copper	AWG24/7

Outer Jacket

Material	Nominal Diameter	Nominal Wall Thickness	Ripcord
LSZH - Low Smoke Zero Halogen (Flame Retardant)	9.0 mm	0.6 mm	Yes

Outer Jacket1 Table Notes	Ripcord provided under sheath

Electrical Characteristics

Conductor DCR

Nominal Conductor DCR
13.8 Ohm/km

Capacitance

Nom. Capacitance Conductor to Conductor	Nom. Capacitance Conductor to Other Conductor to Shield
105 pF/m	220 pF/m

Current

Max. Recommended Current [A]
4 Amps per Conductor

Voltage

Voltage Rating [V]
300 V

Temperature Range

Installation Temperature Range	-20°C To +70°C
Storage Temperature Range	-30°C To +70°C
Operating Temperature Range	-20°C To +70°C

Mechanical Characteristics

Maximum Recommended Pulling Tension	800 N
Minimum Bend Radius During Installation	90 mm
Min Setting Radius	45 mm

Flammability, LS0H, Toxicity Testing

IEC Flammability	IEC 60332-1-2
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity	10 µS/mm
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH	4.3
IEC 61034-2 - Smoke Density Min. Transmittance	60%

Product Notes

Notes	This is a preliminary Technical Design Specification (TDS). The minimum business quantity to offer is 3km for the first order. This product will have Gray as standard color and 305mt as standard put-ups. Additional options for colors and put-ups are available on special request. The estimated production lead time for the first order will be similar to the production lead time of 4309FLW. Please liaise with your Belden representative for confirmation.

Notes

This is a preliminary Technical Design Specification (TDS). The minimum business quantity to offer is 3km for the first order. This product will have Gray as standard color and 305mt as standard put-ups. Additional options for colors and put-ups are available on special request. The estimated production lead time for the first order will be similar to the production lead time of 4309FLW. Please liaise with your Belden representative for confirmation.
