Burglar Alarm Cable

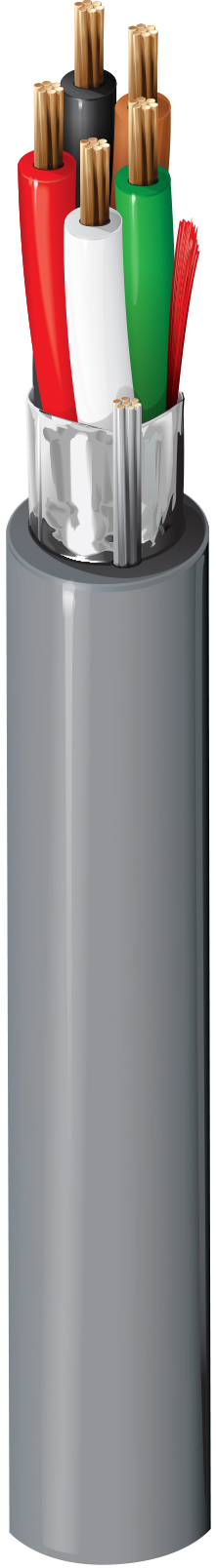

Security & Commercial Audio Cable, 5 twisted 18 AWG stranded bare copper conductors with LSZH insulation , Beldfoil® shield, LSZH jacket with ripcord, CPR Eca

Availability:

Global
Status:

Capability

Quote

Specifications
Resources

Specifications

Expand All

Product Overview

Suitable Applications	Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Construction Details

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	5	18 AWG	7x26	BC - Bare Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	LSZH - Low Smoke Zero Halogen (Flame Retardant)	0.25 mm (0.0098 in)	1.72 mm (0.0677 in)	Black, Red, White, Green, Brown

Outer Shield

Shield Type	Material	Coverage	Drainwire Type
Tape	Bi-Laminate (Alum+Poly)	100%	24 AWG (7x32) TC

Outer Jacket

Material	Nom. Thickness	Nom. Diameter	Ripcord
LSZH - Low Smoke Zero Halogen (Flame Retardant)	1.0 mm (0.039 in)	6.6 mm (0.26 in)	Yes

Outer Jacket1 Table Notes	Ripcord provided under sheath
Overall Cable Diameter (Nominal)	6.6 mm (0.26 in)

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Other (Conds + Shield)	Max. Current
Conductor(s)	21.3 Ohm/km (6.49 Ohm/1000ft)	125 pF/m (38.1 pF/ft)	224 pF/m (68.3 pF/ft)	3.5 Amps per Conductor

Mechanical Characteristics

Temperature

Operating	Installation	Storage
-20°C To +70°C	-20°C To +70°C	-30°C To +70°C

Bend Radius

Stationary Min.	Installation Min.
33 mm (1.3 in)	66 mm (2.6 in)

Max. Pull Tension	210 N (47 lbf)

Standards and Compliance

Environmental Suitability	Indoor - Euroclass Cca, Indoor, Non-Halogenated
Flammability / Reaction to Fire	IEC 60332-1-2
CPR Compliance	CPR Euroclass: Cca-s1,d1,a1
CENELEC Compliance	EN 50290-2-20
European Halogen Free Standards	IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60%
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2)
UK Regulation Compliance	UKCA Mark

Product Notes

Notes	This is a preliminary Technical Design Specification (TDS). The minimum business quantity to offer is 3km for the first order. This product will have Gray as standard color and 305mt as standard put-ups. Additional options for colors and put-ups are available on special request. The estimated production lead time for the first order will be similar to the production lead time of 4303FE. Please liaise with your Belden representative for confirmation.

Notes

This is a preliminary Technical Design Specification (TDS). The minimum business quantity to offer is 3km for the first order. This product will have Gray as standard color and 305mt as standard put-ups. Additional options for colors and put-ups are available on special request. The estimated production lead time for the first order will be similar to the production lead time of 4303FE. Please liaise with your Belden representative for confirmation.
