Product Number: 449945

PTZ, RG-59 #20, #18-2c, LSZH, Siamese, Dca

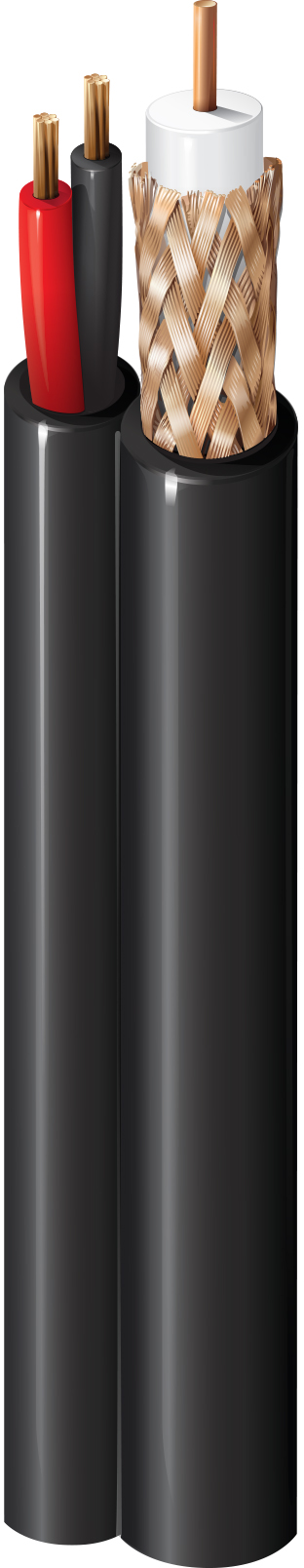

PTZ (CCTV + Power/Audio) Cable), Coax 59/U, Flame retardance IEC60332-1 20 AWG solid bare copper, foamed polyethylene core, 95% bare copper braid, LSZH jacket

  • Availability:
    Global
  • Status:
    Active
449945
  • 449945
1 of 1

Specifications

Expand All

Suitable Applications

Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom)

RG Type

59

Conductor

Element No. of Elements Size Stranding Nom. Diameter Material
Coax(es) 1 20 AWG Solid 0.81 mm BC - Bare Copper
Pair1 18 AWG 7x26 1.17 mm BC - Bare Copper

Insulation

Element Material Nom. Insulation Diameter
Coax(es) PE - Polyethylene (Foam) 3.68 mm (0.145 in)
Twisted Pair(s) PE - Polyethylene 1.7 mm (0.067 in)

Inner Shield

Element Shield Type Material Coverage
Coax(es) Braid Bare Copper (BC) 95%

Outer Jacket

Material Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 5.9 mm (0.23 in)

Attenuation

Frequency Nom. Attenuation
1 MHz 0.98 dB/100m
5 MHz 2.13 dB/100m
10 MHz 2.95 dB/100m
50 MHz 6.23 dB/100m
100 MHz 8.53 dB/100m
200 MHz 11.8 dB/100m
400 MHz 16.4 dB/100m
700 MHz 23 dB/100m
900 MHz 26.2 dB/100m
1000 MHz 27.9 dB/100m

Electricals

Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
10.3 Ohm/1000ft 12.5 Ohm/km (3.81 Ohm/1000ft) 55.6 pF/m (16.9 pF/ft) 75 Ohm 83%
21.3 Ohm/km (6.49 Ohm/1000ft)

Temperature

Operating Storage
-30°C To +70°C -30°C To +70°C

Max. Pull Tension

450 N (100 lbf)

Environmental Suitability

Indoor/Outdoor - Euroclass Dca

Flammability / Reaction to Fire

IEC 60332-1-2

CPR Compliance

CPR Euroclass: Dca-s2,d2,a1

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60%

UK Regulation Compliance

UKCA Mark

Update and Revision

Revision Number: 0.270 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.270 Revision Date: 09-07-2025


Report An Error

Part Numbers

Item # Color Putup Type Length EAN
449945.00100 Gray Reel 100 m 8719605007018
449945.00500 Gray Reel 500 m 8719605007025
