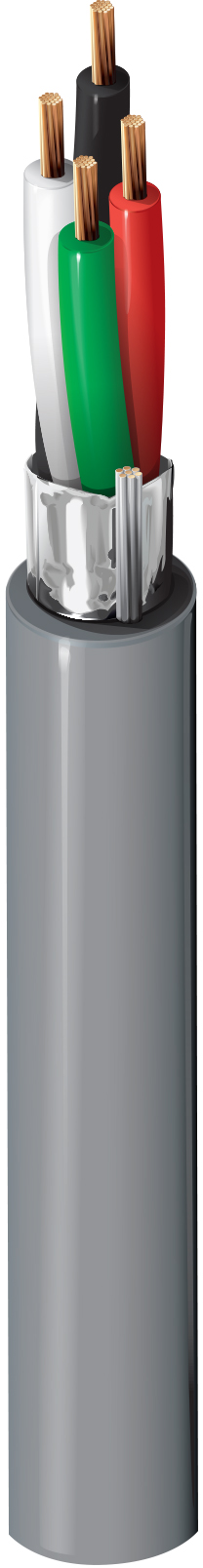

Speaker Cable - 4502FLV

Security & Commercial Audio Cable, 4-22 AWG stranded bare copper conductors with Low Smoke Zero Halogen insulation, Beldfoil® shield and LSZH jacket with ripcord, CPR B2ca

Availability:

Global
Status:

Capability

Quote

Specifications
Resources

Specifications

Expand All

Product Overview

Suitable Applications	Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Physical Characteristics (Overall)

Conductor

AWG	Stranding	Material	Nominal Diameter	No. of Conductors
22	7x30	BC - Bare Copper	0.75 mm	4

Conductor Count	4

Insulation

Type	Material	Nominal Diameter	Nominal Wall Thickness
Insulation	LSZH - Low Smoke Zero Halogen (Flame Retardant)	1.45 mm	0.35 mm

Color Chart

Number	Color
Wire 1	Black
Wire 2	Red
	White
	Green

Outer Shield

Material	Material Trade Name	Coverage [%]	Thickness of Foil	Drainwire Material	Drainwire AWG
Bi-Laminate (Alum+Poly)	Beldfoil®	100%	9 µm	TC - Tinned Copper	AWG24/7

Outer Jacket

Material	Nominal Diameter	Nominal Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant)	5.9 mm	1.1 mm

Construction and Dimensions

Cabling

Description
4 wires twisted

Electrical Characteristics

Conductor DCR

Nominal Conductor DCR	Nominal Outer Shield DCR
54 Ohm/km	54 Ohm/km

Capacitance

Nom. Capacitance Conductor to Conductor	Nom. Capacitance Conductor to Other Conductor to Shield
105 pF/m	185 pF/m

Current

Max. Recommended Current [A]
2.2 Amps per Conductor

Voltage

Voltage Rating [V]
300 V

Temperature Range

Installation Temperature Range	-20°C To +70°C
Storage Temperature Range	-30°C To +70°C
Operating Temperature Range	-20°C To +70°C

Mechanical Characteristics

Maximum Recommended Pulling Tension	80 N
Minimum Bend Radius During Installation	59 mm
Min Setting Radius	30 mm

Standards

CPR Euroclass	B2ca-s1a,d1,a1

Applicable Environmental and Other Programs

Environmental Space	Indoor - Euroclass B2ca

Flammability, LS0H, Toxicity Testing

IEC Flammability	IEC 60332-1-2
IEC 60754-1 - Halogen Amount	Zero
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity	2.5 µS/mm
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH	4.3
IEC 61034-2 - Smoke Density Min. Transmittance	80%

Product Notes

Notes	This is a preliminary Technical Design Specification (TDS). The minimum business quantity to offer is 3km for the first order. This product will have Gray as standard color and 305mt as standard put-ups. Additional options for colors and put-ups are available on special request. The estimated production lead time for the first order will be similar to the production lead time of 4502FLW. Please liaise with your Belden representative for confirmation.

Notes

This is a preliminary Technical Design Specification (TDS). The minimum business quantity to offer is 3km for the first order. This product will have Gray as standard color and 305mt as standard put-ups. Additional options for colors and put-ups are available on special request. The estimated production lead time for the first order will be similar to the production lead time of 4502FLW. Please liaise with your Belden representative for confirmation.
