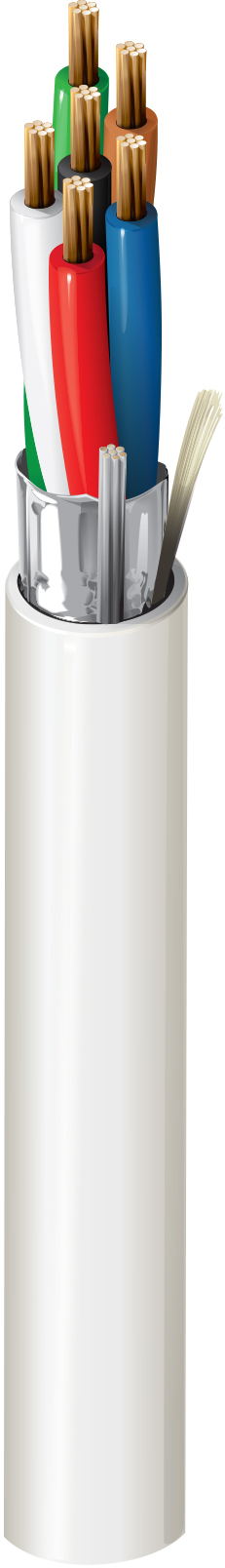

Product Number: 4504FE

Security & Sound, 6 Conductor 22 AWG BC, LSZH, Shielded, Eca

Security & Commercial Audio Cable, 6-22 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield, LSZH jacket with ripcord, CPR Eca

  • Availability:
    Global
  • Status:
    Active
4504FE
  • 4504FE
1 of 1

Specifications

Expand All

Suitable Applications

Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Conductor

Element No. of Elements Size Stranding Material
Conductor(s) 6 22 AWG 7x30 BC - Bare Copper

Insulation

Material Nom. Thickness Nom. Insulation Diameter Color Code
PP - Polypropylene 0.2 mm (0.0079 in) 1.07 mm (0.0421 in) Black, Red, White, Green, Brown, Blue

Outer Shield

Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%

Outer Jacket

Material Nom. Thickness Nom. Diameter Ripcord
LSZH - Low Smoke Zero Halogen (Flame Retardant) 0.4 mm (0.016 in) 4.4 mm (0.17 in) Yes

Electricals

Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
54 Ohm/km (16 Ohm/1000ft) 70 pF/m (21 pF/ft) 130 pF/m (40 pF/ft) 2 Amps per Conductor

Nom Outer Shield DCR

50 Ohm/km (15 Ohm/1000ft)

Temperature

Operating Installation Storage
-20°C to +70°C -20°C To +70°C -30°C To +70°C

Bend Radius

Installation Min.
44 mm (1.7 in)

Max. Pull Tension

42 lbs (19 kg)

Bulk Cable Weight

84 lbs/1000ft (130 kg/km)

Environmental Suitability

Indoor - Euroclass Eca

Flammability / Reaction to Fire

IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca; CPR UKCA Class: Eca

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60%

UK Regulation Compliance

UKCA Mark

Update and Revision

Revision Number: 0.538 Revision Date: 10-13-2025

Update and Revision

Revision Number: 0.538 Revision Date: 10-13-2025


Report An Error

Part Numbers

Item # Color Putup Type Length EAN
4504FE.00100 Gray Reel 100 m 8719605007186
4504FE.00500 Gray Reel 500 m 8719605007193
4504FE.K0500 Gray Reel 500 m 8719605007209
