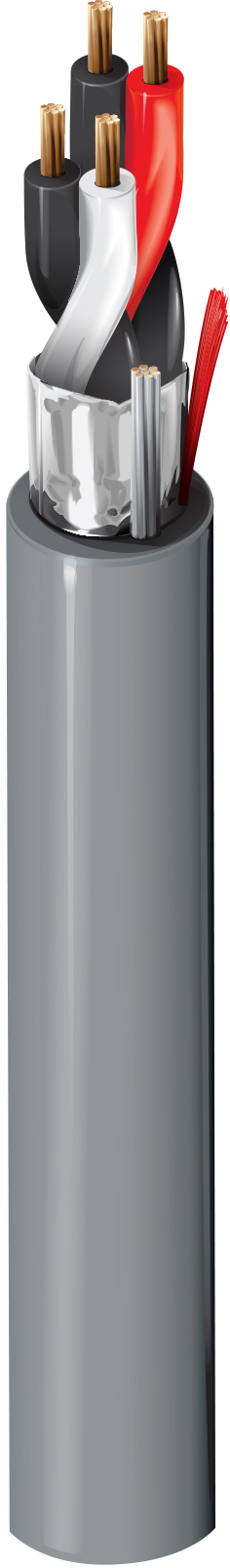

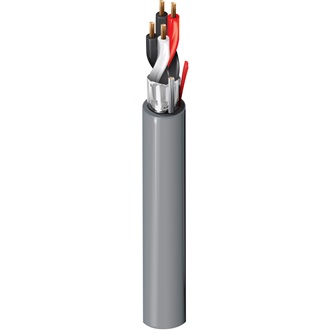

5541FE

Security & Sound, #22-2pr, BC, Shielded, CMR

...
Security & Sound Cable, Riser-CMR, 2-22 AWG stranded bare copper pairs with polyolefin insulation, Beldfoil® shield and PVC jacket with ripcord
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 2 22 7x30 BC - Bare Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
PO - Polyolefin 0.008 in (0.20 mm) 0.045 in (1.1 mm) Black & Red, Black & White
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.017 in (0.43 mm) 0.189 in (4.80 mm) Yes
Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
17.6 Ohm/1000ft 24 pF/ft (79 pF/m) 43.25 pF/ft (141.9 pF/m) 2.2 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V
Mechanical Characteristics
Temperature
UL Temperature Operating
75°C -20°C To +75°C
Bend Radius
Stationary Min. Installation Min.
1.89 in (48.0 mm) 1.89 in (48.0 mm)

Max. Pull Tension

41.8 lbs (19.0 kg)

Bulk Cable Weight

18 lbs/1000ft

Standards and Compliance

Flammability / Reaction to Fire

UL 1666 riser, FT4, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 800, CMR

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

6541FE

History

Update and Revision

Revision Number: 0.425 Revision Date: 12-22-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC Footnote
5541FE 0081000 Gray 612825164258 C
5541FE 008U1000 Gray 612825164241
