Product Number: 6000FE

Security & Sound, 2 Conductor 12 AWG, BC, O/A Foil, CL2P

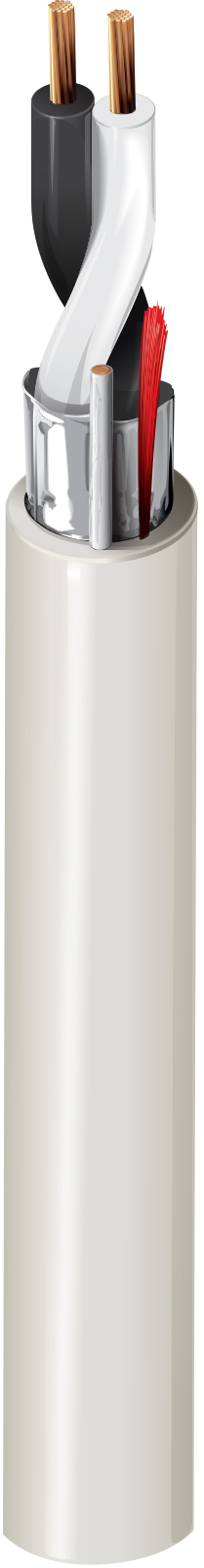

Security & Sound Cable , Plenum-CL2P, 2-12 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord

  • Availability:
    Global
  • Status:
    Active
6000FE
  • 6000FE
1 of 1

Specifications

Expand All

Suitable Applications

Intercom/PA Systems, Sound/Audio Systems

Conductor

Element No. of Elements Size Stranding Material
Conductor(s) 2 12 AWG 19x25 BC - Bare Copper

Insulation

Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC - Polyvinyl Chloride 0.011 in (0.28 mm) 0.113 in (2.87 mm) Black, White

Outer Shield

Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 20 AWG (7x28) TC

Outer Jacket

Material Nom. Thickness Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.015 in (0.38 mm) 0.26 in Yes

Overall Cable Diameter (Nominal)

0.26 in

Electricals

Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Inductance Max. Current
1.6 Ohm/1000ft 97 pF/ft (320 pF/m) 174.6 pF/ft (572.8 pF/m) 0.14 µH/ft (0.46 µH/m) 12 Amps per Conductor at 25ºC

Nom Outer Shield DCR

7.2 Ohm/1000ft (24 Ohm/km)

Voltage

UL Voltage Rating
300 V

Temperature

UL Temperature Operating
75°C -20°C To +75°C

Bend Radius

Stationary Min. Installation Min.
2.6 in (66 mm) 2.6 in

Max. Pull Tension

164 lbs (74.4 kg)

Bulk Cable Weight

64 lbs/1000ft

Environmental Suitability

Indoor - Plenum, Indoor

Flammability / Reaction to Fire

NFPA 262 (UL 910), IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 725, CL2P

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Non-Plenum Number

5000FE

Update and Revision

Revision Number: 0.397 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Update and Revision

Revision Number: 0.397 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Report An Error

Part Numbers

Item # Color Putup Type Length UPC Footnote
6000FE 8771000 Natural Reel 1,000 ft 612825433491 C
