Product Number: 70007NH

DataTuff® 5E, 1Q #22 Str TC, PO ins, F/B, LSZH Jkt, PROFINET Type B UL AWM 21286

DataTuff® 5E, 1 Quad AWG 22 Tinned Copper - Stranded, Polyethylene insulation, SF/UTP - Overall Braid + Foil shielding, LSZH / FRNC jacket , PROFINET Type B UL AWM 21286

  • Availability:
    Global
  • Status:
    Active

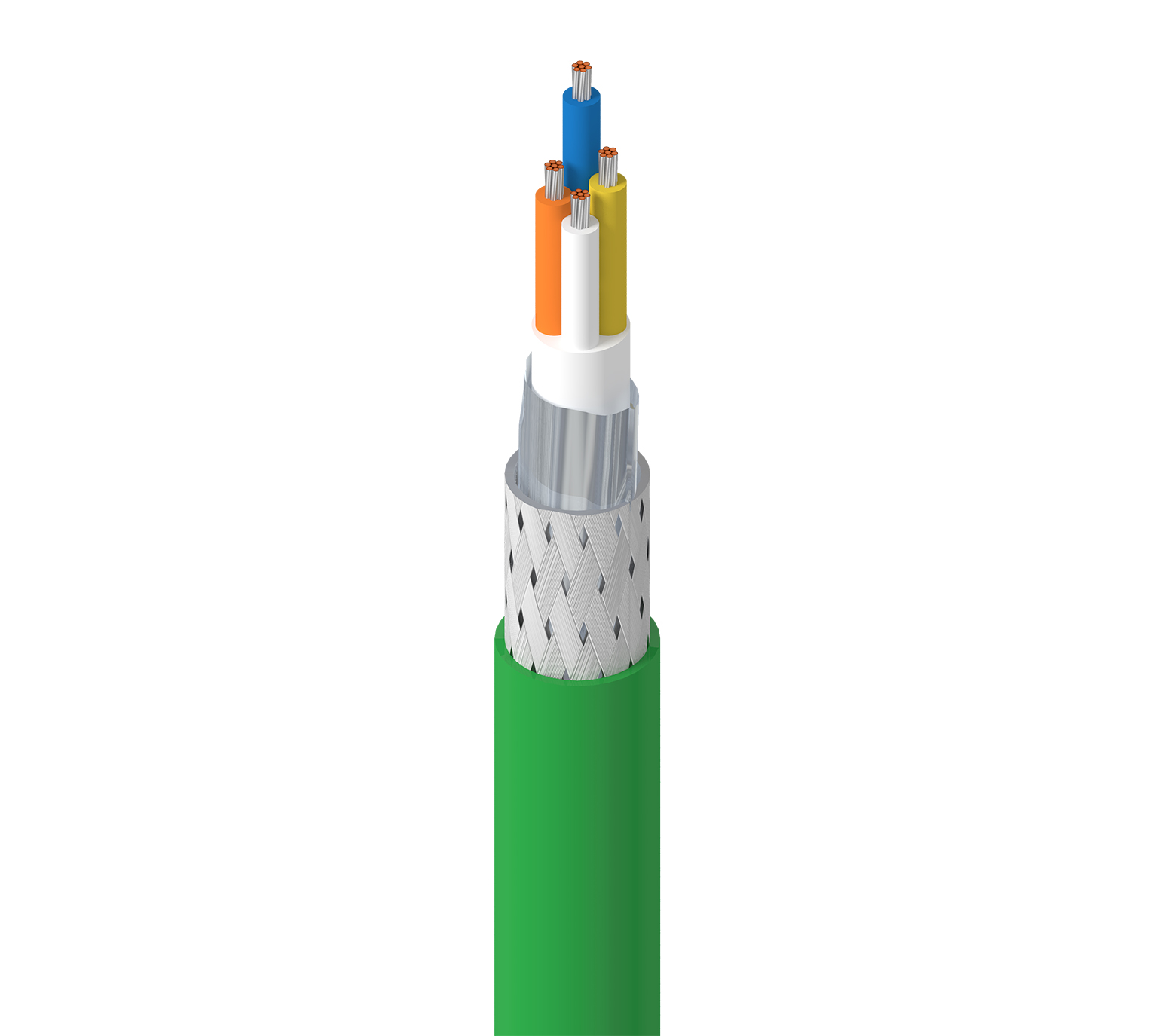

70007NH
  • 70007NH
1 of 1

Specifications

Expand All

Suitable Applications

PROFINET Cat5e, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Conductor

Size Stranding Material No. of Pairs
22 AWG 7x0.25 mm TC - Tinned Copper 2

Insulation

Material Nom. Insulation Diameter Color Code
PE - Polyethylene 1.55 mm (0.0610 in) White & Blue & Yellow & Orange
1 Quad

Cable Core

Description
1 quad with center filler

Inner Jacket

Material Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 4.1 mm (0.16 in)

Inner Jacket Table Notes

Bedding

Outer Shield

Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly)
Braid Tinned Copper (TC) 85%

Outer Jacket

Material Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 6.5 mm (0.26 in)

Overall Cable Diameter (Nominal)

6.5 mm (0.26 in)

Electricals

Max. Conductor DCR Nom. Characteristic Impedance
57.1 Ohm/km (17.4 Ohm/1000ft) 100 Ohm

Delay

Max. Delay Nom. Velocity of Prop.
530 ns/100m 68%

High Frequency

Frequency [MHz] Max. Insertion Loss (Attenuation) [dB/100m] Min. NEXT [dB] Min. ACRF (ELFEXT) [dB] Min. SRL (Structural Return Loss) [dB]
1 2.1 65.3 64
4 4.1 56.3 52 23
10 6.5 50.3 44 25
16 8.3 47.2 40 25
31.25 11.7 43 34 23.6
62.5 17 38.4 28 21.5
100 22 35.3 24 20.1

Transfer Impedance

Frequency Max. Transfer Impedance
1 MHz Max. 10 mOhm/m
10 MHz Max. 10 mOhm/m
30 MHz Max. 30 mOhm/m
100 MHz 100 mOhm/m

Transfer Impedance Class

Grade 1

Screening Class

Type I

Screening Table Notes

Coupling Attenuation

Voltage

UL Voltage Rating Voltage Rating
300 V RMS 300 V

Temperature

Operating Installation Storage
-25°C to +70°C -5°C To +50°C -40°C to +70°C

Environmental Suitability

Indoor - Euroclass Eca, Sunlight Resistance, Oil Resistance

Flammability / Reaction to Fire

IEC 60332-1-2, IEC 60332-3-24

CPR Compliance

CPR Euroclass: Eca; CPR UKCA Class: Eca

Data Category

Category 5e

ISO/IEC Compliance

ISO/IEC 11801-1

CENELEC Compliance

EN 50173-1

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

European Directive Compliance

EU CE Mark

UK Regulation Compliance

UKCA Mark

Update and Revision

Revision Number: 0.282 Revision Date: 12-24-2025

Update and Revision

Revision Number: 0.282 Revision Date: 12-24-2025


Report An Error

Part Numbers

Item # Color Putup Type Length EAN
70007NH.01B100 Green Flat Box 100 m 8719605009388
70007NH.K0305 Green Reel 305 m 8719605009395
70007NH.01305 Green Reel 305 m 8719605009364
70007NH.K0500 Green Reel 500 m 8719605009401
70007NH.01500 Green Reel 500 m 8719605009371
70007NH.011000 Green Reel 1,000 m 8719605009357
