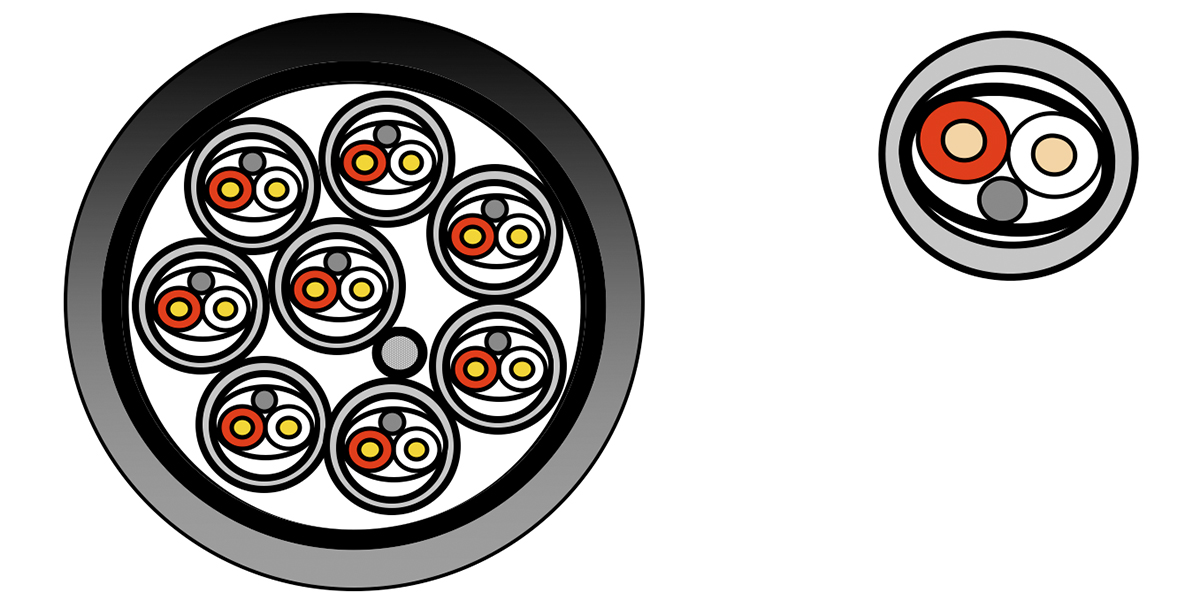

Product Number: 70033

AUDIO ANALOG 8 PAIR 26AWG, BRAID PVC

ANALOG AUDIO 8 PAIR 26AWG/0.14mm², BRAID PVC

  • Availability:
    Global
  • Status:
    Discontinued
70033
5 of 5

Specifications

Expand All

Suitable Applications

Audio snake cable used in professional studios; For the transmission of analogue signals

Life Cycle

Discontinued - the product is no longer manufactured

Conductor

Size Stranding Material
26 7x34 BC-OFHC - Oxygen-Free Bare Copper (High Conductivity)

Insulation

Material Nom. Insulation Diameter Color Code
PE - Polyethylene 1.00 mm (0.0394 in) White & Red

Inner Shield

Material Coverage
Bi-Laminate (Alum+Poly) 100%

Inner Shield Table Notes

Aluminum inside

Outer Shield

Shield Type Material
Tape Polyester
Braid Tinned Copper (TC)

Inner Jacket

Material Nom. Diameter
PVC - Polyvinyl Chloride 2.80 mm (0.110 in)

Inner Jacket Table Notes

Elements are numbered for identification

Outer Jacket

Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 1.10 mm (0.0433 in) 12.50 mm (0.4921 in)

Electricals

Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Characteristic Impedence Nom. Velocity of Prop.
134.0 Ohm/km (40.84 Ohm/1000ft) 90 pF/m (27 pF/ft) 90 Ohm 66%

Bend Radius

Installation Min.
125 mm (4.92 in)

Environmental Suitability

Indoor - Euroclass Eca

Flammability / Reaction to Fire

IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

UK Regulation Compliance

UKCA Mark

Update and Revision

Revision Number: 0.268 Revision Date: 10-07-2025

Update and Revision

Revision Number: 0.268 Revision Date: 10-07-2025
