Product Number: 70066CH

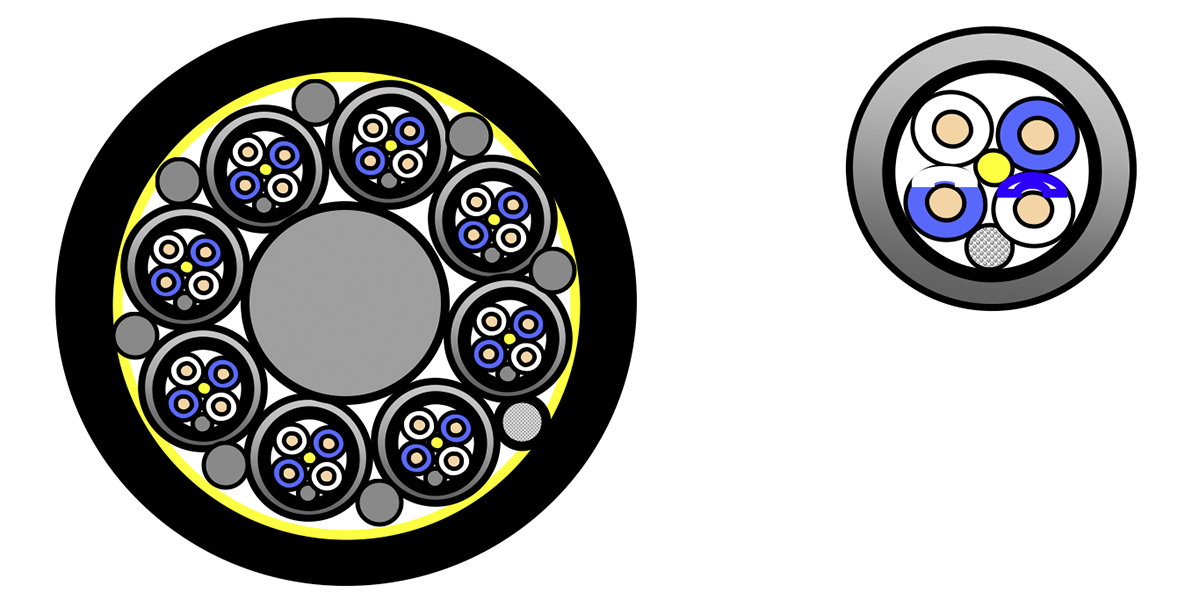

8 x QUAD SNAKE, 26AWG, FRNC/LSZH-C

8 x QUAD SNAKE, 26AWG, FRNC/LSZH-C

  • Availability:
    Global
  • Status:
    Discontinued
70066CH
5 of 5

Specifications

Expand All

Suitable Applications

8 fold star-quad FRNC microphone cable

Life Cycle

Discontinued - the product is no longer manufactured

Conductor

Size Stranding Material
26 Stranded BC - Bare Copper

Insulation

Material Nom. Insulation Diameter Color Code
PE - Polyethylene 1.15 mm (0.0453 in) White & Blue & White/Blue & Blue/White
1, 2, 3, 4, 5, 6, 7, 8

Inner Shield

Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%

Inner Shield Table Notes

Aluminum inside

Inner Jacket

Material Nom. Diameter Color
LSZH - Low Smoke Zero Halogen (Flame Retardant) 3.70 mm (0.146 in) Gray (like RAL 7001)

Inner Jacket Table Notes

Elements are numbered 1-8 for identification

Outer Jacket

Material Nom. Thickness Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 1.50 mm (0.0591 in) 16.70 mm (0.6575 in)

Electricals

Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Shield
110.0 Ohm/km (33.53 Ohm/1000ft) 164 pF/m (50.0 pF/ft) 222 pF/m (67.7 pF/ft)

Bend Radius

Installation Min.
167 mm (6.57 in)

Environmental Suitability

Indoor - Euroclass Dca

Flammability / Reaction to Fire

IEC 60332-1-2, IEC 60332-3-24

CPR Compliance

CPR Euroclass: Dca-s2,d2,a1

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

UK Regulation Compliance

UKCA Mark

Update and Revision

Revision Number: 0.263 Revision Date: 10-07-2025

Update and Revision

Revision Number: 0.263 Revision Date: 10-07-2025


Report An Error

Part Numbers

Item # Color Putup Type Length EAN
70066CH.001000 Black Reel 1,000 m 8719605010605
