Product Number: 8102NH

RS232/422 Low Cap, #24-2pr, FPO, O/A Foil+Braid, LSZH Jkt, Dca, 100Ω

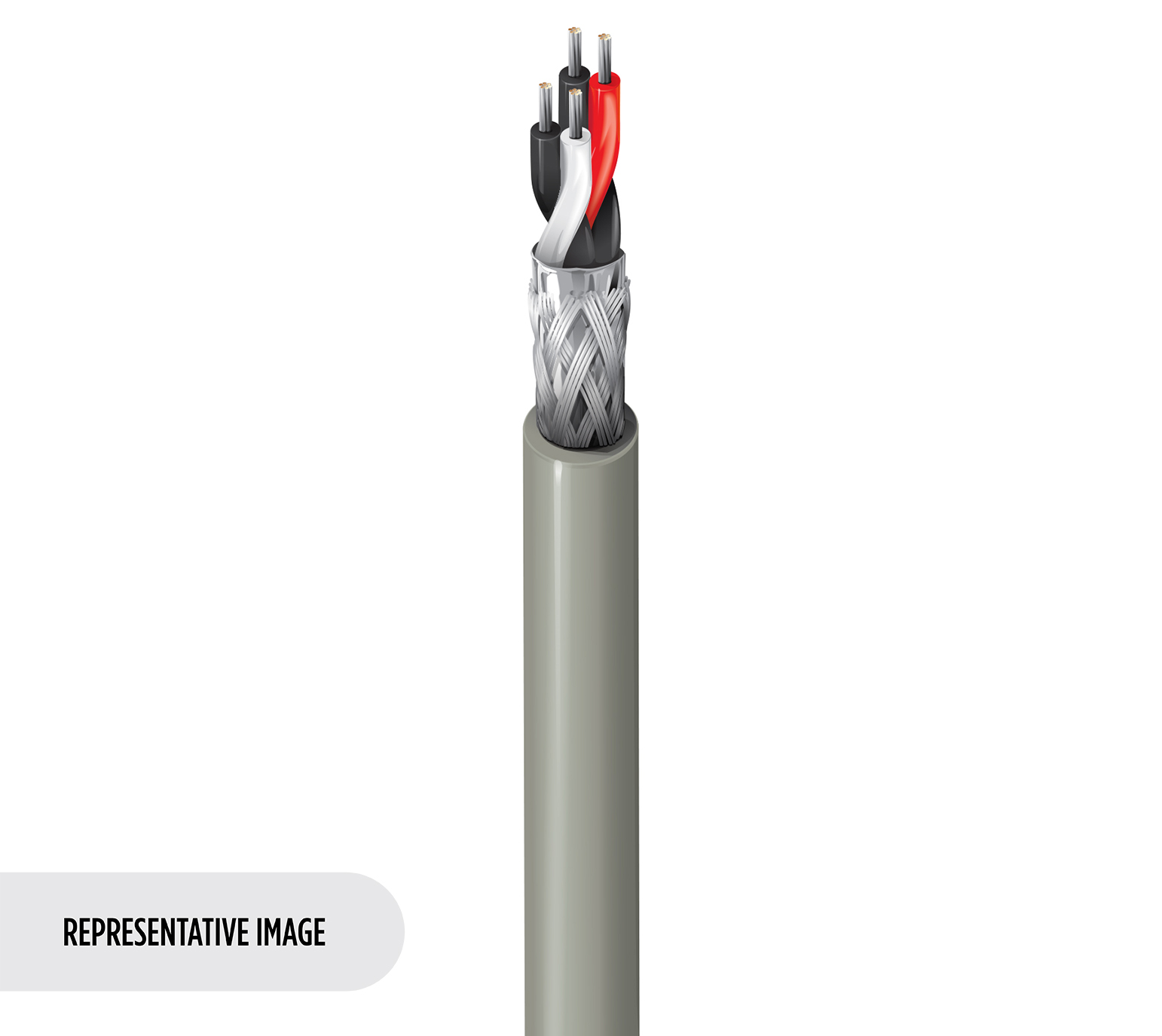

2-Pair, 24 AWG stranded (7x32) TC conductors, Datalene® insulation, twisted pairs, overall Beldfoil® (100% coverage) + TC braid shield (65% coverage), 24 AWG stranded TC drain wire, LSZH jacket, Flame resistance IEC 60332-3-24 cat.C

  • Availability:
    Global
  • Status:
    Active
8102NH
  • 8102NH
1 of 1

Specifications

Expand All

Suitable Applications

RS-232 extended distance applications; rs-422 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Conductor

Size Stranding Material
24 7x32 TC - Tinned Copper

Insulation

Material Nom. Insulation Diameter Color Code Notes
PE - Polyethylene (Foam) 1.24 mm (0.0488 in) White & Blue; Blue & White, White & Orange; Orange & White HDPE

Outer Shield

Shield Type Material
Tape Bi-Laminate (Alum+Poly)
Braid Tinned Copper (TC)

Outer Jacket

Material Nom. Thickness Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 0.8 mm (0.031 in) 6.9 mm

Outer Jacket1 Table Notes

UV stabilised

Electricals

Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Shield Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Max. Current
78.7 Ohm/km (24.0 Ohm/1000ft) 41 pF/m (12 pF/ft) 72.2 pF/m (22.0 pF/ft) 72.2 pF/m (22.0 pF/ft) 100 Ohm 1.8 Amps per Conductor

Nom Outer Shield DCR

13 Ohm/km (4.0 Ohm/1000ft)

Voltage

UL Voltage Rating
AWM 2919: 30 V

Voltage Rating Table Notes

Type CM

Temperature

Operating Installation Storage
-15°C To +80°C -15°C To +80°C -45°C To +80°C

Bend Radius

Installation Min.
69 mm

Max. Pull Tension

120 N (27 lbf)

Environmental Suitability

Indoor - Euroclass Dca

Flammability / Reaction to Fire

IEC 60332-1-2, IEC 60332-3-24

CPR Compliance

CPR Euroclass: Dca-s1,d1,a1

AWM Compliance

AWM 2919 (30 V RMS)

CENELEC Compliance

EN 50290-2-20

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60%

UK Regulation Compliance

UKCA Mark

Update and Revision

Revision Number: 0.238 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.238 Revision Date: 09-07-2025


Report An Error

Part Numbers

Item # Color Putup Type Length EAN
8102NH.00305 Gray Reel 305 m 8719605017710
