Product Number: 8759

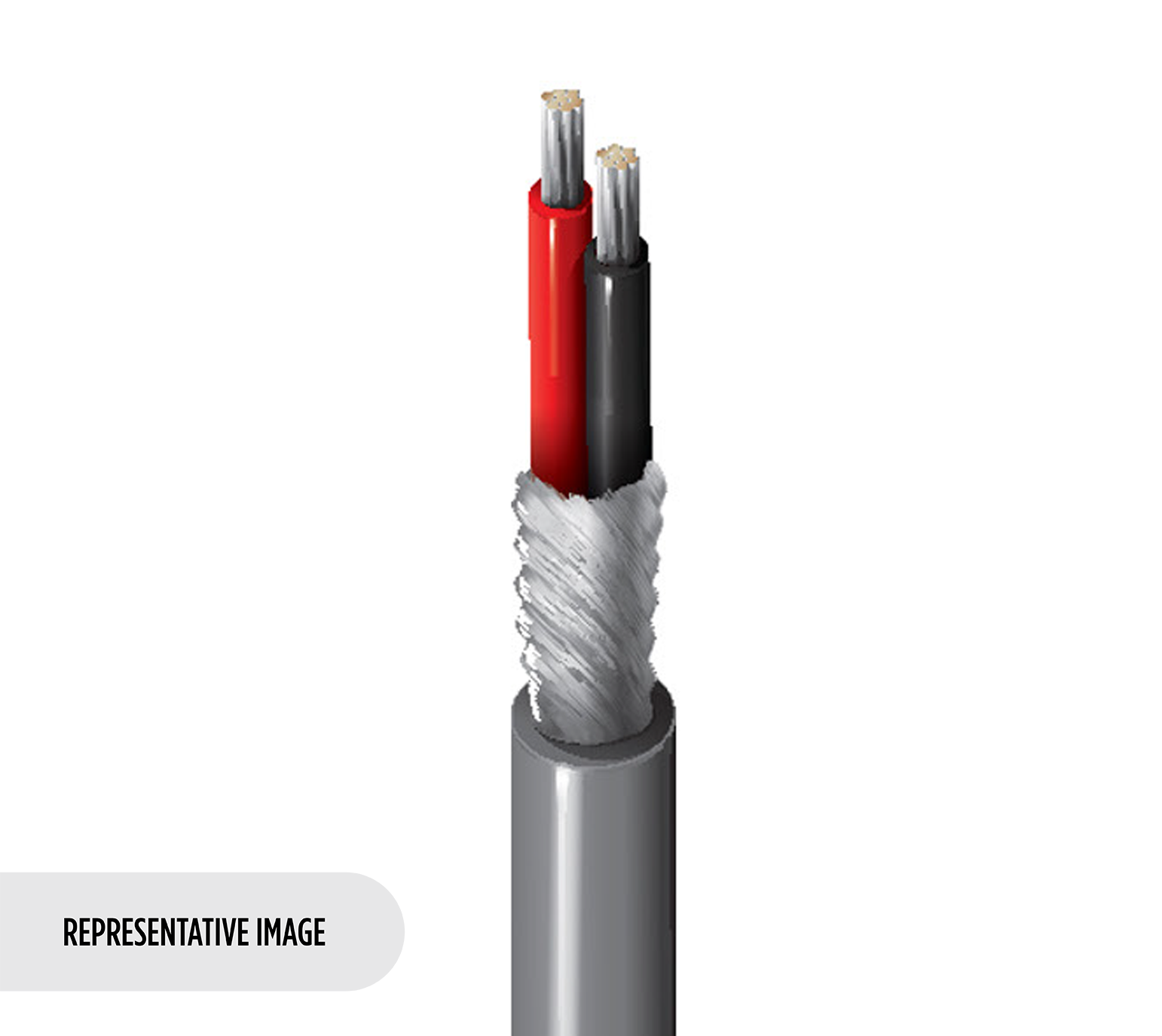

Audio Cable, #20-1pr, TC, O/A Braid, CM

20 AWG stranded (7x28) tinned copper conductors, PVC insulation, twisted pair, tinned copper spiral wrapped shield (90% coverage), PVC jacket.

  • Availability:
    Global
  • Status:
    Active
8759
5 of 5

Specifications

Expand All

Suitable Applications

low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Conductor

Size Stranding Material No. of Pairs
20 7x28 TC - Tinned Copper 1

Insulation

Material Nom. Insulation Diameter Color Code
PVC - Polyvinyl Chloride 0.07 in (1.8 mm) Black & Red

Outer Shield

Shield Type Material Coverage
Spiral Serve / Screen Tinned Copper (TC) 90%

Outer Jacket

Material Nom. Diameter
PVC - Polyvinyl Chloride 0.199 in

Electricals

Nom. Characteristic Impedance
43 Ohm

Voltage

UL Voltage Rating
300 V RMS

Temperature

UL Temperature Operating
80°C -20°C To +80°C

Max. Pull Tension

25 lbs (11 kg)

Bulk Cable Weight

23 lbs/1000ft (34 kg/km)

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor

Flammability / Reaction to Fire

IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

CMG

AWM Compliance

AWM 2095 (300 V 80°C)

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Update and Revision

Revision Number: 0.411 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Update and Revision

Revision Number: 0.411 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Report An Error

Part Numbers

Item # Color Putup Type Length UPC Footnote
8759 060U500 Chrome UnReel 500 ft 612825215448
8759 0601000 Chrome Reel 1,000 ft 612825215080 C
8759 060U1000 Chrome UnReel 1,000 ft 612825215097
