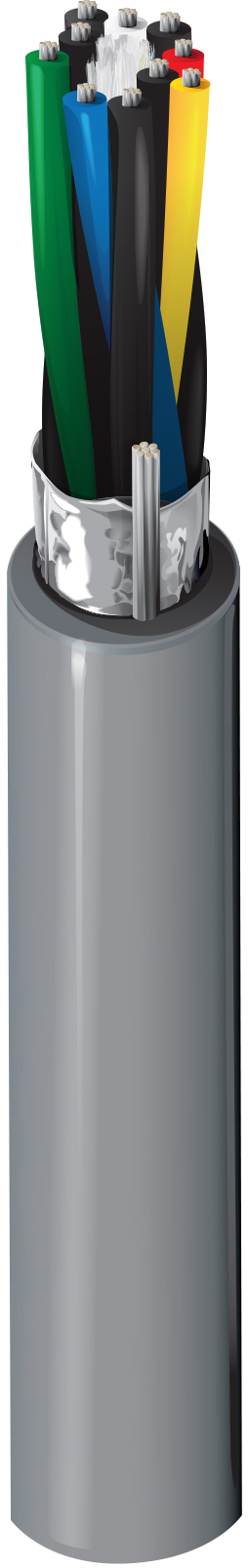

Product Number: 9505NH

RS-232, 5PR #24 Str TC, PO ins, OS, LSZH Jkt, 300V, Dca

5-Pair, 24 AWG stranded (7x32) TC conductors, PE insulation, twisted pairs, overall Beldfoil shield (100% coverage), 24 AWG stranded TC drain Wire, LSZH jacket, Flame resistance IEC 60332-3C

  • Availability:
    Global
  • Status:
    Active
9505NH
  • 9505NH
1 of 1

Specifications

Expand All

Suitable Applications

Instrumentation and computer cable; For EIA RS-232 data transmission applications

Conductor

Size Stranding Material
24 7x32 TC - Tinned Copper

Insulation

Material Nom. Insulation Diameter Color Code
PE - Polyethylene 1.12 mm (0.0441 in) Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow

Outer Shield

Shield Type Material
Tape Bi-Laminate (Alum+Poly)

Outer Jacket

Material Nom. Thickness Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 0.9 mm (0.035 in) 7.5 mm

Electricals

Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
78.7 Ohm/km (24.0 Ohm/1000ft) 59.0 pF/m (18.0 pF/ft) 84.0 pF/m (25.6 pF/ft) 1.5 Amps per Conductor

Nom Outer Shield DCR

55.8 Ohm/km (17.0 Ohm/1000ft)

Voltage

Voltage Rating
300 V

Temperature

Installation Storage
-15°C To +80°C -45°C To +80°C

Bend Radius

Installation Min.
75 mm

Max. Pull Tension

250 N (56 lbf)

Environmental Suitability

Indoor - Euroclass Dca, Indoor, Non-Halogenated, Sunlight Resistance

Flammability / Reaction to Fire

IEC 60332-1-2, IEC 60332-3-24

CPR Compliance

CPR Euroclass: Dca-s2,d2,a1

CENELEC Compliance

EN 50290-2-20

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60%

UK Regulation Compliance

UKCA Mark

Update and Revision

Revision Number: 0.227 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.227 Revision Date: 09-07-2025
