Product Number: UTG1CUP

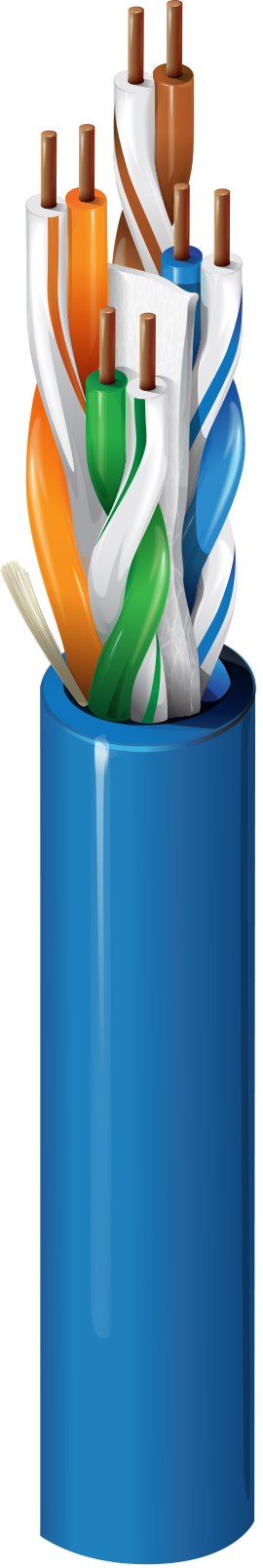

UTG 10 CABLE, 4PR U/UTP, CMP, 23 AWG

UTG 10 PREMISE HORIZONTAL CABLE (425 MHz), 4PR U/UTP, CMP, 23 AWG SOLID CONDUCTORS

  • Availability:
    Global
  • Status:
    Active
UTG1CUP
  • UTG1CUP
1 of 1

Specifications

Report An Error

Suitable Applications

Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155 ATM, 622 ATM, 4K UHD Video Surveillance, PoE Type 4 (100W), 4K UHD HDBaseT, PoH, WiFi (IEEE 802.11ax)

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Conductor

AWG Stranding Material No. of Pairs
23 Solid BC - Bare Copper 4

Conductor Count

8

Total Number of Pairs

4

Insulation

Material
PO+FEP - Polyolefin + Fluorinated Ethylene Propylene

Bonded-Pair

N/A

Color Chart

Number Color
1 White/Blue Stripe & Blue
2 White/Orange Stripe & Orange
3 White/Green Stripe & Green
4 White/Brown Stripe & Brown

Outer Jacket

Material Material Trade Name Nominal Diameter Ripcord
PVC - Polyvinyl Chloride Flamarrest® 0.224 in Yes

Conductor DCR

Max. Conductor DCR Max. DCR Unbalance
78 Ohm/km 3.0 %

Capacitance

Max. Capacitance Unbalance Nom.Mutual Capacitance
330 pF/100m 17 pF/ft

Delay

Max. Delay Max. Delay Skew Nominal Velocity of Propagation (VP) [%]
537.6 ns/100m 35 ns/100m 72%

High Frequency

Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance
1 MHz 2.0 dB/100m 75.3 dB 75.3 dB 73.3 dB 73.3 dB 70.8 dB 67.8 dB 20.0 dB 100 ± 15 Ohm 102 ± 15 Ohm
4 MHz 3.7 dB/100m 66.3 dB 66.3 dB 62.6 dB 62.6 dB 58.8 dB 55.8 dB 23.0 dB 100 ± 15 Ohm 100 ± 15 Ohm
8 MHz 5.2 dB/100m 61.8 dB 61.8 dB 56.6 dB 56.6 dB 52.7 dB 49.7 dB 24.5 dB 100 ± 15 Ohm 100 ± 15 Ohm
10 MHz 5.8 dB/100m 60.3 dB 60.3 dB 54.5 dB 54.5 dB 50.8 dB 47.8 dB 25.0 dB 100 ± 15 Ohm 100 ± 15 Ohm
16 MHz 7.4 dB/100m 57.2 dB 57.2 dB 49.9 dB 49.9 dB 46.7 dB 43.7 dB 25.0 dB 100 ± 15 Ohm 100 ± 15 Ohm
20 MHz 8.3 dB/100m 55.8 dB 55.8 dB 47.5 dB 47.5 dB 44.8 dB 41.8 dB 25.0 dB 100 ± 15 Ohm 100 ± 15 Ohm
25 MHz 9.3 dB/100m 54.3 dB 54.3 dB 45.1 dB 45.1 dB 42.8 dB 39.8 dB 24.3 dB 100 ± 15 Ohm 100 ± 15 Ohm
31.25 MHz 10.4 dB/100m 52.9 dB 52.9 dB 42.5 dB 42.5 dB 40.9 dB 37.9 dB 23.6 dB 100 ± 15 Ohm 100 ± 15 Ohm
62.5 MHz 15.0 dB/100m 48.4 dB 48.4 dB 33.4 dB 33.4 dB 34.9 dB 31.9 dB 21.5 dB 100 ± 15 Ohm 100 ± 15 Ohm
100 MHz 19.3 dB/100m 45.3 dB 45.3 dB 26.0 dB 26.0 dB 30.8 dB 27.8 dB 20.8 dB 100 ± 15 Ohm 100 ± 15 Ohm
155 MHz 24.6 dB/100m 42.4 dB 42.4 dB 17.9 dB 17.9 dB 27.0 dB 24.0 dB 19.5 dB 100 ± 22 Ohm 100 ± 15 Ohm
200 MHz 28.3 dB/100m 40.8 dB 40.8 dB 12.5 dB 12.5 dB 24.8 dB 21.8 dB 18.7 dB 100 ± 22 Ohm 100 ± 15 Ohm
250 MHz 32.1 dB/100m 39.3 dB 39.3 dB 7.2 dB 7.2 dB 22.8 dB 19.8 dB 18.0 dB 100 ± 32 Ohm 100 ± 15 Ohm
300 MHz 35.6 dB/100m 38.1 dB 36.1 dB 2.5 dB 0.5 dB 21.3 dB 18.3 dB 17.5 dB 100 ± 32 Ohm 100 ± 15 Ohm
350 MHz 38.9 dB/100m 37.1 dB 35.1 dB -1.8 dB -3.8 dB 19.9 dB 16.9 dB 17.0 dB 100 ± 32 Ohm 100 ± 15 Ohm
400 MHz 42.0 dB/100m 36.3 dB 34.3 dB -5.7 dB -7.7 dB 18.8 dB 15.8 dB 16.6 dB 100 ± 32 Ohm 100 ± 15 Ohm
450 MHz 45.0 dB/100m 35.5 dB 33.5 dB -9.5 dB -11.5 dB 17.7 dB 14.7 dB 16.2 dB 100 ± 32 Ohm 100 ± 15 Ohm
500 MHz 47.9 dB/100m 34.8 dB 32.8 dB -13.1 dB -15.1 dB 16.8 dB 13.8 dB 15.9 dB 100 ± 32 Ohm 100 ± 15 Ohm
550 MHz 50.6 dB/100m 34.2 dB 32.2 dB -16.4 dB -18.4 dB 16.0 dB 13.0 dB 15.6 dB 100 ± 32 Ohm 100 ± 15 Ohm

Voltage

UL Voltage Rating
300 V RMS

Installation Temperature Range

0°C To +50°C

UL Temp Rating

90°C

Storage Temperature Range

-20°C To +75°C

Operating Temperature Range

-20°C To +75°C

Bulk Cable Weight

26 lbs/1000ft

Max. Pull Tension

25 lbs

Min. Bend Radius/Minor Axis

1.0 in

NEC/(UL) Compliance

CMP 90C, CMP-LP (0.5A), CL3P-LP (0.5A)

CEC/C(UL) Compliance

CMP

CPR Euroclass

Eca

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

Third Party Performance Verification

UTG Framework 1.0

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

Yes

EU CE Mark

Yes

EU REACH SVHC Compliance (yyyy-mm-dd)

2017-07-10

Suitability - Aerial

No

Suitability - Burial

No

Suitability - Hazardous Locations

No

Suitability - Indoor

Yes

Suitability - Non-Halogenated

No

Suitability - Oil Resistance

No

Suitability - Outdoor

No

Suitability - Sunlight Resistance

No

UL Flammability

NFPA 262 Plenum (UL 910)

IEC Flammability

IEC 60332-1-2

Plenum (Y/N)

Yes

Non-Plenum Number

UTG1CUR

Notes

Values above 350 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0.

Update and Revision

Revision Number: 0.56 Revision Date: 04-29-2024

Update and Revision

Revision Number: 0.56 Revision Date: 04-29-2024
