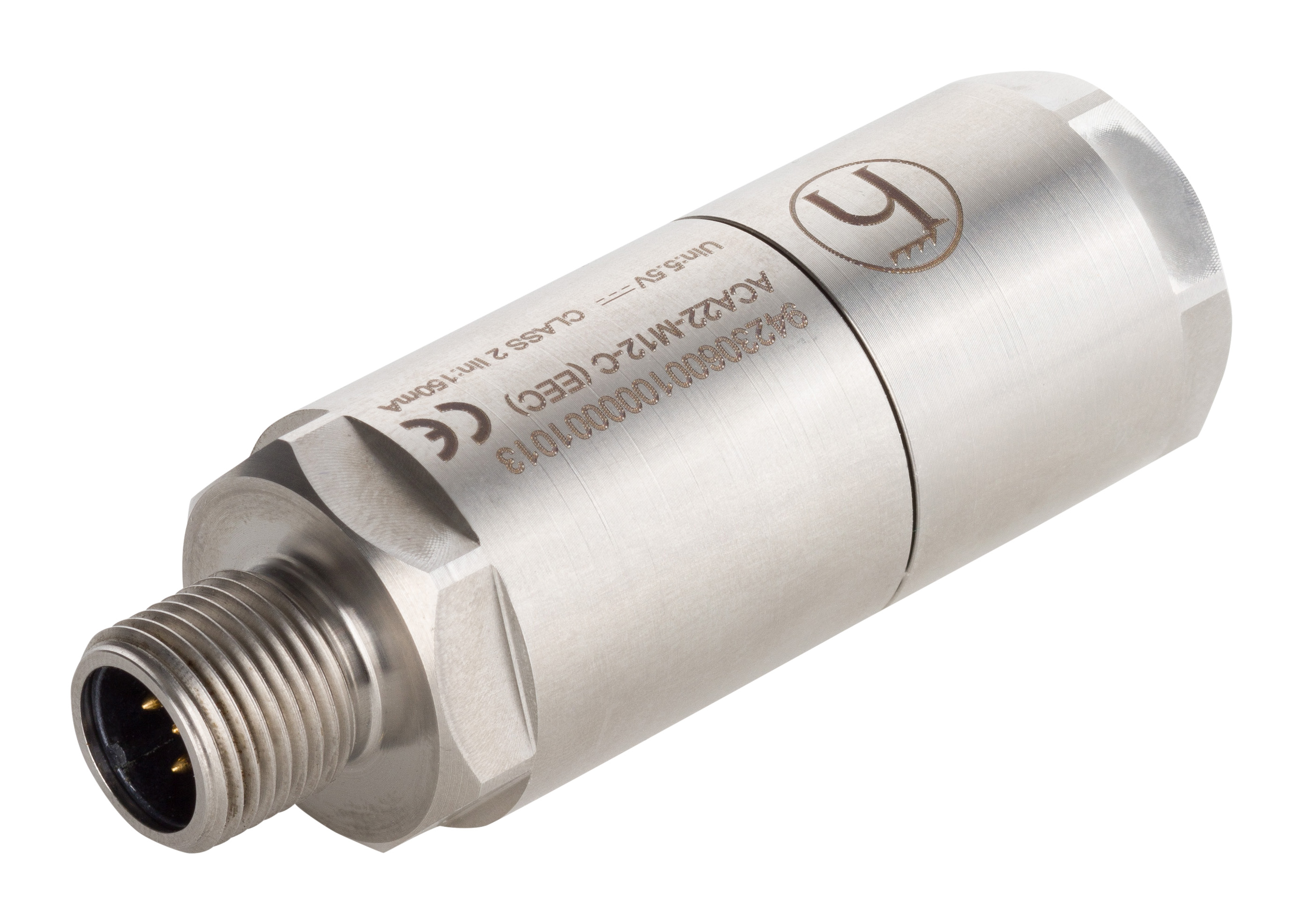

ACA22-M12-C (EEC)

Cordless Auto-configuration adapter 512 MB, M12 (USB 2.0), EEC

...
Cordless Auto-configuration adapter 512 MB, with M12 (USB 2.0) connection and extended temperature range, saves two different versions of configuration data and operating software from the connected switch. It enables managed switches to be easily commissioned and quickly replaced.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
More Interfaces

USB interface on the switch

M12 connection

Power requirements

Operating Voltage

via the USB interface on the switch

Software

Diagnostics

writing to ACA, reading from ACA, writing/reading not OK (display using LEDs on the switch)

Configuration

via USB interface of the switch and via SNMP/Web
Ambient conditions

MTBF

359 years (MIL-HDBK-217F)

Operating temperature

-40-+70 °C

Storage/transport temperature

-40-+85 °C

Relative humidity (non-condensing)

10-95 %

Dimensions (WxHxD)

23 mm × 23 mm × 65 mm

Weight

80 g

Mounting

plug-in module

Protection class

IP67

Mechanical stability

IEC 60068-2-6 vibration

1 g, 10 Hz - 150 Hz, 30 cycles

IEC 60068-2-27 shock

15 g, 11 ms duration, 18 shocks

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)

8 kV contact discharge, 15 kV air discharge

EN 61000-4-3 electromagnetic field

20 V/m

EMC emitted immunity

EN 55032

EN 55032 Class A

Approvals

Shipbuilding

DNV

Transportation

EN50121-4
Reliability

Guarantee

24 months (please refer to the terms of guarantee for detailed information)

Scope of delivery and accessories

Scope of delivery

device, security instructions

History

Update and Revision

Revision Number: 0.15 Revision Date: 10-24-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Type
942306001 ACA22-M12-C (EEC)
