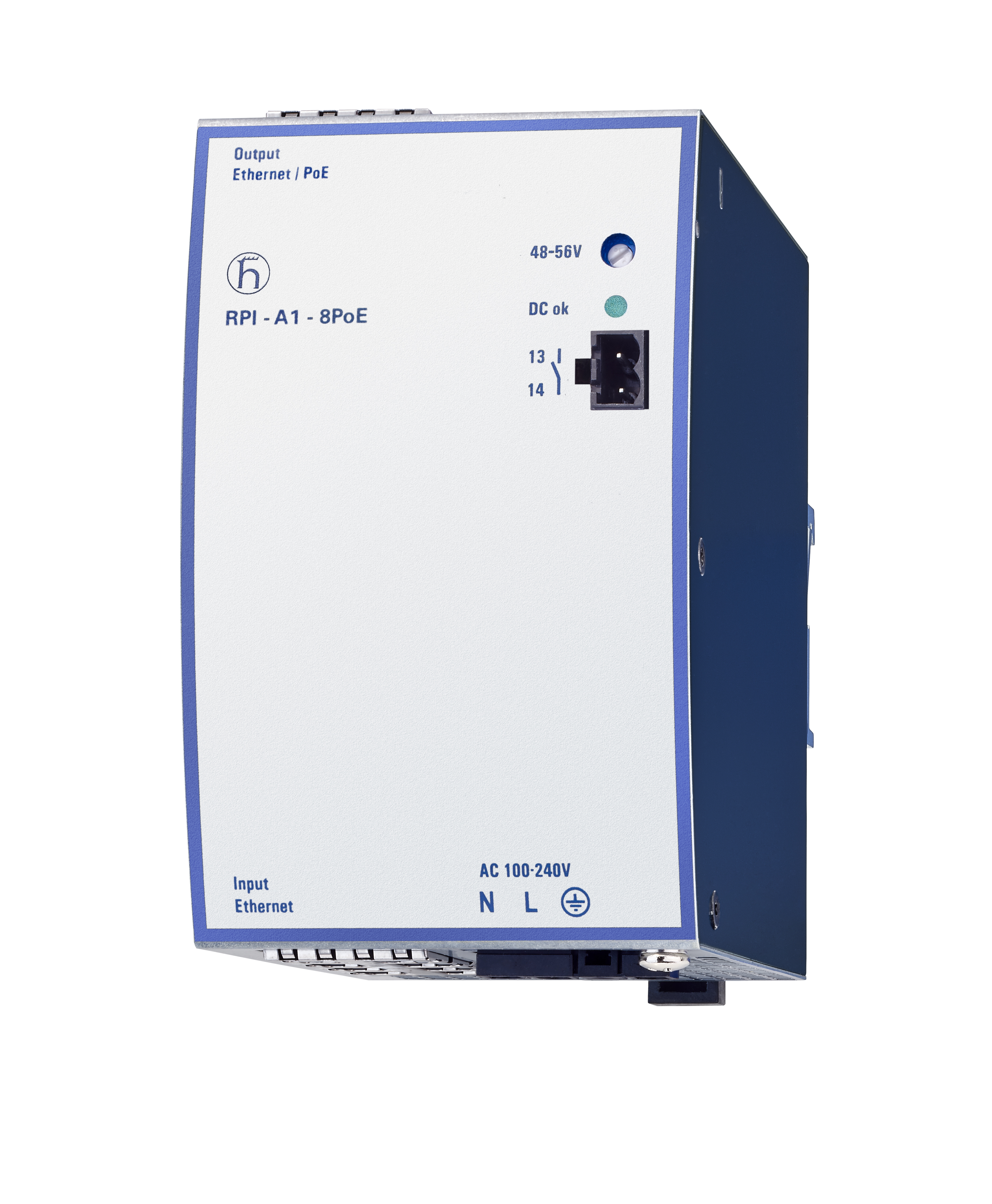

Rail Power Injector, RPI-A1-8PoE

Industrial, fanless Fast/Gigabit PoE Injector, PoE/PoE+ (IEEE 802.3at), 30W (25.5W at load) per port

...
The RPI-A1-8PoE is a DIN-rail mountable single-phase-input power supply with built-in PoE+ injector functionality. It provides a stabilized and galvanically separated SELV/PELV output voltage. It provides 8x RJ45 Ethernet ports for data input and 8xRJ45 Ethernet ports with PoE+ according to standard IEEE802.3at.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product description

Port type and quantity

8 x 10/100/1000 BASE-TX ports

Power requirements

Operating Voltage

110 - 150 VDC and 100 - 240 VAC

Power consumption

280 W

Ambient conditions

MTBF

137 years (48V/5.4A) (according SN29500, IEC61709)

Operating temperature

-25-+60 °C

Relative humidity (non-condensing)

5-95 %

Dimensions (WxHxD)

77 mm x 128 mm x 117 mm

Weight

900 g

Protection class

IP20

Approvals

Safety of industrial control equipment

EN60950-1, EN 61131-2 , cUL60950-1 (pending)

Transportation

EN50121-4
Reliability

Guarantee

24 months (please refer to the terms of guarantee for detailed information)

Further Instructions

Product Documentation

https://www.doc.hirschmann.com

Certificates

https://www.doc.hirschmann.com/certificates.html

History

Update and Revision

Revision Number: 0.88 Revision Date: 04-17-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Type
942224001 RPI-A1-8PoE, PoE Injector
