RPS 80 EEC

24 V DC DIN rail power supply unit

...
24 V DC DIN rail power supply unit
Get Product Alerts
Specifications
Product description

Type

RPS 80 EEC

Description

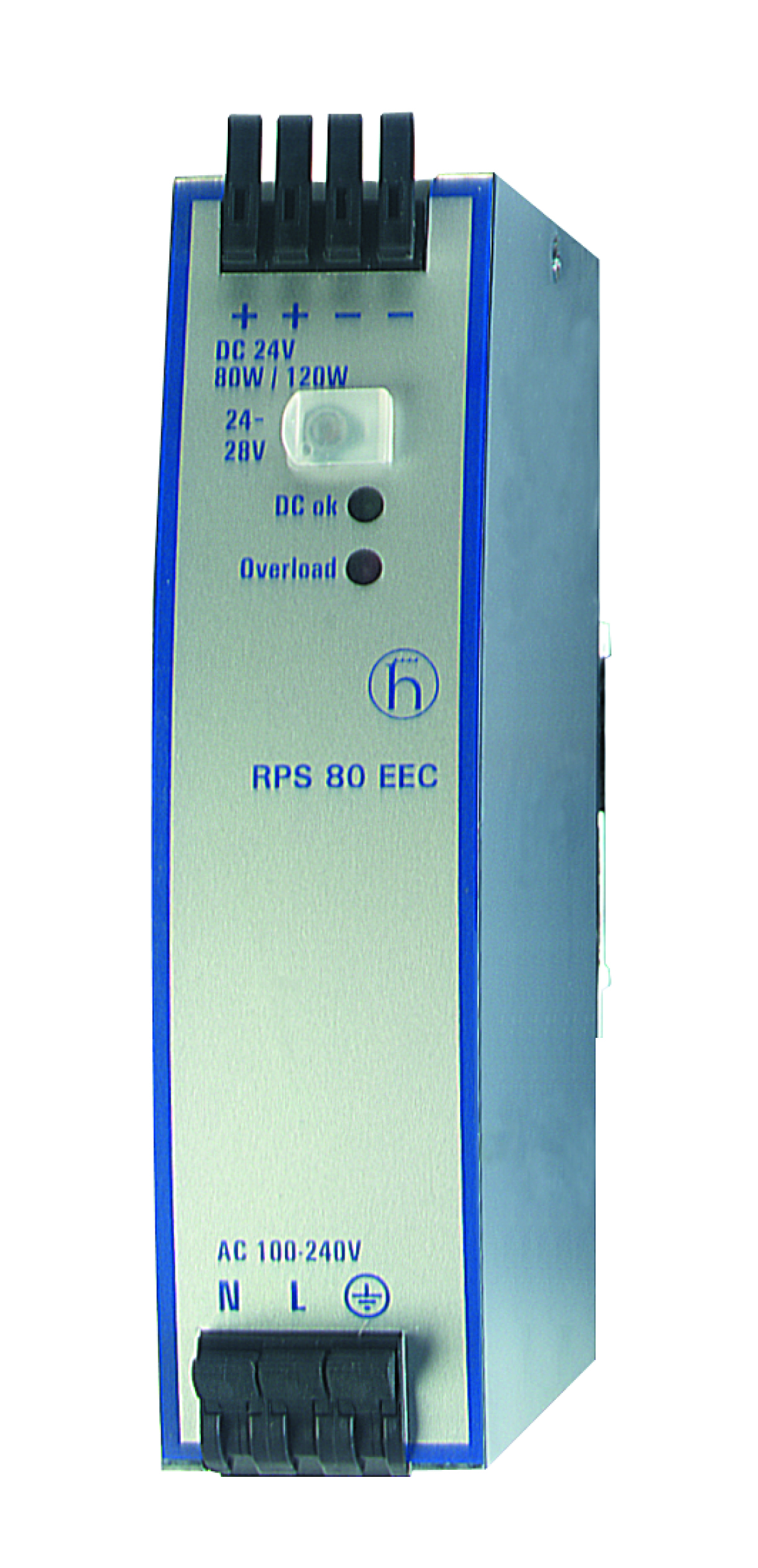

24 V DC DIN rail power supply unit

More Interfaces

Voltage input

1 x Bi-stable, quick-connect spring clamp terminals, 3-pin

Voltage output

1 x Bi-stable, quick-connect spring clamp terminals, 4-pin

Power requirements

Current consumption

max. 1.8-1.0 A at 100-240 V AC; max. 0.85 - 0.3 A at 110 - 300 V DC

Input voltage

100-240 V AC (+/-15%); 50-60Hz or; 110 to 300 V DC (-20/+25%)

Operating Voltage

230 V

Output current

3.4-3.0 A continuous; min 5.0-4.5 A for typ. 4 sec

Redundancy functions

Power supply units can be connected in parallel

Activation Current

13 A at 230 V AC

Power Output

Output voltage

24 - 28 V DC (typ. 24.1 V) external adjustable

Software

Diagnostics

LED (DC OK, Overload)

Ambient conditions

Operating temperature

-25-+70 °C

Note

from 60 ║C derating

Storage/transport temperature

-40-+85 °C

Relative humidity (non-condensing)

5-95 %

Dimensions (WxHxD)

32 mm x 124 mm x 102 mm

Weight

440 g

Mounting

DIN Rail

Protection class

IP20

Mechanical stability

IEC 60068-2-6 vibration

Operating: 2 … 500Hz 0,5m²/s³

IEC 60068-2-27 shock

10 g, 11 ms duration

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)

± 4 kV contact discharge; ± 8 kV air discharge

EN 61000-4-3 electromagnetic field

10 V/m (80 MHz ... 2700 MHz)

EN 61000-4-4 fast transients (burst)

2 kV power line

EN 61000-4-5 surge voltage

power lines: 2 kV (line/earth), 1 kV (line/line)

EN 61000-4-6 Conducted Immunity

10 V (150 kHz .. 80 MHz)

EMC emitted immunity

EN 55032

EN 55032 Class A

Approvals

Basis Standard

CE

Safety of industrial control equipment

cUL 60950-1, cUL 508

Safety of information technology equipment

cUL 60950-1

Hazardous locations

ISA 12.12.01 Class 1 Div. 2 (pending)

Shipbuilding

Germanischer Lloyd

Scope of delivery and accessories

Scope of delivery

Rail power supply, Description and operating manual

Further Instructions

Product Documentation

https://www.doc.hirschmann.com

Certificates

https://www.doc.hirschmann.com/certificates.html

Update and Revision

Revision Number: 0.92 Revision Date: 08-17-2022

Part Numbers
Item # Type
943662080 RPS 80 EEC
