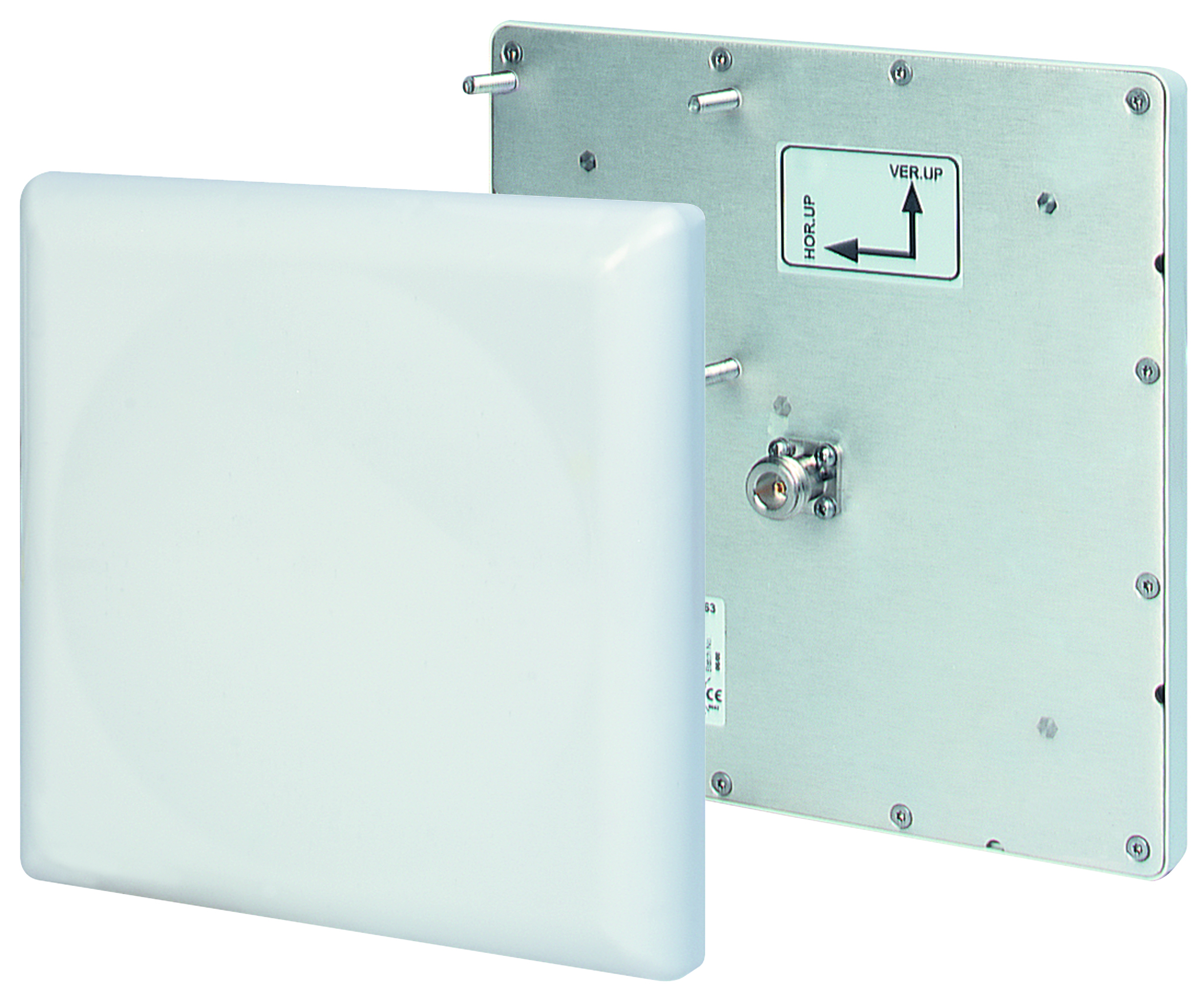

Product Number: BAT-ANT-N-18A-V-IP65

WLAN panel antenna, 19dBi, IP67, Outdoor. 5GHz.

Directional panel antenna for WLAN 5GHz with 19dBi. IP67 and outdoor proof.

  • Availability:
    Global
  • Status:
    Limited Availability/Passive
BAT-ANT-N-18A-V-IP65
5 of 5

Specifications

Expand All

Life Cycle

Limited Availability/Passive - the product is entering End of Life

Discontinuation Announcement Date

2025-03-31

Last Order Date

2025-09-30

Last Delivery Date

2026-03-31

Last Service Date

2028-03-31

Modules

Description Antenna Connector Frequency Band
Module 1 1x N plug (female) 5150-5950 MHz

Signal Gain

19dBi

Dimensions (WxHxD)

190x190x31 mm

Weight

700 g

Guarantee

24 months (please refer to the <a href="https://assets.belden.com/m/1424ddb7a3280e7a/original/Hirschmann-Automation-and-Control-GmbH-Terms-of-Guarantee.pdf"terms of guarantee </a for detailed information)

Warranty

2 years

Suitability - Indoor

Yes

Product Documentation

https://www.doc.hirschmann.com

Update and Revision

Revision Number: 0.123 Revision Date: 02-20-2026

Update and Revision

Revision Number: 0.123 Revision Date: 02-20-2026


Report An Error

Part Numbers

Item # Type
943981006 BAT-ANT-N-18A-V-IP65
