Firewalls - IAF-240

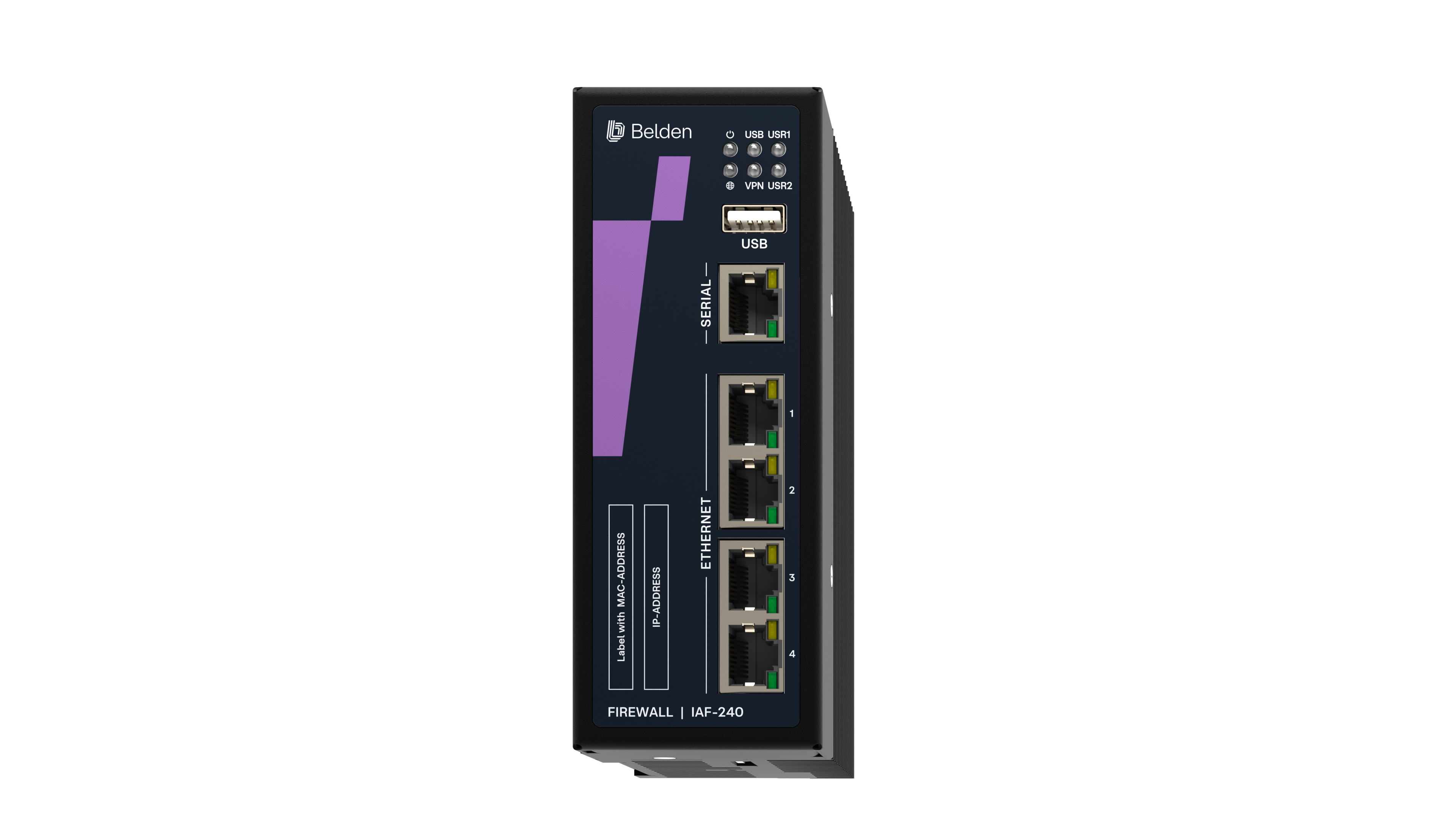

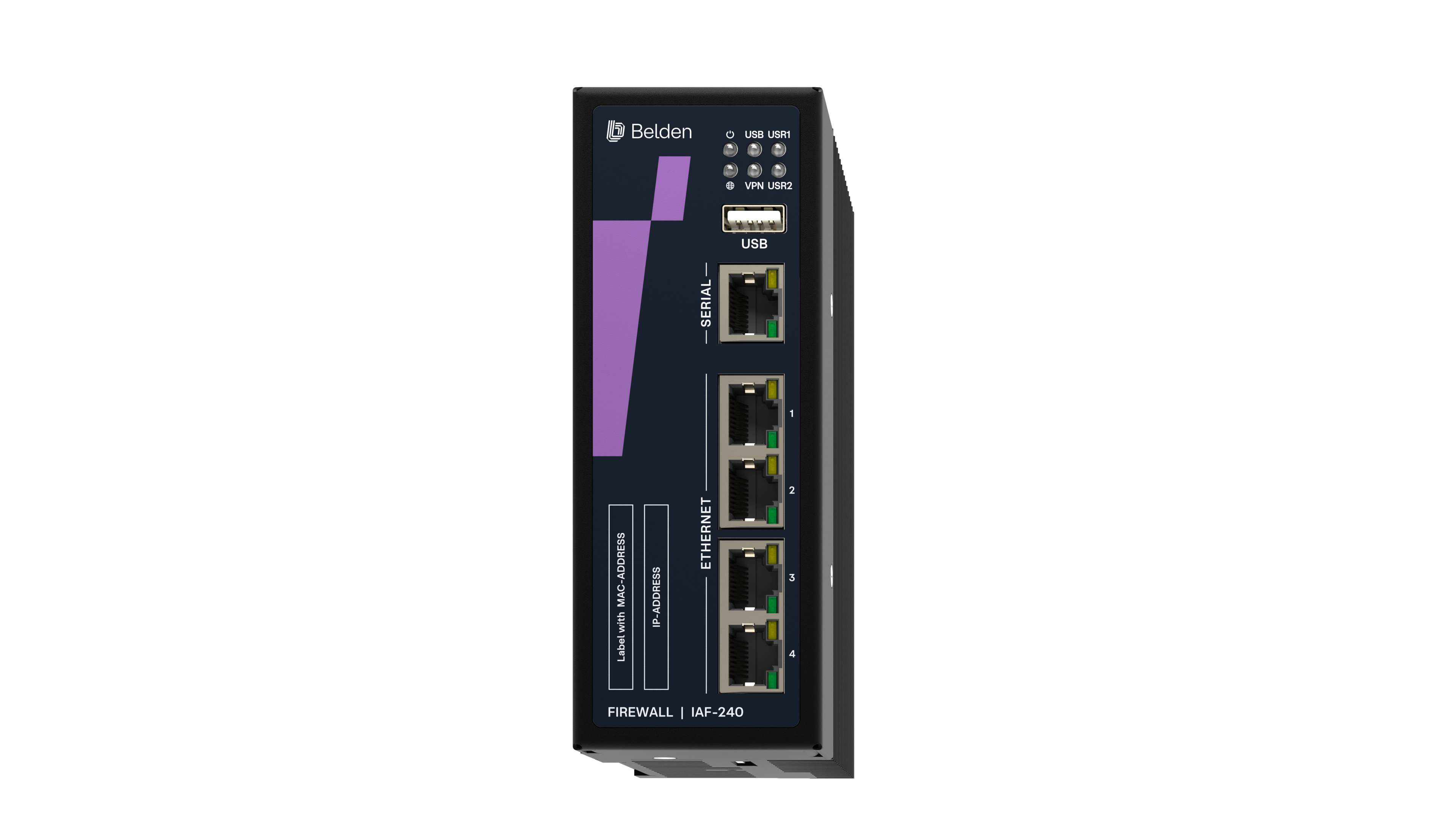

The Belden IAF-240 Industrial Firewall is designed for critical infrastructure and Industry 4.0 applications with four (4) Gigabit Ethernet ports (all RJ45), extended operating temperature range, hazardous location approvals, a quad-core ARM64 CPU, 4 GB LPDDR4 RAM, and 64 GB eMMC storage. This includes a 3-year Pro Edition subscription with advanced firewall, VPN, edge computing, anti-malware, web filtering, high availability, deep packet inspection, web application control, identity awareness, IDS/IPS, and dynamic routing capabilities.

Availability:

Global
Status:

Active
Replacement For: VT AIR 1500 , VT AIR 1200 , VT AIR 600 , VT AIR 100 , VT AIR 310

Quote

Specifications
Resources

Specifications

Expand All

Product description

Type	IAF-240 - PRO
Name	IAF-240 - PRO
Port Type and Quantity	4 x GbE RJ45 ports

More Interfaces

Serial Interface	1 x RJ45 port (RS-232, RS-422, RS-485)
Power Supply	1 x plug-in terminal block, 10-pin

Hardware

Encryption	TPM 2.0 (Trusted Platform Module)

Power requirements

Operating Voltage	Dual 12 – 24 V DC
Power consumption	Minimum 2.5 – 12W Maximum

Security features

Multipoint VPN	IPsec (IKE v2), OpenVPN, WireGuard, WebVPN

Service

Protocols	IPv4, IPv6, NTP, VRRP, SNMPv3, PPPoE, DHCP, DNS, DynDNS, SSH, SSL

Software

Management	Web-based admin dashboard expandable with widgets, Cloud-based Firewall Management Software, High Availability (Configuration Synchronisation, Status Synchronisation, VRRP Virtual IPs), VLAN, Bash, Python Script Support, Quality of Service (QoS), SNMPv3, CRON Jobs, UPnP & NAT-PMP, Setup Wizard
Security	Intrusion Detection & Prevention (IDS/IPS), Web Application Firewall (WAF), Deep Packet Inspection (AMP, DNP3, EtherNet/IP, IEC 61850 GOOSE, IEC104, Modbus TCP, OPC, Siemens S7 and S7 Plus), Anti-Malware, Web Filtering / Blacklisting, Stateful Packet Inspection Firewall (Packet Filtering, Port Filtering), Firewall Learning Mode, Access Control Lists, Certification Management, Let´s Encrypt Support, Network Objects, Application Control, eXpress Data Path
Routing	Layer 3, Layer 2 Bridging, Network Address Translation (NAT), SNAT, DNAT, BiNAT
Application Support and Management	Docker Container

Ambient conditions

MTBF (Telcordia SR-332 Issue 4) @ 25°C	309,149 hours
Operating temperature	-40-+70 °C
Minimum Storage Temperature	-40-+85 °C
Relative humidity (non-condensing)	5-95 %
Dimensions (WxHxD)	48 x 137 x 105 mm
Weight	613 g
Housing Material	Aluminum with DIN clip
Mount Type	DIN Rail 35 mm
Protection class	IP30
Protection Degree / IP Rating**	IP30

Approvals

Basis Standard	CE, FCC
Safety of industrial control equipment	UL 61010
Hazardous locations	ANSI/UL 121201 Class 1 Div. 2 – Haz. Loc, ATEX-114 Category 3G (Zone 2)

Reliability

Guarantee	60 months (please refer to the <a href="https://assets.belden.com/m/1424ddb7a3280e7a/original/Hirschmann-Automation-and-Control-GmbH-Terms-of-Guarantee.pdf"terms of guarantee </a for detailed information)
Warranty	5 Years

Further Instructions

Product Documentation	https://www.doc.hirschmann.com/index.html
Certificates	https://www.doc.hirschmann.com/certificates.html
Software Download	https://my.belden.com/s/downloads
