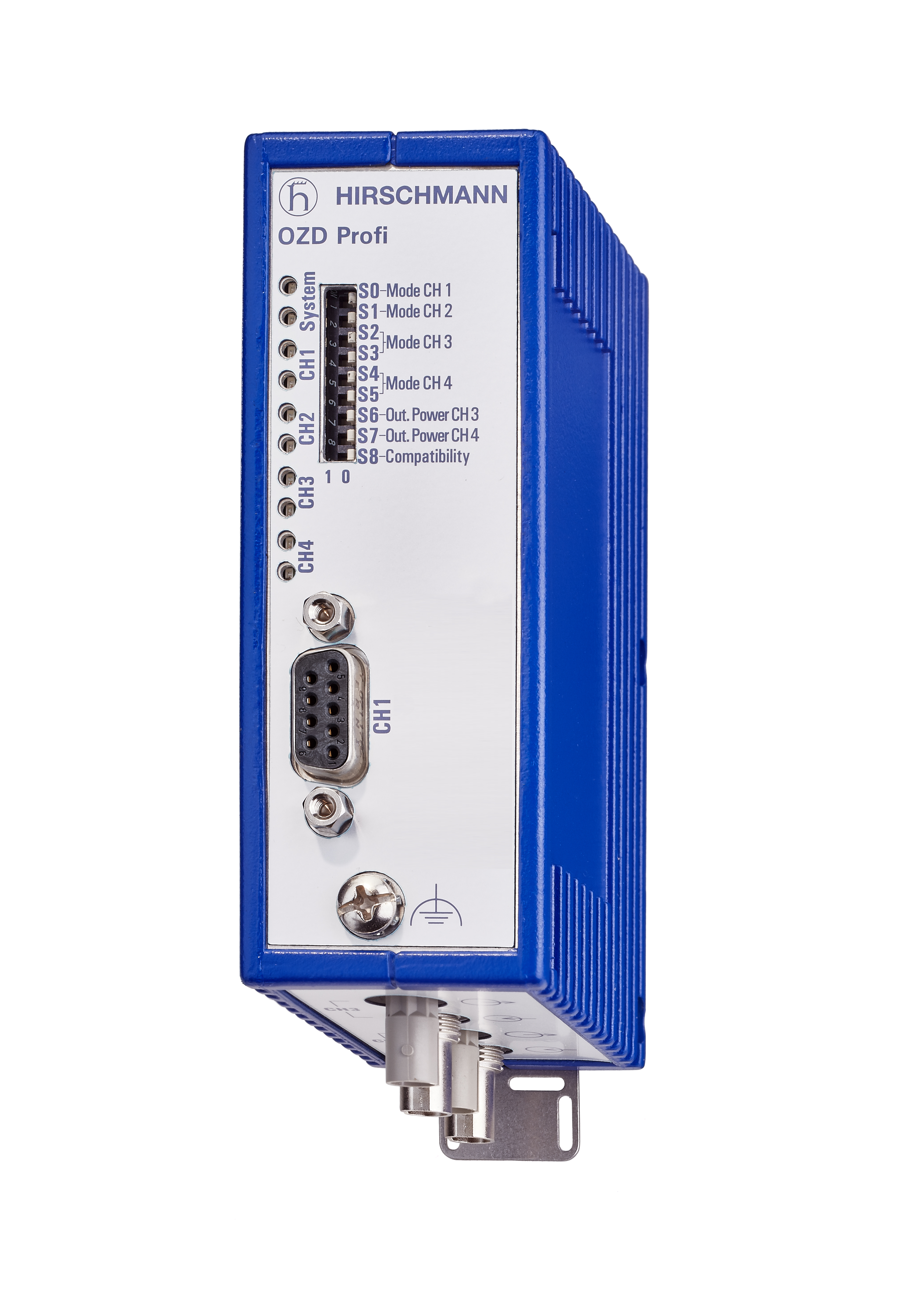

OZD Profi 12M G12-1300
Port type and quantity
2 x optical: 4 sockets BFOC 2.5 (STR); 1 x electrical: Sub-D 9-pin, female, pin assignment according to EN 50170 part 1
PROFIBUS (DP-V0, DP-V1, DP-V2 und FMS)
Measuring outputs "Optical input power"
8-pin terminal block, screw mounting
Single mode fiber (SM) 9/125 µm
15000 m; 10 dB link budget at 1310 nm; A = 0.5 dB/km, 2 dB reserve
Multimode fiber (MM) 50/125 µm
10000 m; 12 dB link budget at 1310 nm; A = 1 dB/km, 2 dB reserve
Multimode fiber (MM) 62.5/125 µm
Multimode fiber HCS (MM) 200/230 µm
Multimode fiber POF (MM) 980/1000 µm
max. 190 mA
Input voltage range
-7 V ... +12 V
18 ... 32 VDC, typ. 24 VDC
HIPER-Ring (ring structure), redundant 24 V infeed
Output voltage/output current (pin6)
5 VDC +5%, -10%, short circuit-proof/10 mA
40 x 140 x 77.5 mm
Relative humidity (non-condensing)
DIN rail or mounting plate
EU Conformity, FCC Conformity, AUS Conformity Australia
Safety of industrial control equipment
ISA 12.12.01 Class 1 Div. 2, ATEX Zone 2
Scope of delivery
device, start-up instructions
