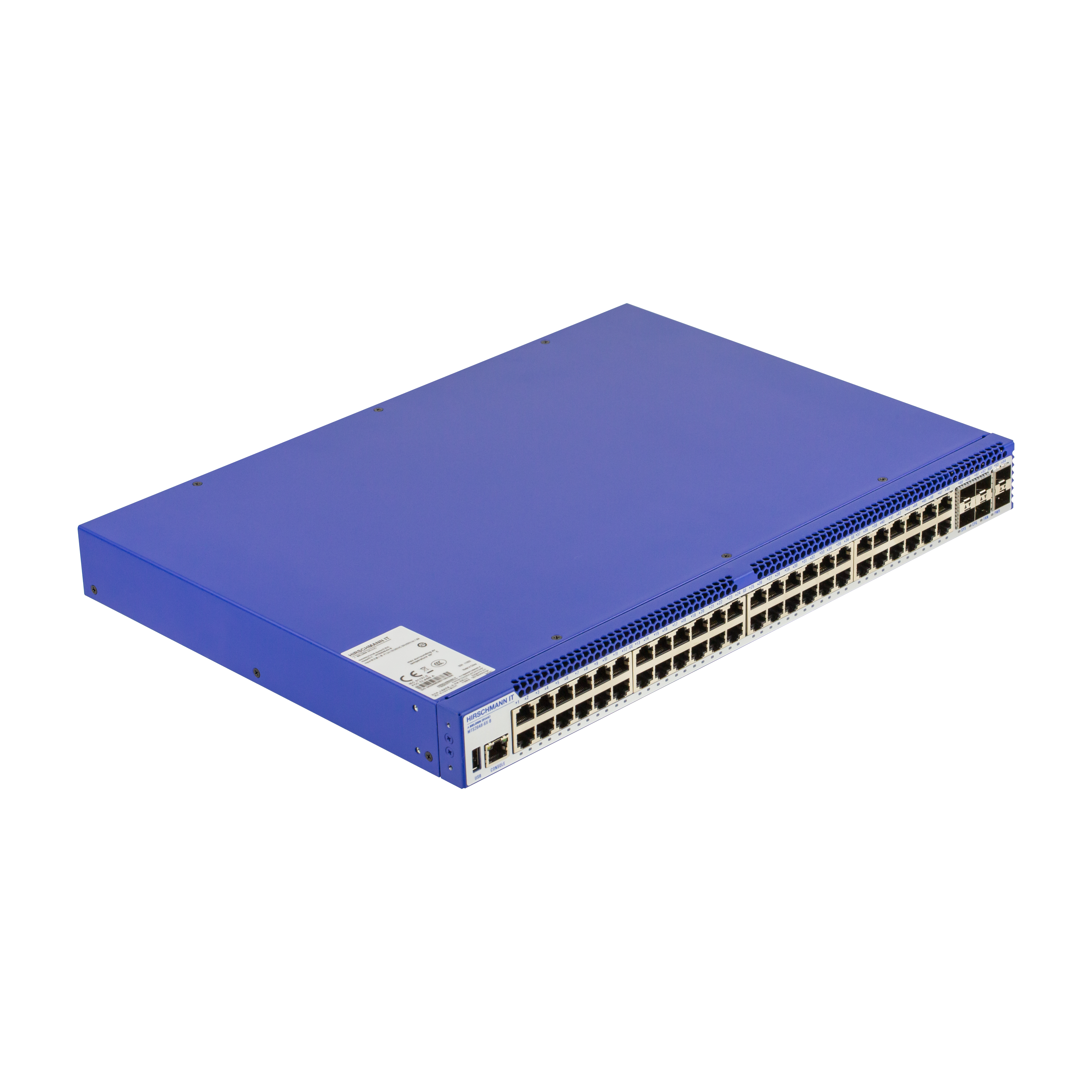

Rack Mount - MTS2648-6X-B

1U rack mount, 48 × FE/GE TX, 6 × 1/10G SFP+ slots, fixed single power supply, basic software

Availability:

Global
Status:

Active

Quote

Specifications
Part Numbers
Resources

Specifications

Product description

Type	MTS2648-6X-B
Name	MTS2648-6X-B
Description	1U rack mount, 48 × FE/GE TX, 6 × 1/10G SFP+ slots, fixed single power supply, basic software
Port Type and Quantity	48 × FE/GE TX, 6 × 1/10G SFP+, 1 × RJ45 Console port, 1 × USB 2.0
Heat Radiation Type	Fixed fan

More Interfaces

Power Supply	Fixed single power supply

Power requirements

Operating Voltage	100-240VAC, 50-60Hz
Power Consumption	75W

Ambient conditions

Permissible Humidity (Storage/Transport)	5% to 95%
Operating temperature	-10-+55 °C
Minimum Storage Temperature	-40-+70 °C
Relative humidity (non-condensing)	10-90 %
Overall Width	442 mm
Overall Height	44.2 mm
Overall Depth	320 mm
Weight	6 kg
Mount Type	Rack mount

Software Specifications


Data link layer protocol and technology	LAN	MAC address learning amount limit; static Mac configuration; black hole MAC
		Dynamic and static ARP; proxy ARP; free ARP
		Ethernet; Ethernet II; VLAN; 802.3x; 802.1p; 802.1Q; 802.3ad
		Q-in-Q and flexible Q-in-Q; VLAN mapping
		STP/RSTP/MST; GVRP; Super VLAN; PVLAN; Voice VLAN; Monitor link; BPDU TUNNEL; PPPOE+
		Multi to one port mirroring; multi to multiport mirroring; RSPAN
Security	Security features	IPv4/v6 ACL; AAA; 802.1X; RADIUS; TACACS+; SSH; port security; user classification; port isolation; UNI/NNI isolation; DHCP snooping; DAI; ARP check; IP source guard; CPU protection
	Attack protection	URPF; LAND attack; SYN Flood attack; Smurf attack; Ping Flood attack; TearDrop attack; Ping of Death attack
Network protocol	Routing protocol	Static router; ECMP; Network load balancing
	Multicast protocol	IGMP PROXY; IGMP filter; MLD v1/v2; IGMP Snooping; MLD v1/v2 Snooping
	IP application	DHCP Client; DNS; Ping; FTP Server; FTP Client; IP Accounting; UDP Helper; NTP
	IPv6	IPv6 basic function: IPv6 ND, IPv6 PMTU, IPv6 ACL, DS-Lite, IPv4/v6 Dual Stack
QoS	Traffic classification	Based on port/MAC address/IP address/IP priority/DSCP priority/TCP or UDP port number/ protocol type etc.
	Traffic policing	CAR
	Congestion management	SP; WRR; SP+WRR
	Congestion avoidance	RED; WRED
Virtualization	Virtualization technology	Stacking, up to 8 devices
Management	Network management	Console port; HTTP; Telnet; SSH management; SNMP v1/v2/v3; RMON 1/2/3/9; SYSLOG; DDMI
	Line management	VCT; UDLD
	Traffic analysis	sFlow traffic analysis
OAM	SLA	Including network delay/network jitter/packet loss rate test
Reliability	Link reliability	ERPS(G.8032) ring network protocol
Data center features		Netconf; M-LAG

Mechanical stability

IEC 60068-2-6 vibration	1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock	15 g, 11 ms duration, 18 shocks

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)	4 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field	10V/m (80-1000MHz), 3V/m (1000-6000MHz)
EN 61000-4-4 fast transients (burst)	2 kV power line, 1 kV data line
EN 61000-4-5 surge voltage	power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 Conducted Immunity	10 V (150 kHz-80 MHz)
EN 61000-4-8 power freq magnetic field	30A/m
EN 61000-4-11 voltagedips,shortinterrupt	0%(20ms), 40%(300ms), 70%(500ms), 0%(5s)

EMC emitted immunity

EN 55032	EN 55032 Class A
EN 61000-3-2	EN 61000-3-2 Class A
EN 61000-3-3	EN 61000-3-3
FCC CFR47 Part 15	FCC 47CFR Part 15, Class A

Approvals

FCC	CE/FCC Compliant
China Network Access Certificate	Compliant
RoHS Compliant	RoHS ((EU) 2015/863) and RoHS (GB/T26572-2011) compliant
CCC	Compliant

Scope of delivery and accessories

Accessories to Order Separately	Network Management Industrial HiVision, SFP
Scope of delivery	Device, console cable, installation package, "*Power cord does not included in the package
