XTran - 1-100G-LW (XT-2215-A)

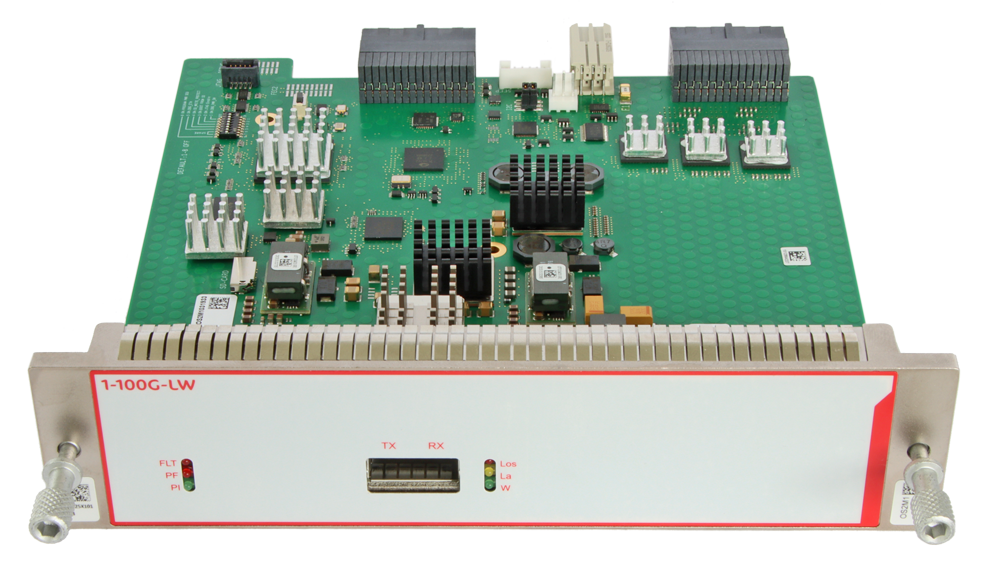

The 1-100G-LW interface module (=IFM) supports 100 Gigabit Ethernet according the IEEE 802.3ba-2010 standard. This standard specifies full duplex point-to-point links. This module provides one 100 Gbps optical LAN/WAN port on the front panel (LAN = Local Area Network; WAN = Wide Area Network). 1-100G-LW refers to ‘1 port – 100 Gigabit – LAN WAN’. This IFM requires a CSM7100-A Central Switching Module. This port is configurable as LAN or WAN (=default) via TXCare (=XTran Management System).This IFM can only be used in core nodes.

Availability:

Global
Status:

Active

Quote

Specifications
Resources

Specifications

Expand All

Product Overview

Product Category	LAN/WAN Interface Card
Name	S30924-Q225-X101
Port Type and Quantity	1x QSFP28 (Fiber, optical): 100GE
Port Mode	WAN

Power requirements

Operating Voltage	+12V
Power Consumption	Measured at 25°C/77°F, with data transport: 27W
Traffic Control & Security	Storm Control; BPDU Guard; IP ACL (max. 1 rule); MAC ACL (max. 1 rule); Sticky MAC; Static MAC Table
Synchronization	Sync-E; PTP IEEE 1588v2 (=Precision Time Protocol): as Transparent Clock
Hardware Features	FEC (on PHY)
Protocol Interaction	BIG (=Backbone Isolation Guard) on RGERP; Dual Homing
Test & Debugging Features	Tunnel Ping; Tunnel Traceroute; Port Mirroring; MAC Monitoring
L2 & L3 Features	LLDP
Configurable Services	Ethernet (WAN side only); Serial Port Server: External TCP client/server

Ambient conditions

MTBF (Telcordia SR-332 Issue 4) @ 25°C	240 Years
Operating Temperature Range	-20° to +55°C (-4° to 131°F)
Storage Temperature Range	-30° to +75°C (-22° to 167°F)
Relative humidity (non-condensing)	0-95 %

Mechanical Construction

Overall Width	186 mm
Overall Height	43.05 mm
Overall Depth	195 mm
Weight	0.48 kg

Approvals

Basis Standard	CE, EN 55032:2015 + A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013 + A2 :2021, EN 55035:2017 + A11:2020, EN IEC 61000-6-1:2019, EN IEC 61000-6-2:2019, EN IEC 61000-6-3:2021, EN IEC 61000-6-4:2019
Safety of industrial control equipment	EN 62368-1:2014
Power Utility	EN 61000-6-5:2015, EN 61850-3:2014 (§6.7), IEEE 1613-2009 (§4), IEEE1613-2013 (clause 5,7,8,9,10)
Transportation	EN 50121-4:2016 + A1:2019

Reliability

Guarantee	Standard 1 year (extension possible)

Further Instructions

Product Documentation	Available via Belden Solutions Portal site
Certificates	Available via Belden Solutions Portal site
Software Download	Available via Belden Solutions Portal site
