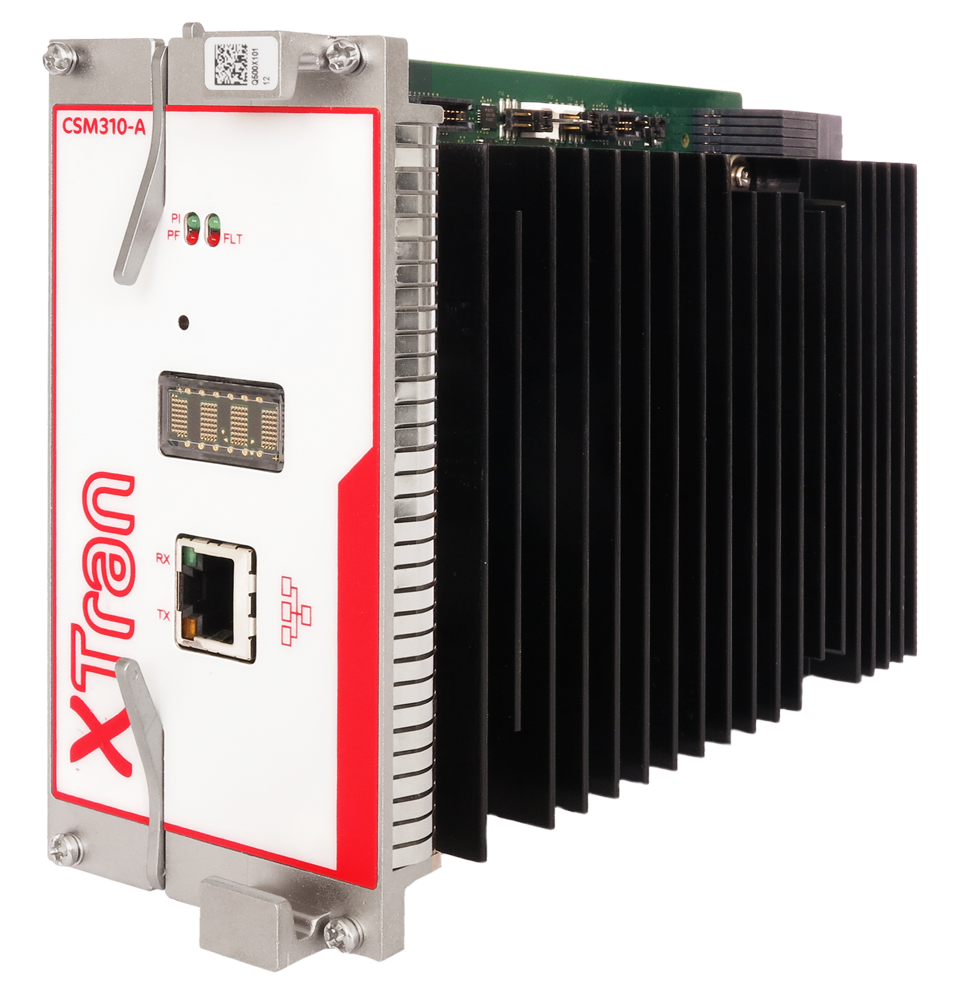

XTran - CSM310-A

The CSM310-A Central Switching module (=CSM) is the heart of the XTran nodes. This module provides the main processing within the XTran nodes via an Integrated Ethernet Multilayer Switch and onboard Traffic Manager. The CSM310-A must be plugged into a CSM slot in the aggregation nodes. The CSM provides the abality to use 10Gbps enable ports, a switching capacity of 64Gbps and makes use of a Stratum 3 clock.

Availability:

Global
Status:

Active

Quote

Specifications
Resources

Specifications

Expand All

Product Overview

Product Category	Central Switching Module
Name	S30924-Q500-X101
Port Type and Quantity	1x RJ-45 management port
Switching Capacity	64 Gbps

More Interfaces

SD-card slot	1 slot: allows for easy replacement in the field

Power requirements

Operating Voltage	+12V
Power Consumption	Measured at 25°C/77°F, with data transport: 27W

Software

Switching	Sub 50ms protection switching in all network topologies (MPLS-TP), Non-blocking 64 Gbps, 95 Mpps (Layer 2 throughput), 32k MAC addresses, 4k Layer 2 Multicast entries, 2k VFI, 4k MPLS entries, BFD hardware support
Management	Auto provisioned and auto setup DCN for management, Full SNMP v3 management (no CLI needed), Management port on each CSM module, 2 input contacts allowing forwarding of local alarms to the TXCare platform, 2 output contacts for local triggering of alarms, Removable memory allowing easy replacement of CSM in the field, Hardware supported OAM, Automatic protection switching via BFD, LSP ping and LSP trace via BFD, Performance monitoring based on Y.1731 Loss and Delay
Diagnostics	Advanced monitoring capabilities based on MPLS-TP OAM enhancements
Security	Sticky MAC for easy locking of MAC address per service, MAC and IP based ACL, SNMPv3 encryption and authentication, Disable unsed portsLocked Node ID’s, Logical separation of services, Centralized user authentication and central event logging, Audit trail
Quality of Service (QoS)	Service priority scheduling independent from user traffic to ensure transport functionality of all traffic, End to end traffic engineering through TXCare, 8 Priorities (6 user definable) Per flow statistics and port counters, 4k Flexible queues, Handling of priority queues Strict Priority Based
MPLS-TP Service	Point to point service (VPWS), Multipoint (VPLS), Logical Ethernet Ring, Protection schemes (1:1, Hitless Switching, ERP logical Rings)
Management Software	Can be fully managed via the TXCare Network Management System. TXCare supports user friendly and fast deployment of the network. Supported by the automatic setup of the DCN and OAM features for continuous monitoring with SNMP v3

Ambient conditions

MTBF (Telcordia SR-332 Issue 4) @ 25°C	222 Years
Operating Temperature Range	-30° to +65°C (-22° to 149°F)
Storage Temperature Range	-30° to +75°C (-22° to 167°F)
Relative humidity (non-condensing)	0-95 %

Mechanical Construction

Overall Width	60.6 mm
Overall Height	126 mm
Overall Depth	195 mm
Weight	1.1 kg
Node Compatibility	XT-1104-A, XT-2206-A, XT-2209-A, XT-2210-A

Approvals

Basis Standard	CE, EN 55032:2015 + A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013 + A2 :2021, EN 55035:2017 + A11:2020, EN IEC 61000-6-1:2019, EN IEC 61000-6-2:2019, EN IEC 61000-6-3:2021, EN IEC 61000-6-4:2019
Safety of industrial control equipment	EN 62368-1:2014
Power Utility	EN 61000-6-5:2015, EN 61850-3:2014 (§6.7), IEEE 1613-2009 (§4), IEEE1613-2013 (clause 5,7,8,9,10)
Transportation	EN 50121-4:2016 + A1:2019

Reliability

Guarantee	Standard 1 year (extension possible)

Scope of delivery and accessories

Accessories to Order Separately	Micro SD Memory Card (16GB Class 10, UHS-I): V30812-A6073-C3

Further Instructions

Product Documentation	Available via Belden Solutions Portal site
Certificates	Available via Belden Solutions Portal site
Software Download	Available via Belden Solutions Portal site
