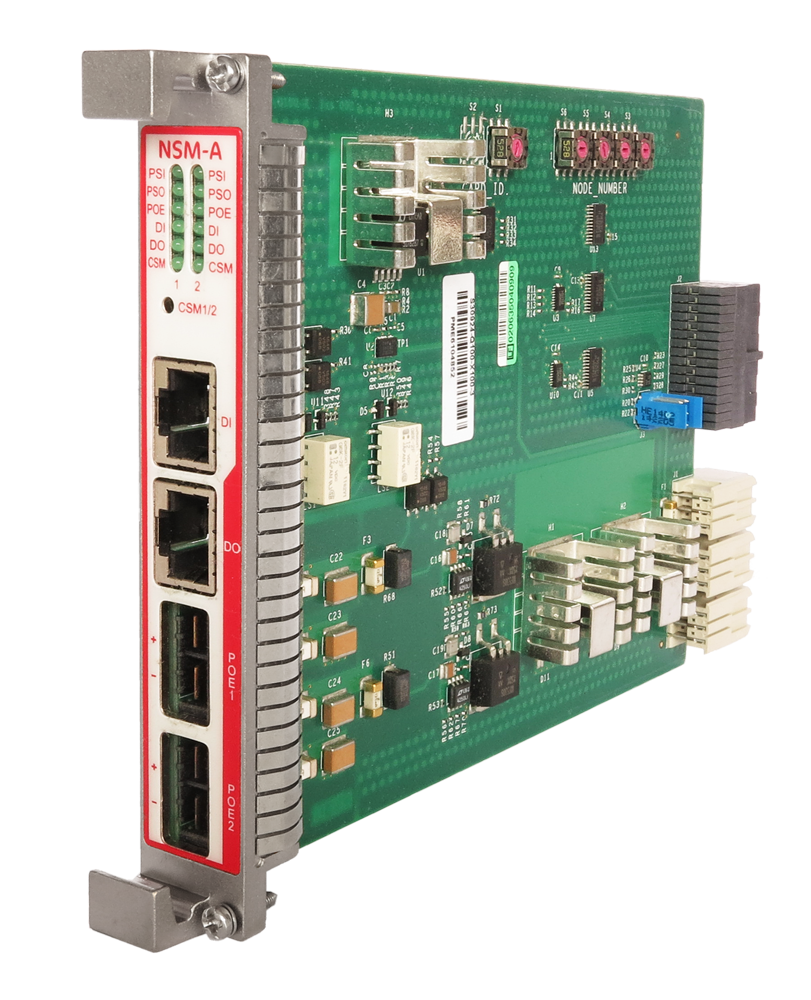

XTran - NSM-A

The NSM-A (Node Support Module) is required in each XTran node and offers via its front panel functionalities like: status indication of PSU(s) and CSM(s), status and connection of digital I/O, status and connection of PoE power inputs (redundant) and a manual switch over of the active CSM via a hidden push button. The node number can be set via rotary DIP switches on the board. The NSM only communicates with the active CSM within its node, does not use XTran bandwidth, can be replaced and is hot-swappable.

Availability:

Global
Status:

Active

Quote

Specifications
Resources

Specifications

Expand All

Product Overview

Product Category	Node Support Module
Name	S30924-Q100-X101
Port Type and Quantity	2x RJ-45 for DI/DO; 2x PoE

Power requirements

Operating Voltage	+12V
Power Consumption	3W
Miscellaneous	Yes: 802.3af (PoE) & 802.3at (PoE+)

Ambient conditions

MTBF (Telcordia SR-332 Issue 4) @ 25°C	786 Years
Operating Temperature Range	With XT-1104-A, XT-2206-A, XT-2209-A, XT-2210-A (aggregation nodes): -30° to +65°C (-22° to 149°F); With XT-2215-A (core nodes): -20° to +55°C (-4° to 131°F)
Storage Temperature Range	-30° to +75°C (-22° to 167°F)
Relative humidity (non-condensing)	0-95 %

Mechanical Construction

Overall Width	20.32 mm
Overall Height	126 mm
Overall Depth	195 mm
Weight	0.21 kg

Approvals

Basis Standard	CE, EN 55032:2015 + A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013 + A2 :2021, EN 55035:2017 + A11:2020, EN IEC 61000-6-1:2019, EN IEC 61000-6-2:2019, EN IEC 61000-6-3:2021, EN IEC 61000-6-4:2019
Safety of industrial control equipment	EN 62368-1:2014
Power Utility	EN 61000-6-5:2015, EN 61850-3:2014 (§6.7), IEEE 1613-2009 (§4), IEEE1613-2013 (clause 5,7,8,9,10)
Transportation	EN 50121-4:2016 + A1:2019
