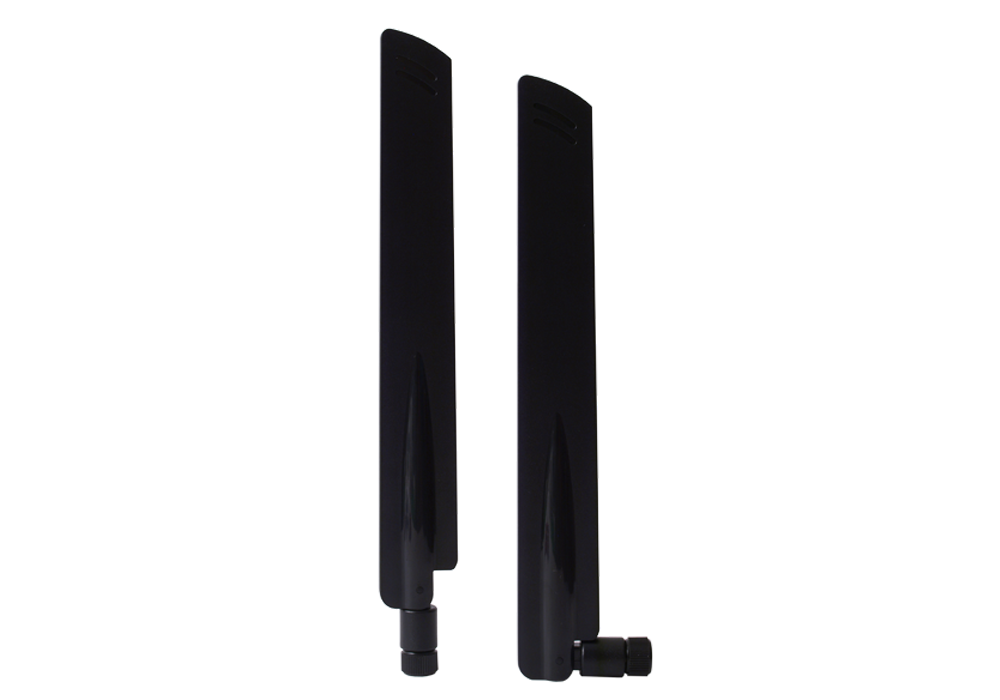

Product Number: Antenna-Port-N

Swivel Antenna for Cellular and WLAN, SMA

Swivel Antenna with 1xSMA for WLAN and Cellular

  • Availability:
    Global
  • Status:
    Active
Antenna-Port-N
5 of 5

Specifications

Expand All

Scope of delivery

1x Antenna

Modules

Description Antenna Connector Additional Radio Features Frequency Band
Module 1 1x SMA male Cellular: 5G, 4G (LTE), 3G (UMTS), 2G (GSM); WLAN: 2.4 GHz, 5 GHz; Impedance 50 Ohm; Radiation Pattern: Omnidirectional Cellular: 700-2700 MHz; WLAN: 2.4 GHz, 5 GHz

Operating temperature

-10-+55 °C

Dimensions (WxHxD)

Antenna: Diameter 27 mm, Height 196 mm

Weight

50 g

Housing Color

black

Mating Side

Bottom

Update and Revision

Revision Number: 0.24 Revision Date: 02-20-2026

Update and Revision

Revision Number: 0.24 Revision Date: 02-20-2026


Report An Error

Part Numbers

Item # Type EAN Code
942998004 Antenna-Port-N 4059759031991
