Product Number: FF4D06LDMFAE

Faceplates and Panels - DCX Preterm Adapter Frame

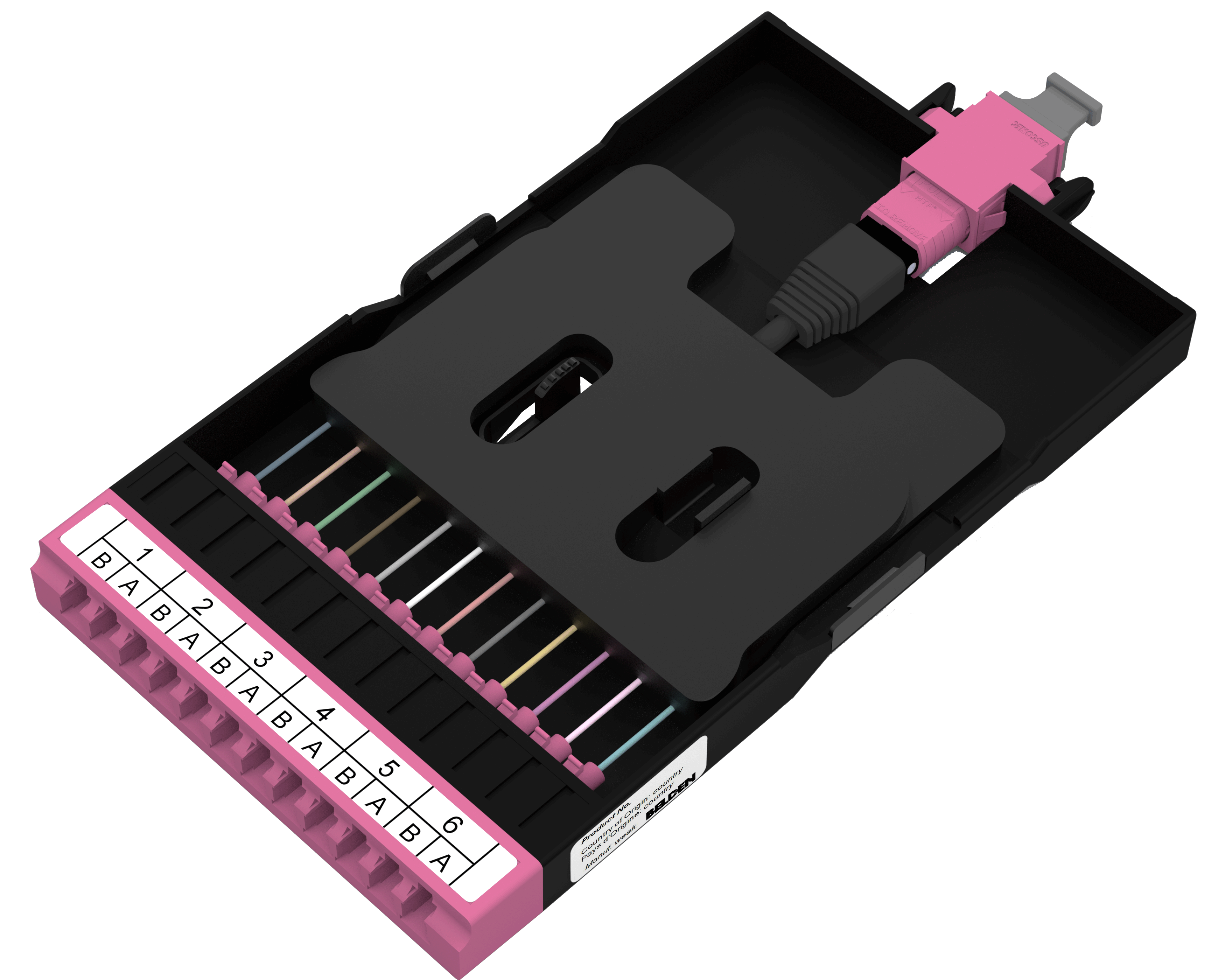

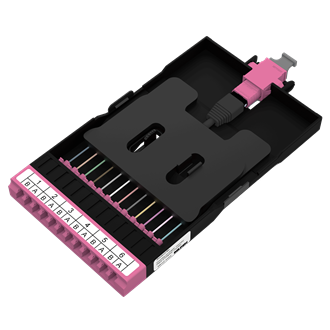

FX DCX FRAME, OM4, 06 PORTS, LC DUPLEX, MPO-12 (FEMALE), TYPE-A, NON-FLIP, ERIKA VIOLET ADAPTERS

  • Availability:
    Global
  • Status:
    Active
FF4D06LDMFAE
  • FF4D06LDMFAE
1 of 1

Specifications

Expand All

Environmental Space

Indoor

Suitable Applications

DCX, Data Centers, Central Equipment Room

Fiber Cable Construction

Fiber Type
OM4

Weight

0.156 lbs

Overall Height

0.5 in

Overall Width

3.4 in

Overall Length

6.8 in

Max Capacity

12 Fibers

Mechanical Tests

Description

Operating Temperature Range

-10°C to +60°C

Storage Temperature Range

-10°C to +75°C

Materials

Description Material Color Type
Adapter Frame Assembly Polycarbonate Black (Frame), Erika Violet (Front Block)
Front Connector Body Plastic - UL94V-0 Erika Violet LC Duplex
Rear Connector/ Adapter Plastic - UL94V-0 Erika Violet MPO Female
Fan-Out Routing Plate Polypropylene Black

Fiber Connector Performance

Description Total Insertion Loss Total Return Loss
OM4 0.35 dB -25 dB

MII Order #39 (China RoHS)

EUP 50

Related Parts

DCX Frames, Modules, and Patch Panels

Packaging

Individually packaged in a plastic shell, Shipped in cardboard box

Notes

For more information, please refer to our web site at http://www.belden.com
