Product Number: FCSD06LAFS

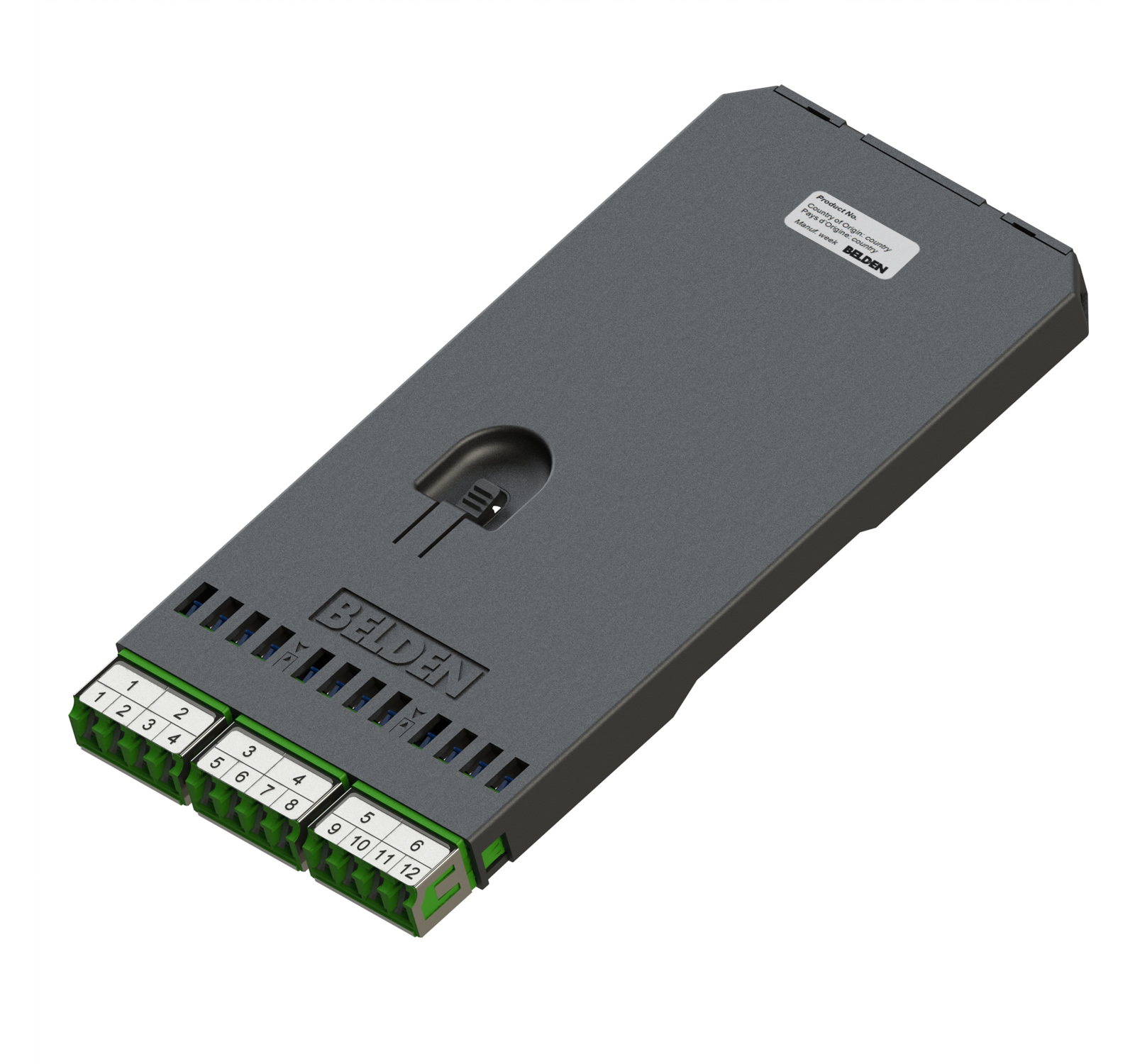

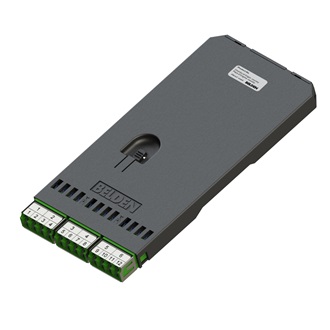

FX DCX Splice Cassette, OS2, 06 Ports LC/APC Duplex

FX DCX Splice Cassette, OS2, 06 Ports LC/APC Duplex, Green Adapters

  • Availability:
    Global
  • Status:
    Active
FCSD06LAFS
  • FCSD06LAFS
1 of 1

Specifications

Expand All

Environmental Space

Indoor

Suitable Applications

Optical Distribution Frame, Data Centers, Central Equipment Room

Fiber Cable Construction

Fiber Type
OS2

Weight

0.137 lbs

Overall Height

0.448 in

Overall Width

3.39 in

Overall Length

6.89 in

Mechanical Tests

Description

Front Connection

Static

Operating Temperature Range

-10 to 60°C

Storage Temperature Range

-10 to 60°C

Materials

Element Description Color
Zirconia-Ceramic Adapter Sleve Material
Plastic - UL94V-0 Front Connector Body Green
Plastic - UL94V-0 Cassette Assembly Black

Related Parts

DCX Frame Module & Patch Pannel

Packaging

Individually packaged in a plastic shell, Shipped in cardboard box

Update and Revision

Revision Number: 0.237 Revision Date: 10-21-2025

Update and Revision

Revision Number: 0.237 Revision Date: 10-21-2025


Report An Error

Part Numbers

Item # Color Connector Type
FCSD06LAFS Green LC Duplex
