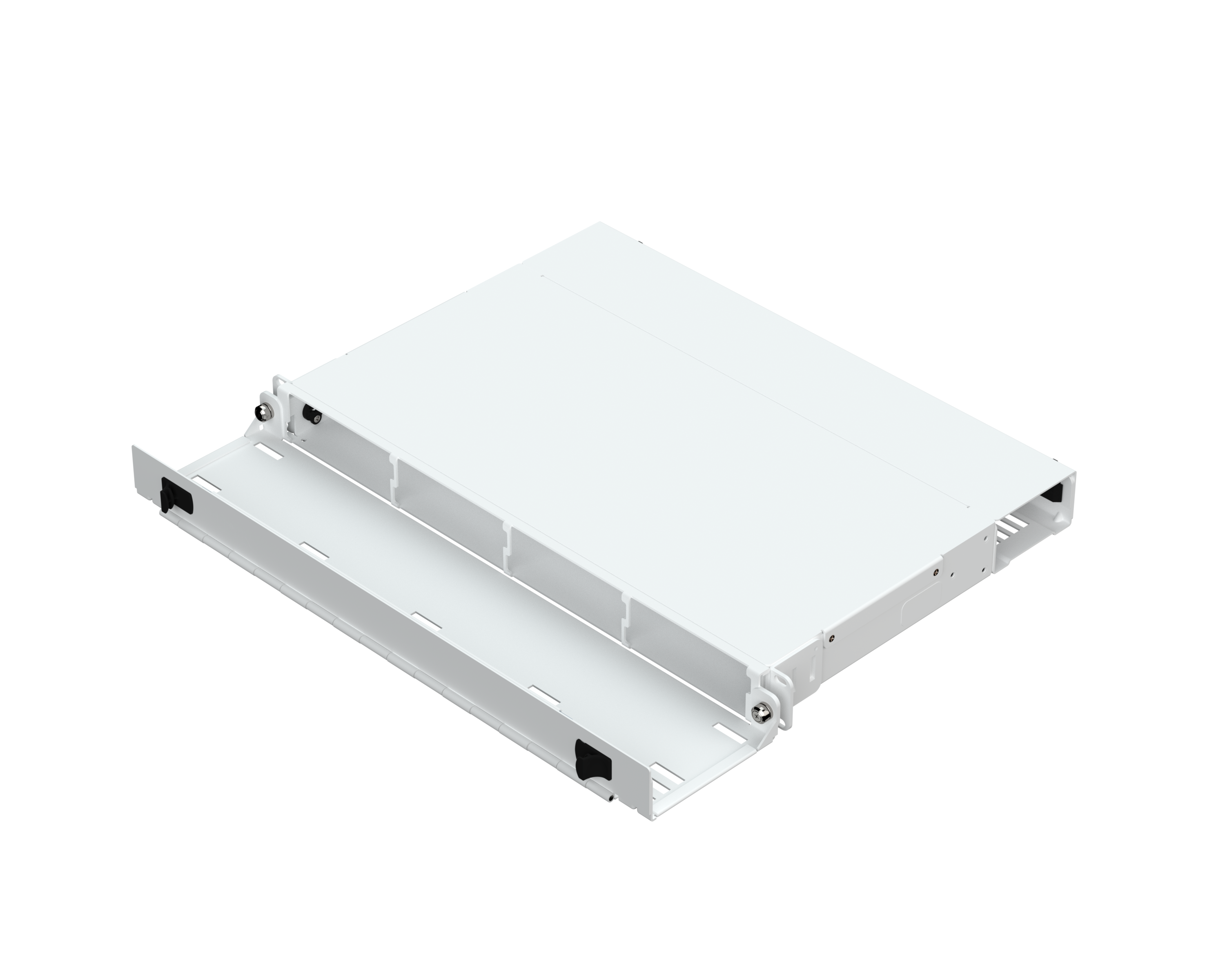

AX107268

FX UHD 1U PATCH PANEL HOUSING EMPTY, SIGNAL WHITE FINISH

...
FIBER EXPRESS ULTRA HD PATCH PANEL HOUSING 1U, EMPTY, SIGNAL WHITE

Regions Available: Global
Get Product Alerts

Specifications
Product Overview

Environmental Space

Indoor

Suitable Applications

FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers

Construction

Weight

8 lbs

Height

1.75 in

Width

19 in

Length

16.75 in

Physical Specifications

Max Capacity

4 FX UHD Frame/Cassettes

Inner Jacket

Inner Jacket

Inner Jacket

Mechanical Characteristics
Mechanical Tests
Description

Front Connection

Static FX UHD / 1 inch Pullout FXU

Temperature Range

Operating Temperature Range

-10°C to +60°C

Storage Temperature Range

-40°C To +70°C

Product Material
Materials
Description Material
Panel Steel/Aluminum
Door Aluminum
Standards

MII Order #39 (China RoHS)

EUP 50

Related Part Numbers

Included Parts

Screws (12-24); Screws (10-32); Tie Wraps; Kurly locks; Velcro Straps; Mkr Wire Card-Blue; Identification Labels

Related Parts

FiberExpress Ultra and Ultra High Density Frames and Cassettes

Product Notes

Packaging

Individually packaged in a cardboard box.

Notes

For more information, please refer to our web site at http://www.belden.com. Installation Guide: PX105677.

History

Update and Revision

Revision Number: 0.14 Revision Date: 10-16-2024
