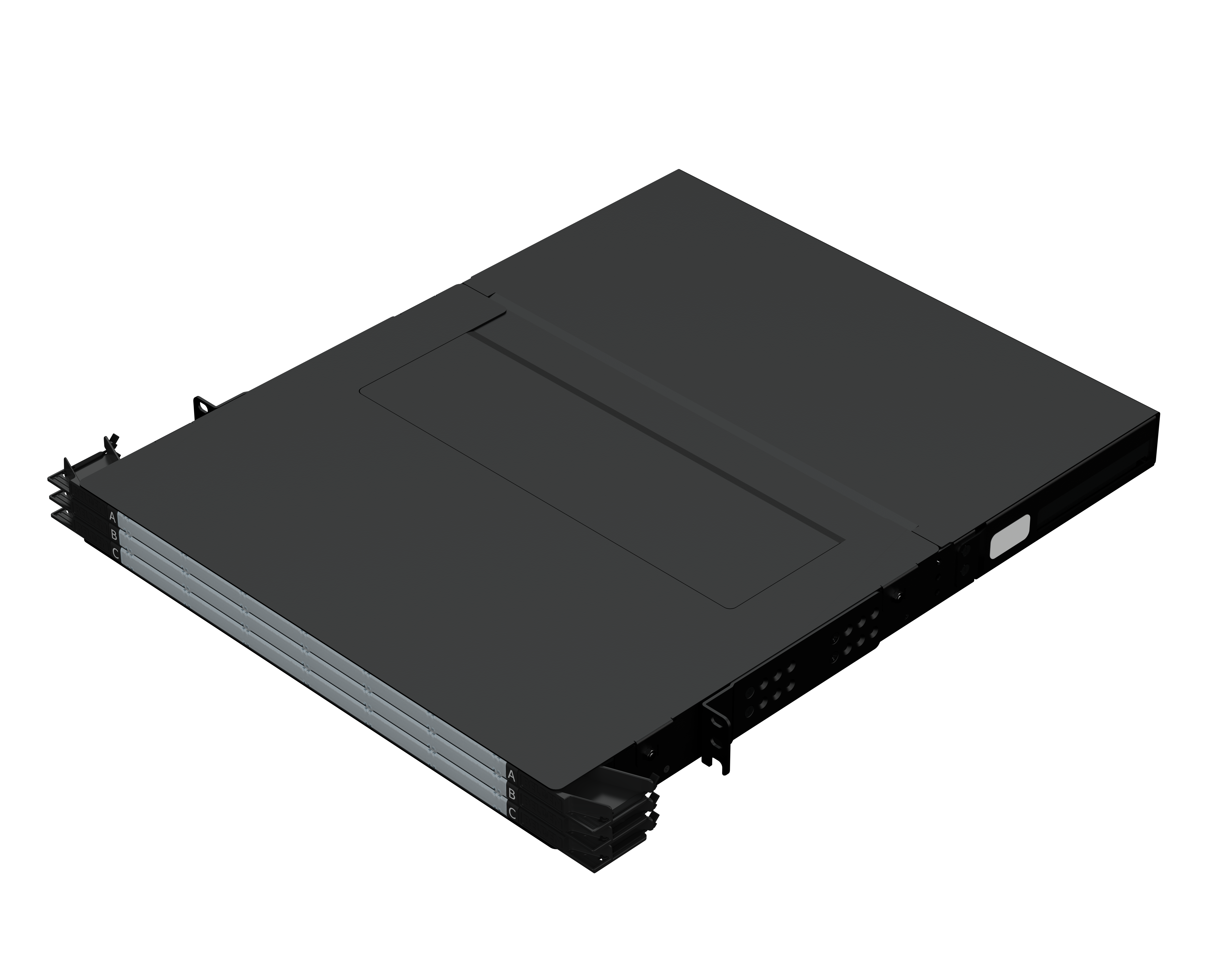

DCX RACKMOUNT 144F 1U PATCH PANEL HIGH DENSITY

Availability:

Global
Status:

Active

Quote

Specifications
Resources

Specifications

Product Overview

Environmental Space	Indoor
Suitable Applications	Optical Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers

Construction

Weight	7.5 lbs
Overall Height	1.75 in
Overall Width	19.55 in
Overall Length	21.96 in

Physical Specifications

Max Capacity	144 Terminations (LC) : 12 Cassettes, Base - 12/ 18 Cassettes, Base - 8

Mechanical Characteristics

Mechanical Tests

Description

Temperature Range

Operating Temperature Range	-10°C To +60°C
Storage Temperature Range	-10°C to +60°C

Product Material

Materials

Description	Material
Housing	Steel
Cable Tray	PC/ABS & Steel
Label Holder	Polycarbonate

Standards

MII Order #39 (China RoHS)	EUP 50

Related Part Numbers

Related Parts	DCX Cassettes, Adapter Frames, MPO Trunks, Patch Cord

Product Notes

Packaging	Individually packaged in a cardboard box.
Notes	1. Hardware Kit contains: Screws (12-24); Screws (10-32); 2 Velcro cable tie; Tie Wraps. 2. DCX-01RU is recommended for top-of-rack applications. As a best practice of installation, stacking of multiple DCX-01RU should be avoided. Usage of DCX-02RU and DCX-04RU is recommended to faciliate higher number of fiber terminations. 3. Ensure sufficient vertical clearance above the panel to allow proper access to the top tray’s latch mechanism. Avoid installing components that protrude forward from the rack (e.g., horizontal cable managers) directly above the panel, as they may obstruct access to the top tray's latch.
