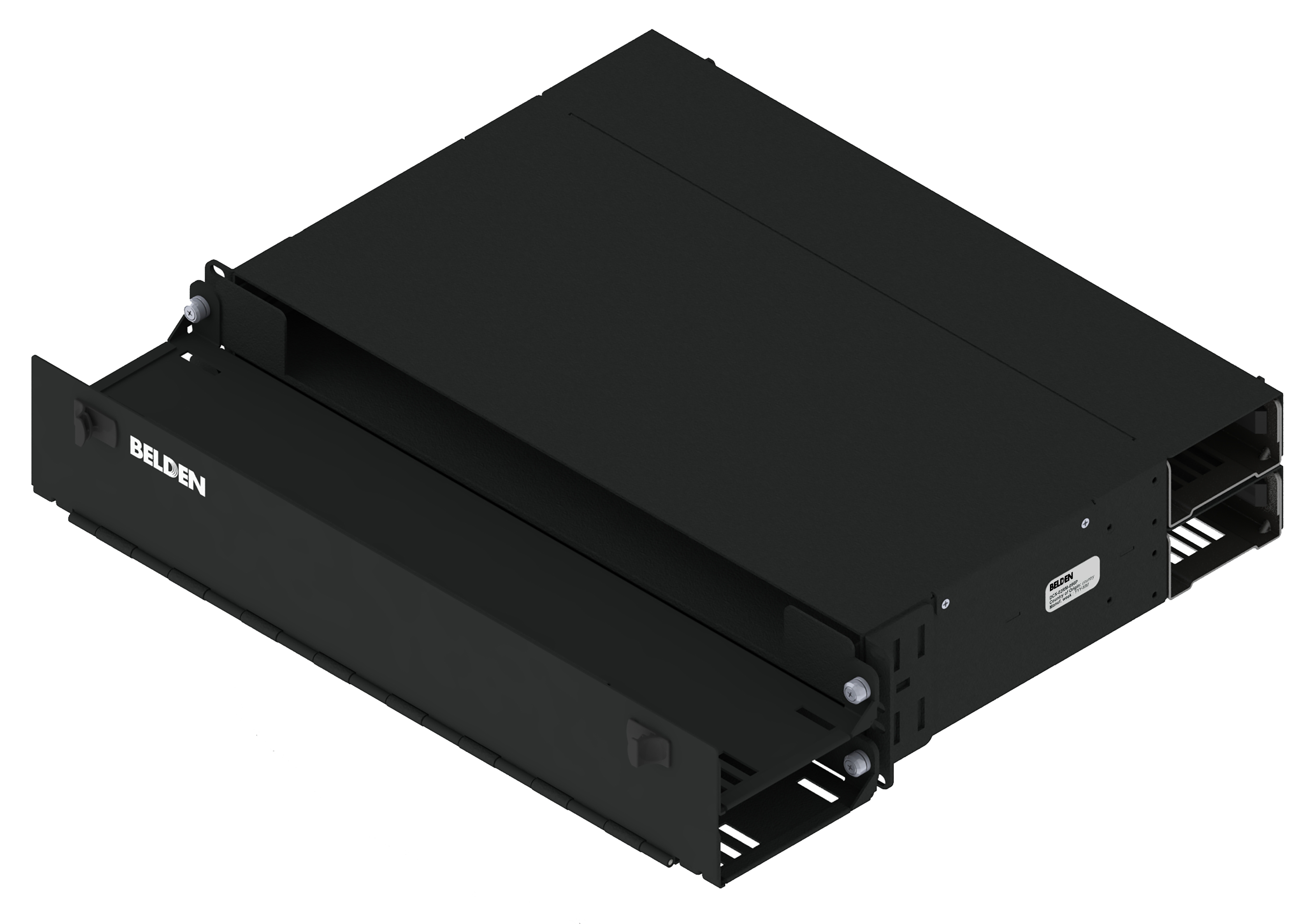

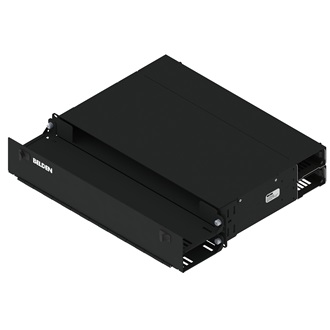

Product Number: DCX-02RM-096P

DCX 2U PATCH PANEL 96P 2 TRAYS EMPTY BLACK FINISH

DCX 2U PATCH PANEL HOUSING 96-PORT (2 TRAYS) EMPTY, BLACK FINISH

  • Availability:
    Global
  • Status:
    Active
DCX-02RM-096P
  • DCX-02RM-096P
1 of 1

Specifications

Expand All

Suitable Applications

Optical Solutions, Backbone, Telecommunication Rooms, Main Distribution Rooms, Data Centers

Weight

15.000 lbs

Overall Height

3.470 in

Overall Width

19.000 in

Depth

17.500 in

Max Capacity

96 Ports (192 Fibers - LC): 8 Cassettes - Base-24 / 16 Cassettes - Base-12 / 24 Cassettes - Base-8

Mechanical Tests

Description

Front Connection

Static

Operating Temperature Range

-10°C to +60°C

Storage Temperature Range

-10°C to +60°C

Materials

Description Material
Housing Steel
Housing PC/ABS
Housing Polycarbonate

TIA/EIA Compliance

EIA/ECA 310

MII Order #39 (China RoHS)

EUP 50

Included Parts

Hardware Kit (see notes)

Related Parts

DCX Cassettes, Adapter Frames, MPO Trunks, Patch Cords

Packaging

Individually packaged in a cardboard box.

Notes

Hardware Kit contains: Screws (12-24); Screws (10-32); Velcro cable tie; Wire marker card-blue-brady; Tie Wraps; Kurly locks; Installation guide

Update and Revision

Revision Number: 0.171 Revision Date: 10-23-2025

Update and Revision

Revision Number: 0.171 Revision Date: 10-23-2025


Report An Error

Part Numbers

Item # Color
DCX-02RM-096P Black
