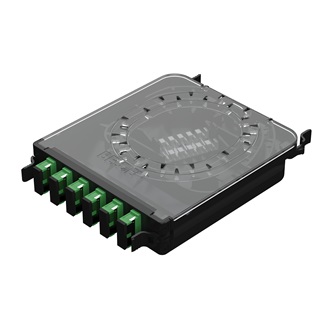

FCSX06SAFS

FX ECX CASS OS2 06P SPLICING, SC_DX/APC

...
FX ECX CASSETTE, OS2, 06 PORTS, SPLICING, SC/APC DUPLEX, GREEN ADAPTERS

Regions Available: Global
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Environmental Space

Indoor

Suitable Applications

FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers

Construction
Fiber Cable Construction
Fiber Type
OS2

Weight

0.584 lbs.

Height

1.300 in

Width

6.340 in

Length

8.740 in
Physical Specifications

Max Capacity

12 Fibers

Inner Jacket

Inner Jacket

Inner Jacket

Mechanical Characteristics
Mechanical Tests
Description

Front Connection

Static

Temperature Range

Operating Temperature Range

-10°C To +60°C

Storage Temperature Range

-10°C To +75°C

Product Material
Materials
Description Material Color Type
Adapter Sleeve Zirconia-Ceramic
Front Connector Body Plastic - UL94V-0 Green SC/APC Duplex
Cassette Assembly Plastic - UL94V-0 Black
Standards

MII Order #39 (China RoHS)

EUP 50

Related Part Numbers

Included Parts

Rubber strip, cable ties

Related Parts

FX ECX Panels

Product Notes

Packaging

Individually packaged in a plastic shell, shipped in cardboard box (12/box)

Notes

Splice holder is included.

History

Update and Revision

Revision Number: 0.166 Revision Date: 02-19-2025
