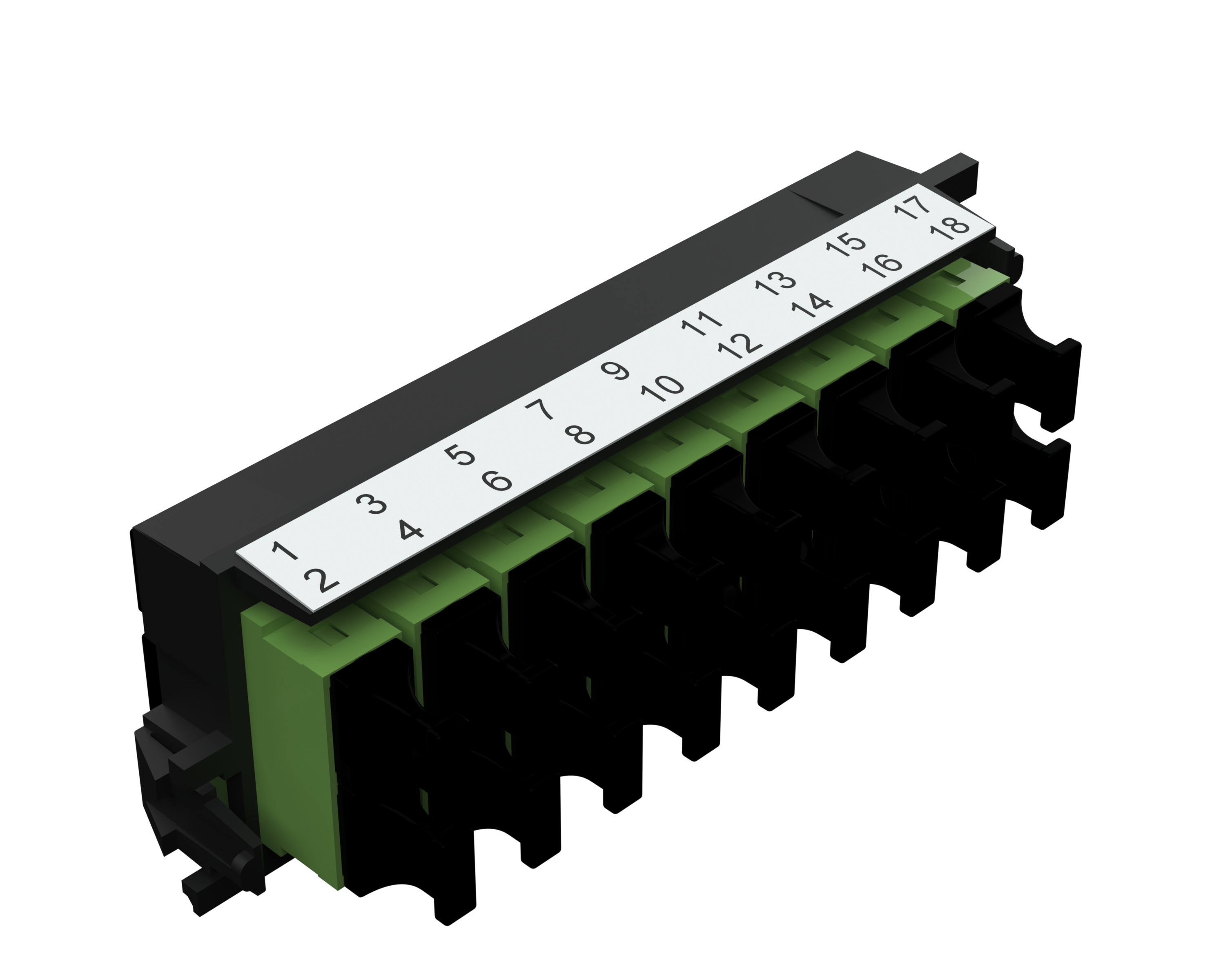

FF3H18MP

FX UHD Frame OM3 18 Ports

FF3H18MP
FX UHD FRAME, OM3, 18 PORTS, MPO KEY UP/KEY DOWN, AQUA ADAPTERS
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Environmental Space

Indoor

Suitable Applications

FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers

Construction
Fiber Cable Construction
Fiber Type
OM3

Weight

0.500 lbs

Height

1.5 in

Width

4.460 in

Length

2.200 in
Mechanical Characteristics
Mechanical Tests
Description
Temperature Range

Operating Temperature Range

-10°C to 60°C

Storage Temperature Range

-40°C To +75°C

Product Material
Materials
Description Material Color Type
Frame Plastic - UL94V-0 Black
Front Connector Body Plastic - UL94V-0 Aqua MPO Adapter
Adapter Sleeve Zirconia-Ceramic
Standards

MII Order #39 (China RoHS)

EUP 50

Related Part Numbers

Related Parts

FX ULTRA Rack-Mount and Wall-Mount Patch Panels

Product Notes

Packaging

Individually packaged in a plastic bag, Shipped in cardboard box (60/box)

Notes

For additional information please refer to product buletin PB500, or visit our web site at http://www.belden.com

History

Update and Revision

Revision Number: 0.21 Revision Date: 02-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Connector Type Port Count
FF3H18MP Aqua MPO Up/Down 18 Port
