Product Number: KCONN Angled PP 48 1U
AX104600-KeyConnect Angled Patch Panel 48 Port, 1U
KeyConnect Angled Patch Panel, 48-port, 1U, Empty
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Compatible with REVConnect and KeyConnect Modular Jacks and Couplers ONLY that are suitable for use with Belden IBDN Systems 10GX, 4800, 2400 and 1200. |
|---|
Physical Characteristics (Overall)
|
Height |
44.450 mm |
|---|---|
|
Width |
482.600 mm |
|
Depth |
258.826 mm |
|
Port Count |
48 Port |
|
Front Connection |
Angled |
|
Packaging |
Individually packaged in a cardboard box. |
|
Weight |
0.567 kg |
Connectors
Materials
| Description | Material |
|---|---|
| Panel | Steel |
Construction and Dimensions
|
Max Capacity |
48 connectors |
|---|
Temperature Range
|
Installation Temperature Range |
-10°C To +60°C |
|---|---|
|
Storage Temperature Range |
-40°C To +70°C |
|
Operating Temperature Range |
-10°C To +60°C |
Mechanical Characteristics
|
Footprint/Type |
KeyConnect |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
Flammability, LS0H, Toxicity Testing
|
Safety Listing |
ACA, c(UL)us Listed |
|---|
Related Part Numbers
|
Related Parts |
Compatible with 10GX, CAT6+ and CAT5E KeyConnect Modular Jacks and Modular Couplers ONLY. |
|---|
Product Notes
|

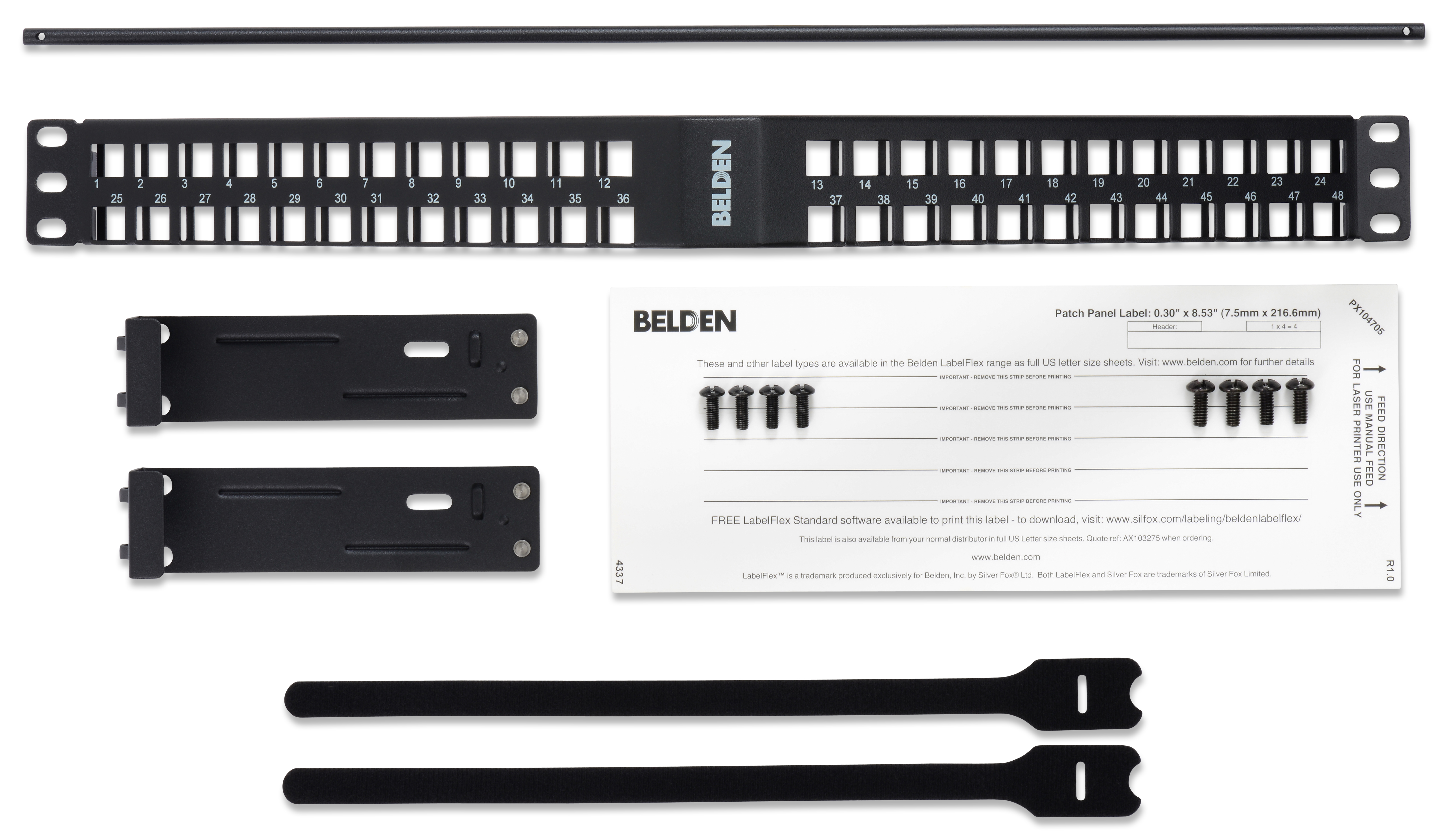

Included Parts |
4 Screws (10x32); 4 Screws (12x24); 2 Velcro Straps; 2 Rear Cable Management Bracket, 1 Cable Management Bar |
|---|
History
|
Update and Revision |
Revision Number: 0.262 Revision Date: 11-19-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.262 Revision Date: 11-19-2024 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| AX104600 | Black | 611589066969 |
