Product Number: KCONN PP Flat 72 2U
AX103116-KeyConnect Patch Panel Flat 72 Port, 2U
KeyConnect Patch Panel, 72-port, 2U, Empty
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800, 2400 and 1200. |
|---|
Physical Characteristics (Overall)
|
Height |
88.9 mm |
|---|---|
|
Width |
482.600 mm |
|
Depth |
33.020 mm |
|
Port Count |
72 Port |
|
Front Connection |
Flush |
|
Packaging |
Individually packaged in a cardboard box. |
|
Weight |
0.816 kg |
Connectors
Materials
| Description | Material |
|---|---|
| Panel | Steel |
Construction and Dimensions
|
Max Capacity |
72 connectors |
|---|
Temperature Range
|
Installation Temperature Range |
-10°C To +60°C |
|---|---|
|
Storage Temperature Range |
-40°C To +70°C |
|
Operating Temperature Range |
-10°C To +60°C |
Mechanical Characteristics
|
Footprint/Type |
KeyConnect |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
Flammability, LS0H, Toxicity Testing
|
Safety Listing |
ACA, Bi-national Standard Listed |
|---|
Related Part Numbers
|
Related Parts |
Compatible with 10GX, CAT6+ and CAT5E REVConnect and KeyConnect Modular Jacks as well as KeyConnect Multimedia Modules. |
|---|
Product Notes
|
Included Parts |

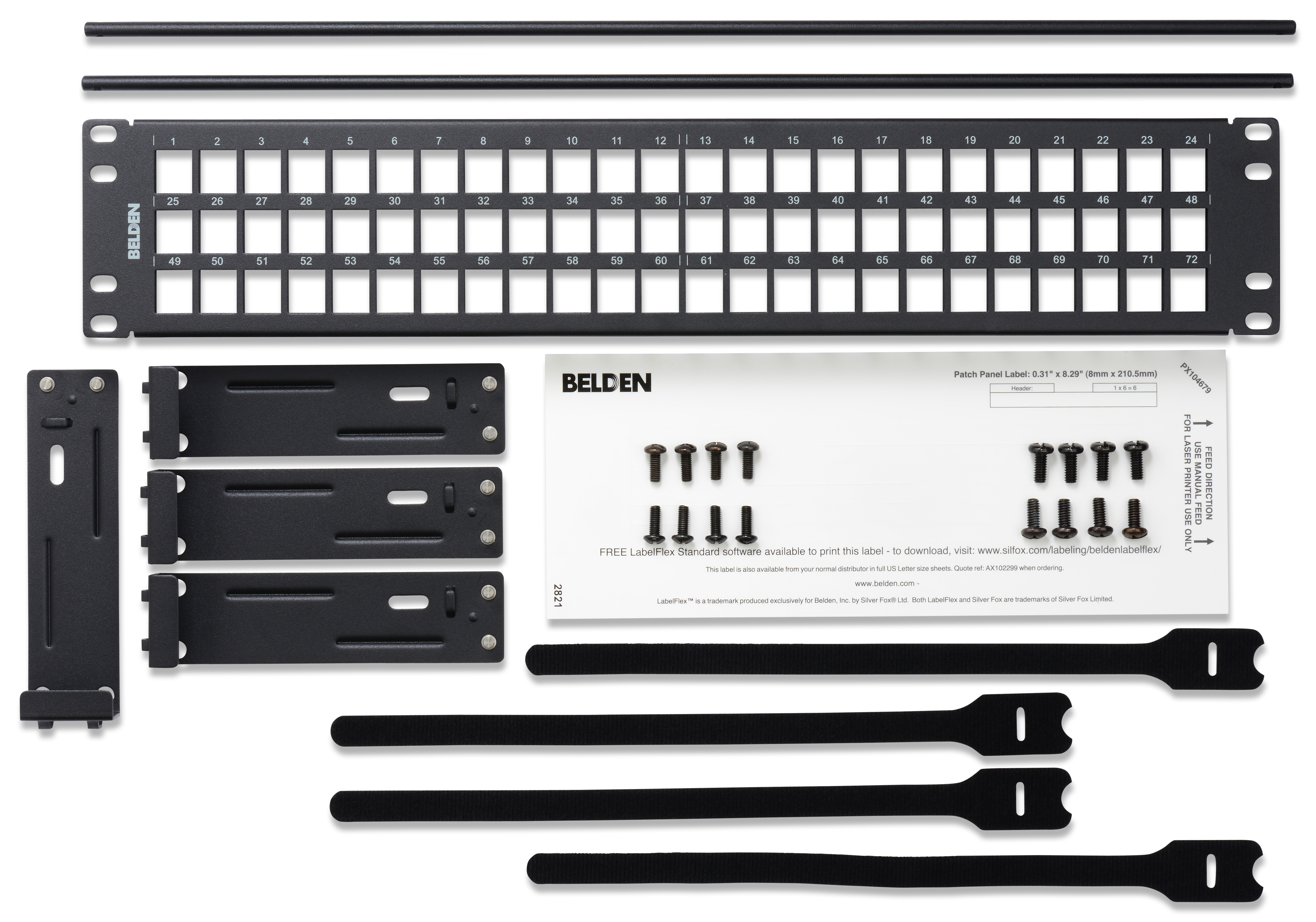

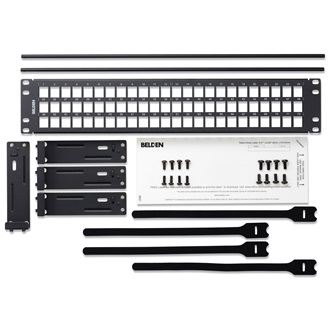

8 Screws (10x32); 8 Screws (12x24); 4 Label Holders; 1 Printable LabelFlex Half-Sheet; 4 Velcro Straps; 4 Rear Cable Management Brackets; 2 Management Bars; 1 Installation Guide |
|---|---|
|
Notes |
For proper installation refer to Installation Guide PX104691 included with the product |
History
|
Update and Revision |
Revision Number: 0.256 Revision Date: 11-19-2024 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.256 Revision Date: 11-19-2024 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| AX103116 | Black | 611589033930 |
