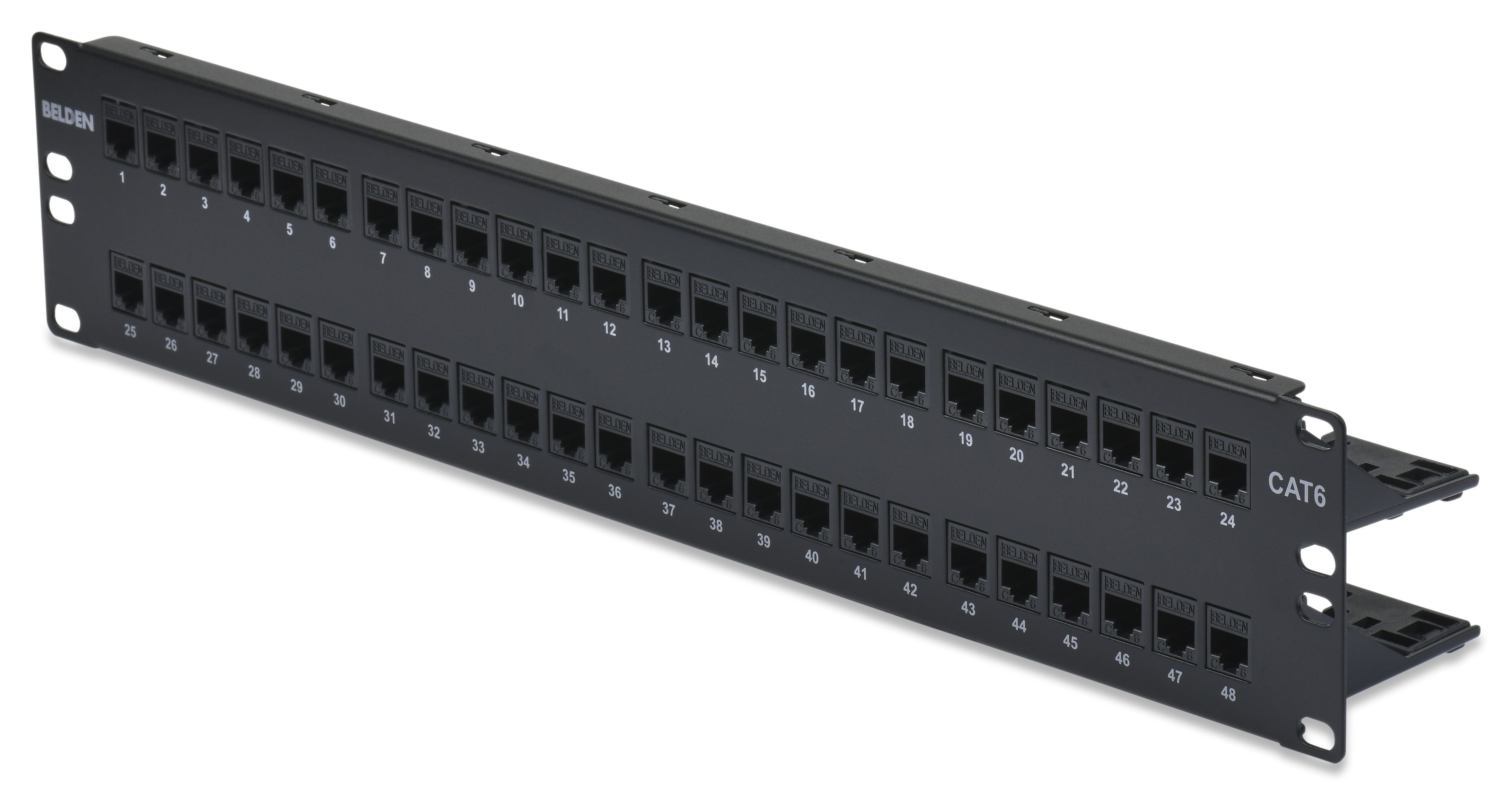

CAT6 DataConnect Panel 48P

DC5PPF2U48-CAT6 DataConnect Patch Panel, UTP, 48 Port

...
CAT6 DataConnect Patch Panel, UTP, Flat, 48-Port, 2U (Preloaded)
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Ethernet 10/ 100/ 1000BASE-T, 2.5G/ 5GBASE-T

Physical Characteristics (Overall)

Height

2.96 in

Width

19.000 in

Depth

2.960 in

Port Count

48 Port

Front Connection

Flush

Packaging

Individually packaged in a cardboard box.

Weight

3.400 lbs
Connectors
Materials
Description Material Color
Panel Steel Black
Management Bar Steel/Plastic Black
Construction and Dimensions

Max Capacity

48 connectors (preloaded)

Electrical Characteristics

Dielectric Strength

1,000 V RMS @ 60 Hz for 1 minute

Current Rating

1.500 A

Insulation Resistance

500 M-Ohm Minimum

Termination Resistance

2.5 mOhm

Temperature Range

Installation Temperature Range

-10°C To +60°C

Storage Temperature Range

-40°C To +70°C

Operating Temperature Range

-10°C To +60°C

Mechanical Characteristics

Footprint/Type

DataConnect

Tool Compatibility

Belden 110 Connecting Tool (AX100749), MediaFlex Termination Station (AX101852), Belden Rapid TerminationTool (AX105566)

Plug /Jack Compatibility

RJ45

Cable/Connector Retention

11.25 lbs

Connector/Hardware Retention

20 lbs

Plug/Connector Retention

11.250 lbs
Standards

UL Rating

UL94V-0

ISO/IEC Compliance

IEC 60603-7

Data Category

Category 6

TIA/EIA Compliance

ANSI/TIA 1096-A (formerly FCC Part 68-F)

IEEE Compliance

IEEE 802.3at type 1 and 2 (PoE) up to 30W, IEEE 802.3bt type 3 and 4 (PoE) up to 100W, CISCO (UPOE) up to 60W, Power over HDBaseTTM (POH) up to 100W

Other Standards

ANSI/TIA 1096-A (formerly FCC Part 68-F)
Applicable Environmental and Other Programs

Environmental Space

Indoor

EU Directive 2011/65/EU (RoHS 2)

Yes

MII Order #39 (China RoHS)

EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing

c(UL)us Listed, UL 1863, UL File E77103

Related Part Numbers

Related Parts

DataConnect CAT5 Modular Jacks, DataConnect CAT5 Modular cord

Product Notes

Included Parts

8 Screws (12x24); 2 Printable Label Half-Sheets; 4 Velcro Straps; 2 Rear Cable Support Bars, 1 Installation Guide, 48 Protective Caps

Notes

For proper installation refer to Installation Guide PX106898 included with the product

History

Update and Revision

Revision Number: 0.39 Revision Date: 11-19-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type UPC
DC6PPF2U48BK Black 2U 611589249232
