Product Number: KEYCONNECT SG FACEPLATES

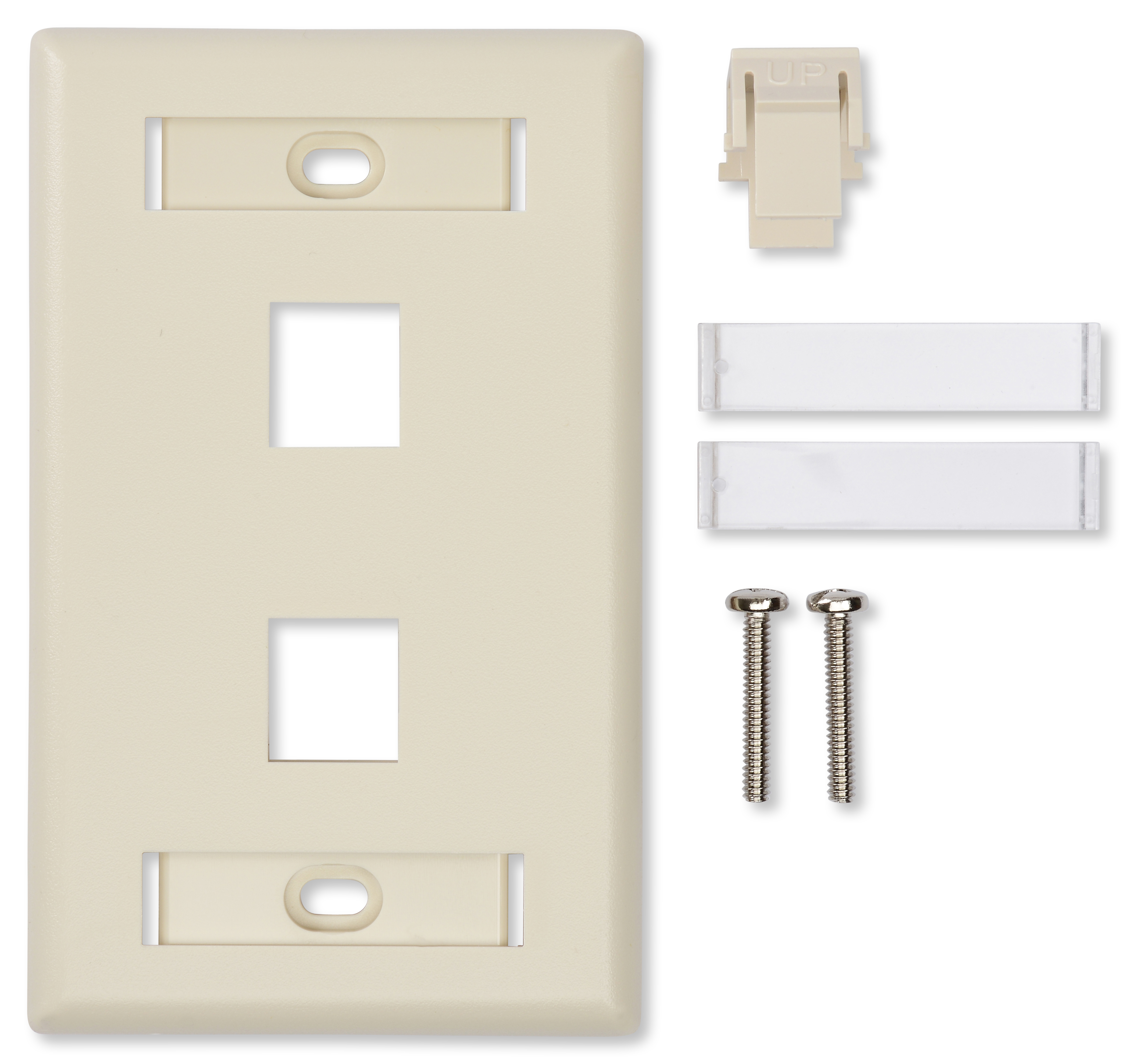

KeyConnect Single-Gang Faceplate

KeyConnect Faceplate, Single Gang, Flush, Compatible with KeyConnect style modular jacks

  • Availability:
    Global
  • Status:
    Active
KEYCONNECT SG FACEPLATES
  • KEYCONNECT SG FACEPLATES
1 of 1

Specifications

Expand All

Suitable Applications

Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800, 3600, 2400, 1200, fiber and coax

Overall Height

4.51 in

Overall Width

2.76 in

Depth

0.44 in

Front Connection

Flush

Packaging

Individually packaged in a plastic bag.

Weight

0.06 kg

Materials

Material
Plastic - UL94V-0

Installation Temperature Range

-10 to 60°C

Storage Temperature Range

-40 to 70°C

Operating Temperature Range

-10 to 60°C

Connector System Compatibility

KeyConnect

Connector/Hardware Retention

20 lbs

Environmental Space

Indoor

EU Directive 2002/95/EC (RoHS)

Yes

MII Order #39 (China RoHS)

EUP 50

Safety Listing

Bi-national Standard Listed

Related Parts

Compatible with KeyConnect-style Modular Jacks 10GX, CAT6+, CAT5E and KeyConnect-style Fiber and Coax Connectors

Included Parts

6-32 screw, carton label, clear window

Notes

For proper installation refer to Installation Guide PX103826. Visit our web site at http://www.belden.com

Update and Revision

Revision Number: 0.425 Revision Date: 10-27-2025

Update and Revision

Revision Number: 0.425 Revision Date: 10-27-2025


Report An Error

Part Numbers

Item # Color Port Count
AX102248 Almond 4 Port
AX102250 Almond 6 Port
AX103922 Almond 1 Port
AX103923 Almond 2 Port
AX103924 Almond 3 Port
AX104160 Black 1 Port
AX104161 Black 2 Port
AX104162 Black 3 Port
AX104163 Black 4 Port
AX104164 Black 6 Port
AX104464 Dark Gray 4 Port
AX102249 Electric White 4 Port
AX102251 Electric White 6 Port
AX102660 Electric White 1 Port
AX102661 Electric White 3 Port
AX104197 Ivory 2 Port
AX104198 Ivory 4 Port
AX104199 Ivory 6 Port
AX104565 Ivory 1 Port
